Obsidian Plus Coach & Official Replay Shared / 10AC3M2MDNHGR1WS1BS-6P3RP-3WT2WBU-CORSHM

The team will carry a Platinum Plus on the road. Please refer to the linked knowledge base article for reference. Take the following equipment from your home kit for use on the road:

• SCH-CoachBox-WiFi access point "bunny" for the iPads in the coach room
• SCH-Sideline-WiFi access point "rectangle bunny" for the iPads on the sideline
• 3 RCKs - remote camera kits

Obsidian Plus Coach & Official Replay Shared 10AC3M2MDNHGR1WS1BS-6P3RP-3WT2WBU-CORSHM

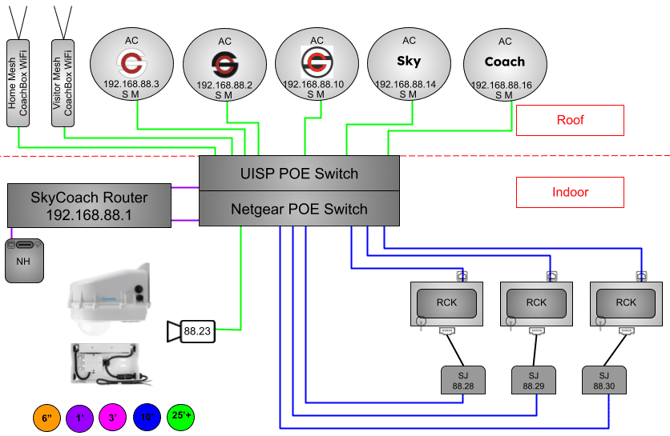

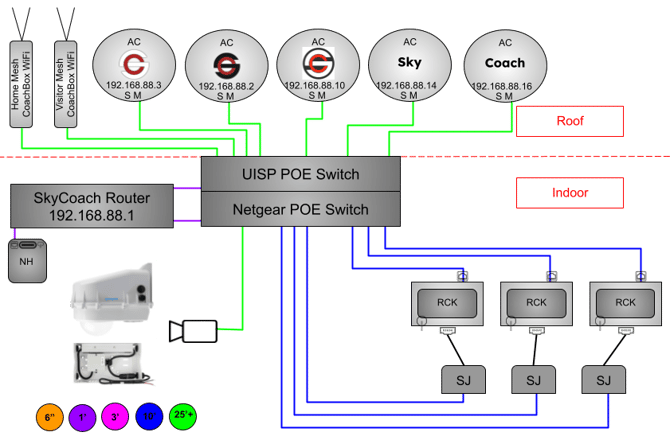

Film Room:

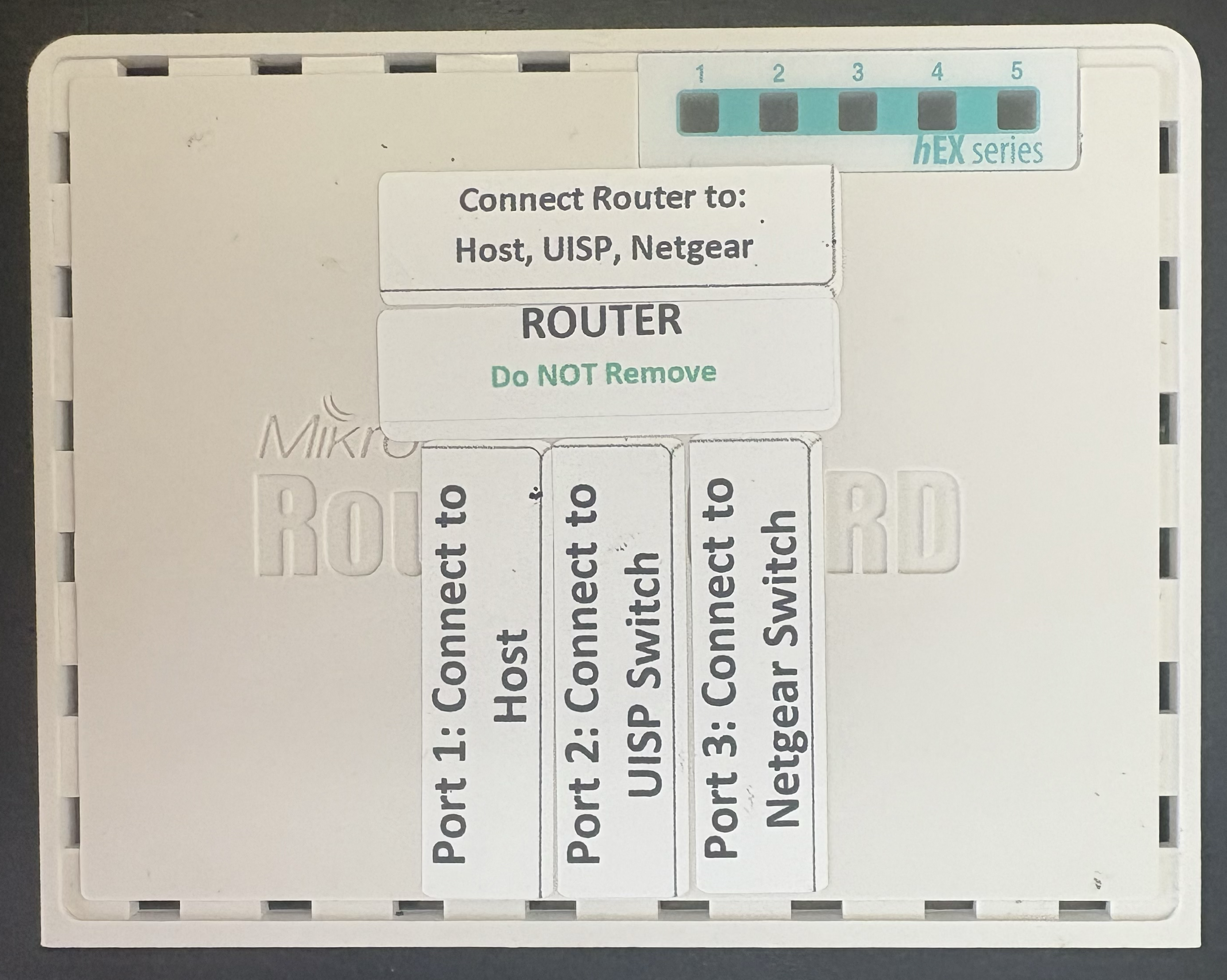

The SkyCoach Router will connect to the following:

• Nuc Host
• UISP Switch
• Netgear Switch

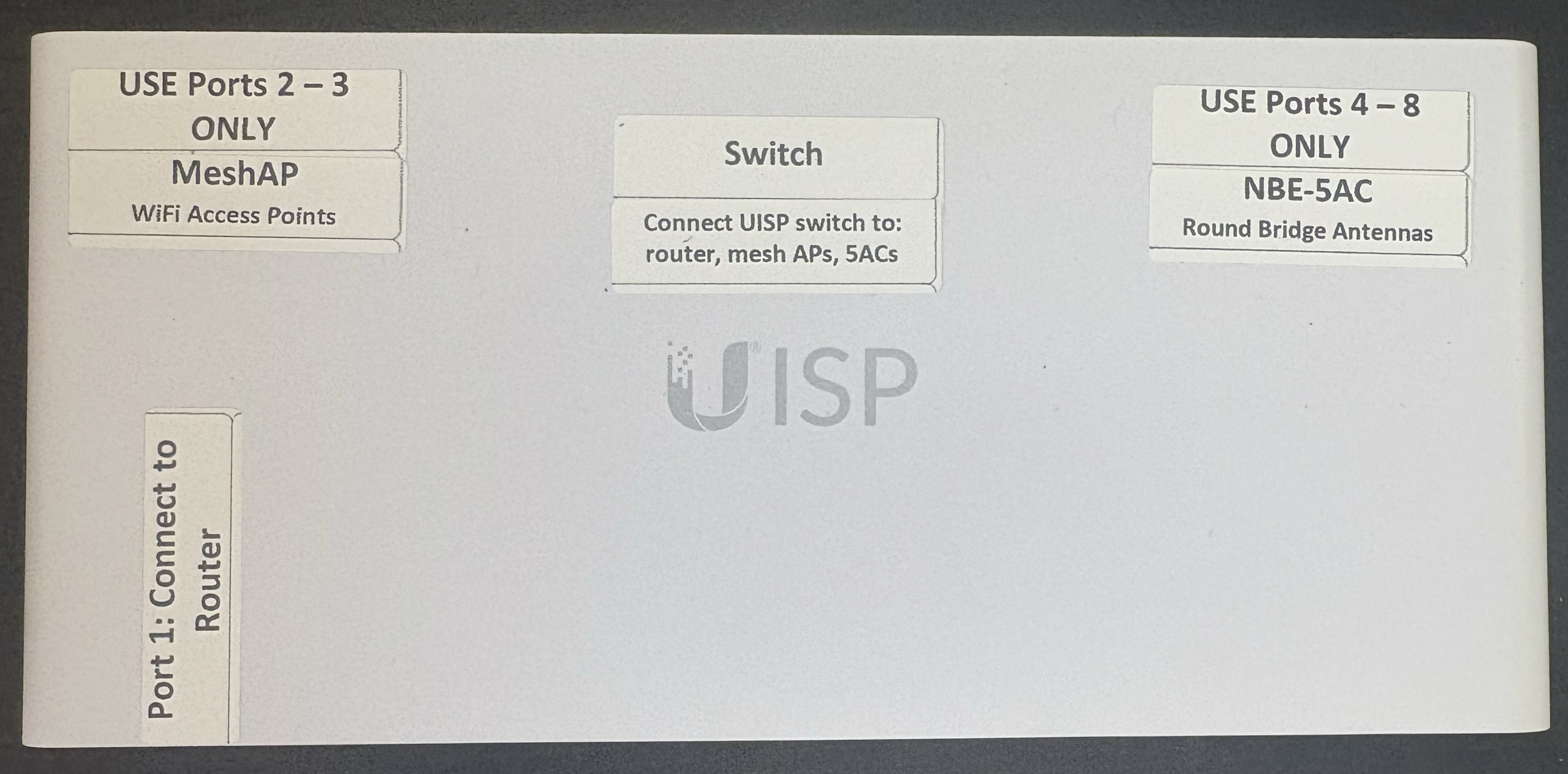

The UISP Switch (white) connects to the following with CAUTION due to power settings on each port:

• port 1 to router
• ports 2 - 3 to the Mesh access points (sc-coachbox-wifi bunny ear antennas)
  • place each antenna in the respective coach room
• ports 4 - 8 to the AC bridge antennas (round antennas with SkyCoach logos - RB, RW, RWB, SKY, COACH)
  • place antennas on the roof paying close attention to the angle

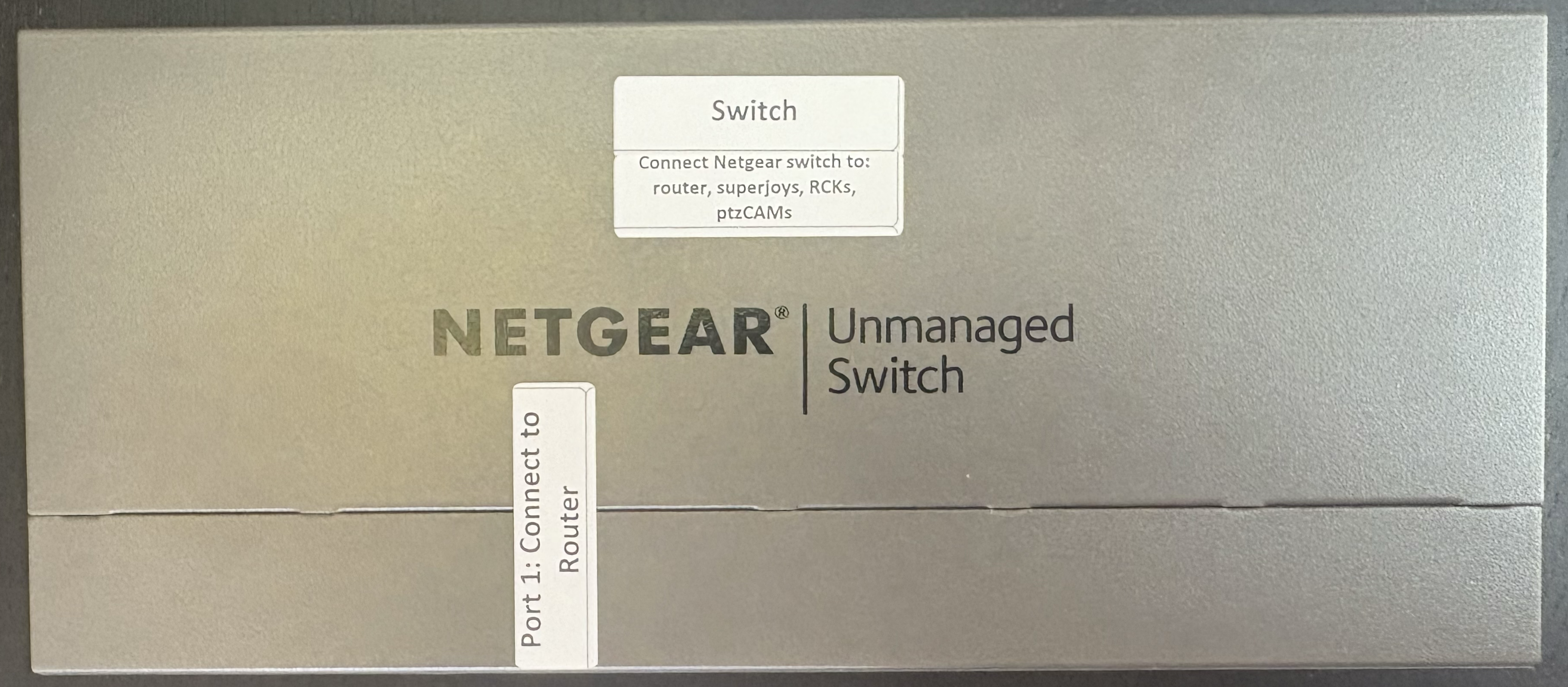

The Netgear Switch (black) connects to the following in any order:

• port 1 to router
• 3 RCKs

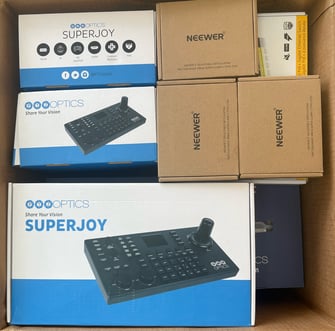

• 3 superjoy controllers
  • do not use the included ac adapters as power is provided over ethernet from the netgear switch
• 1 ptz optics camera
  • do not use the included ac adapters as power is provided over ethernet from the netgear switch

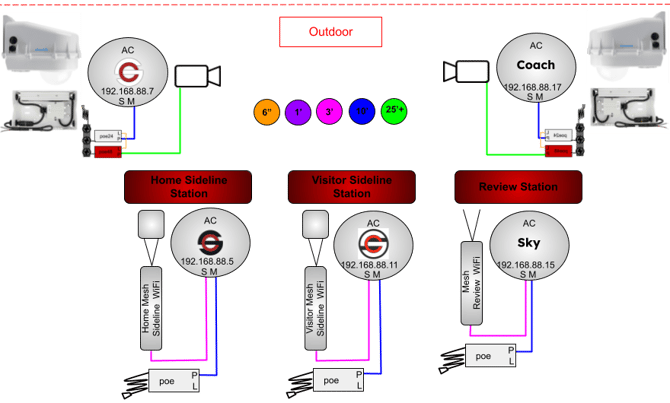

Outdoor :

The two endzone stations require 2 power outlets each. One for the powerbox ultra that powers the AC antenna and the IP camera, and one for the camera enclosure power supply. The camera enclosure is powered by the included power supply, KT-CDR2-AC.

WARNING: The powerbox ethernet labeled with the red and yellow warning sticker is 48V and should ONLY be used for the ptz optics IP camera!

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 bridge antenna, 1 mesh access point with UMAD, 1 power supply (repeat for home and visitor)

You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
    • SCH-Sideline-XXXXX for the home sideline iPads
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
    • SCV-Sideline-XXXXX for the visitor sideline iPads
• 1 powertube

TOP

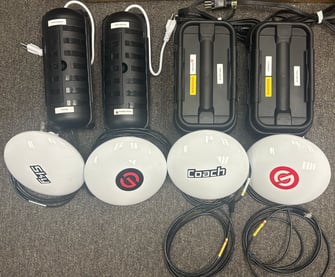

3 POWER SUPPLY types for this model:

Powertube

• Powertube with 1 white POE injector

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

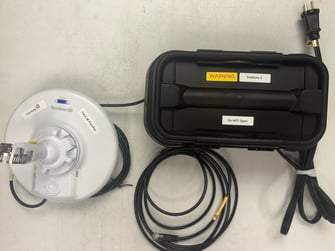

Powerbox ULTRA

• 1 white 24V POE injector

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the main port on the round antenna

• 1 white 48V POE injector
  • The red POE48 port on the injector uses an ethernet cable to connect to the IP camera
• The LAN ports on the injectors connect to each other with a 6" ethernet
• The cables crossover to exit

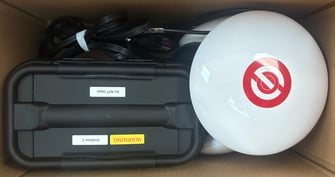

Equipment shipped in two boxes

WARNING: The powerbox has an ethernet cable labeled with a red and yellow warning sticker. It is 48V and should ONLY be used to power the ptz optics IP camera!
