PARTS:

• Home Kit

  • 6 stations: Review, Camera, EndZone, Home/Visitor CoachBox, Home Sideline, Visitor Sideline
  • Nuc Host, Green Gigabit Router, Green Gigabit Switch
  • 10 AC Bridge Antennas: RB, RW, RWB, BW, COACH
  • 1 Mesh Review AP for officials
  • 2 Mesh CoachBox APs
  • 2 Mesh-UMAD Sideline APs
  • 5 Remote Camera Kits
  • 1 Powertube
  • 6 Switchboxes
• Travel Kit

  • 3 stations: PressBox, Sideline, EndZone
  • NUC Host, Green Gigabit Router
  • 4 AC Bridge Antennas: RB, RW (from home kit)
  • 1 Mesh CoachBox AP (from home kit)
  • 1 Mesh-UMAD Sideline AP (from home kit)
  • 2 Remote Camera Kits (from home kit)
  • 1 home coachbox switchbox (from home kit)
  • 1 home sideline switchbox (from home kit)
  • 1 powertube

HELPFUL LINKS:

• Setup Instructions
• Diagram Part 1 & Diagram Part 2
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success



Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your home kit model# 10AC3M2MDNHGRGS-6P5RP-1WT6SB-CORSH
• Your home kit style is a Obsidian Plus 5 Coach & Official Replay Shared
• This is your travel kit model# 4AC1M1MDNHGR-3P2RP-1WT2SB-CR
• Your travel kit style is a Platinum Coach Replay

TOP

Home Kit



Obsidian Plus 5 Coach & Official Replay Shared

10AC3M2MDNHGRGS-6P5RP-1WT6SB-CORSH



HOST BOX (brains)

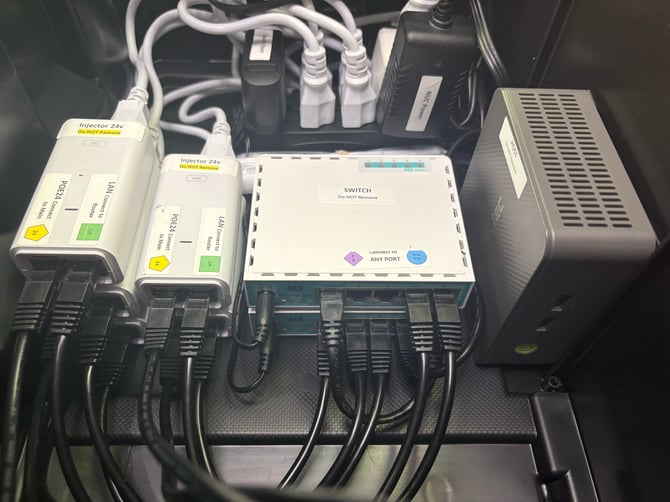

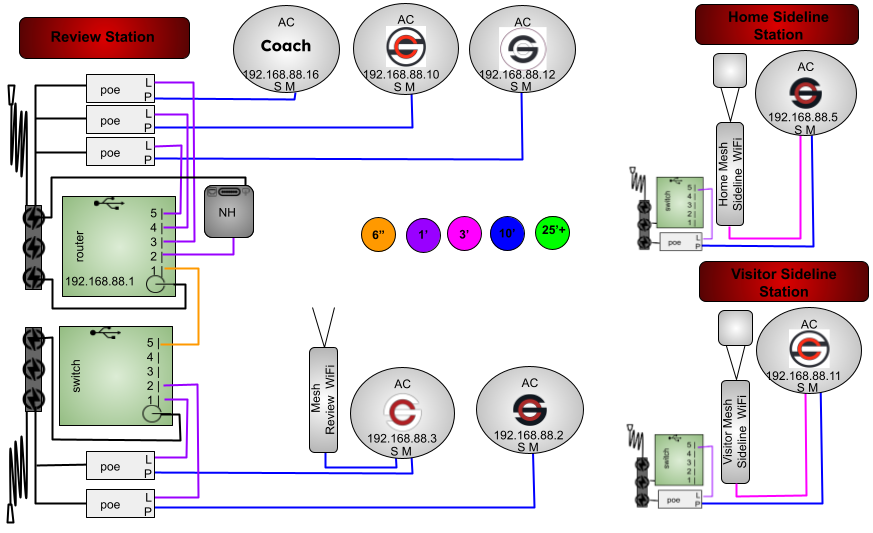

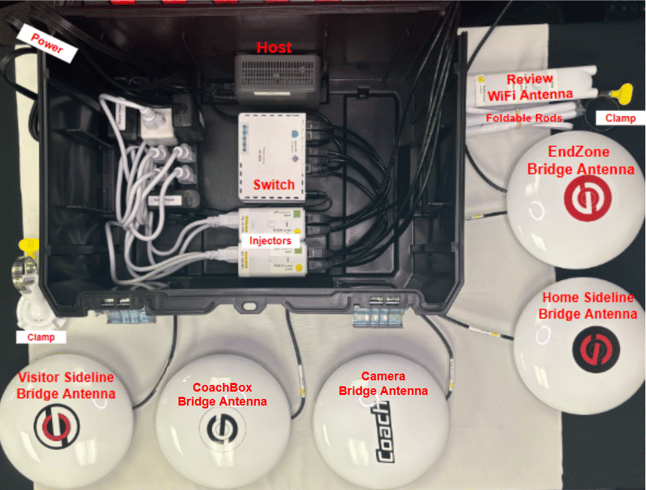

REVIEW STATION: 1 host box, 5 bridge antennas, 1 mesh access point

You will need 2 power outlets to power the host box. The 5 round antennas will mount to one of your stands and point at the field as indicated by their labels.

* The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the official's iPad and will ensure fastest download speeds when placed in the tent. Attach the foldable rods to the top of the mesh antenna and place it in the tent.

• 1 green gigabit router
  • 1 AC black/white stickered antenna to bridge to the Home&Visitor CoachBox Station
  • 1 AC COACH stickered antenna to bridge to the Camera Station
  • 1 AC RW stickered antenna to bridge to the Camera Station
    • 1 Mesh Review-WiFi antenna to connect to devices for officials
      • SC-Review-XXXXX for the review tent
  • 1 NUC host server

• 1 green gigabit switch
  • 1 AC red/black stickered antenna to bridge to the Home Sideline Station
  • 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station

TOP



STATION BOX (field equipment)



SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox (repeat for home and visitor)



You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
    • SCH-Sideline-XXXXX with switchbox for the home sideline iPads

• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
    • SCV-Sideline-XXXXX with switchbox for the visitor sideline iPads

• 2 Switchboxes

TOP

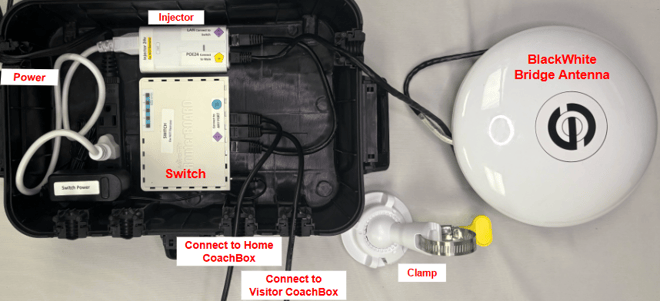

COACHBOX STATION: 1 bridge antenna, 2 mesh access points, 3 switchboxes

You will need 1 power outlet for each power supply. Mount the round antenna to one of the stands and place it with a clear and straight line of sight to the matching antenna at the review tent.



• 1 AC black/white stickered antenna at the coach booth to bridge to the review tent
• 1 switchbox

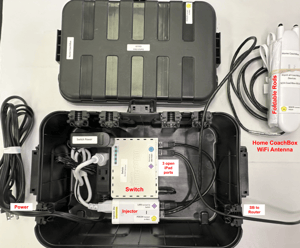

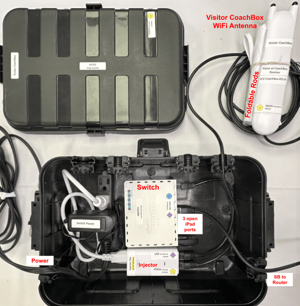

Home/Visitor coachbox switchboxes are connected to the CoachBox Station

There are two switchboxes with your equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.

Use a long ethernet cable to run from the switch in your coachbox station to any port on your Home/Visitor CoachBox switch.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.



• • 1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room
    • SCH-CoachBox-XXXXX with switchbox for the home coach booth
  • 1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room
    • SCV-CoachBox-XXXXX with switchbox for the visitor coach booth
  • 2 switchboxes

TOP

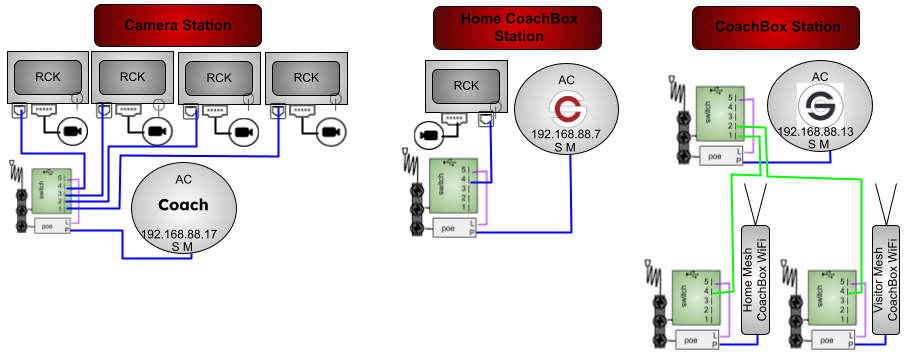

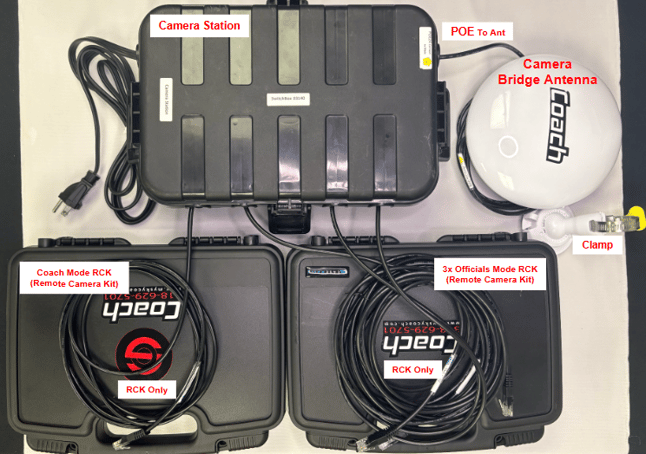

CAMERA STATION: 1 bridge antenna, 4 RCKs, 1 switchbox

You will need 5 power outlets: one for the switchbox and 4 to power the RCKs. The round antenna will point at the matching host box antenna at the review tent as indicated by the label.

You can mount the COACH stickered round bridge antenna to one of the stands or camera stand.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding windowsills, posts, and fencing.

• 1 AC COACH stickered antenna to bridge to the review tent
• 4 ethernet cables for your RCKs
• 1 switchbox

TOP



END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
  • 1 ethernet cable for your RCK
• 1 powertube

TOP



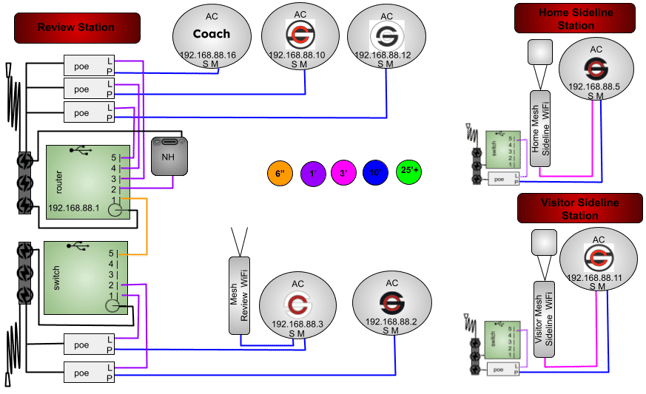

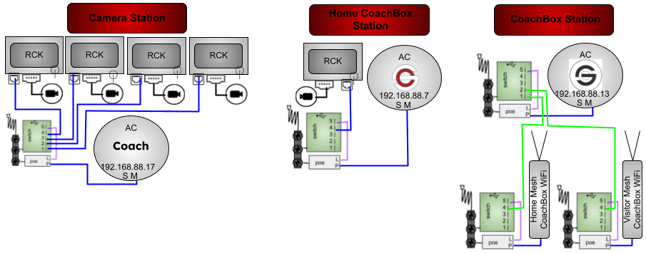

Obsidian Plus 5 Coach & Official Replay Shared

10AC3M2MDNHGRGS-6P5RP-1WT6SB-CORSH

TOP

Travel Kit

You will take parts from the home kit to use with your travel kit. Travel kit is fully packed when your equipment arrives.



• Travel Kit# 03140T

  • Take the red/black and red/white antennas from the home kit host box
    • Antennas labeled PressBox/Review will attach to POE24 ports in the travel host box
  • Take the red/black home sideline station with switchbox from the home kit
    • Don't forget the UMAD for the "rectangle bunny"
  • Take the red/white end zone station with powertube from the home kit
  • Take the home coachbox switchbox with home coach bunny
    • Use long ethernet to run from the host box router to the switch in the home coachbox switchbox
    • Place home coachbox "bunny" in the room with the coaches



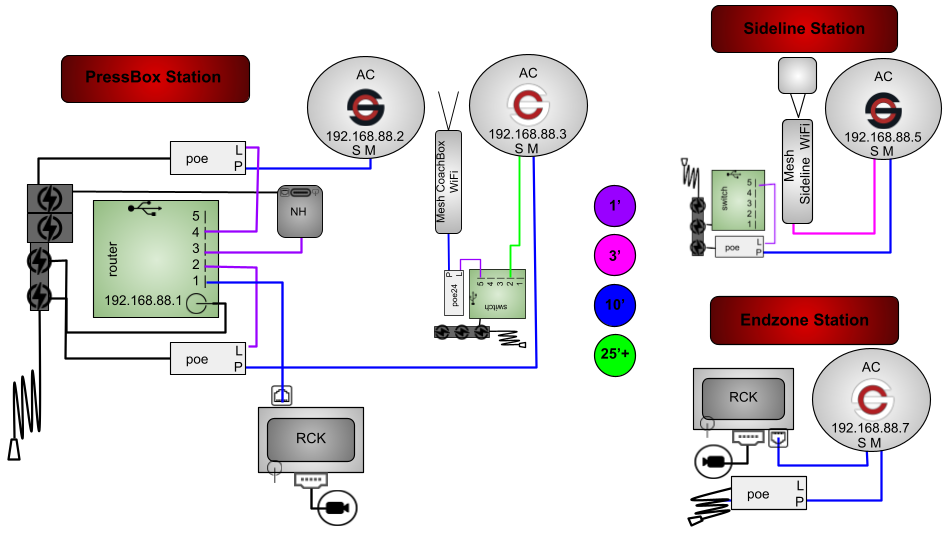

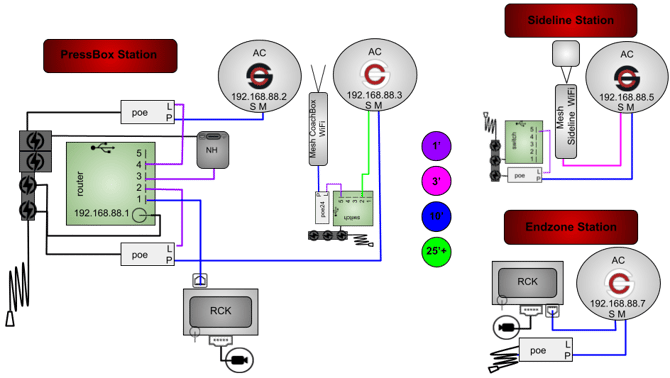

Platinum Coach Replay

10AC3M2MDNHGR-3P2RP-1WT2SB-CR



HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 2 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.

• 1 AC red/black stickered antenna to bridge to the Sideline Station
• 1 AC red/white stickered antenna to bridge to the EndZone Station
  • 1 Mesh CoachBox-WiFi antenna & 1 switchbox to connect to devices in the press box
    • SC-CoachBox-XXXXX with switchbox for the home coach booth

• 1 ethernet cable for your RCK

• 1 green gigabit router

• 1 Nuc host server

Coach room switchbox is connected to the PressBox Station

There is one switchbox for the home coachbox. It will be powered in the coach room.

Use a long ethernet cable to:

1) run from host box router to any port on your CoachBox switch

2) run from the LAN2 port on your red/white round bridge antenna to PORT 1 on your CoachBox switch

* The LAN2 port on your red/white bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

[photo shows coach room switchbox connected to LAN2 port instead of host box router]



*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds when placed in the coach room.

TOP



STATION BOX (field equipment)

SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox

You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices.  This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

[fix pic - switchbox not switchbox-fiber]

• 1 AC red/black stickered antenna to bridge to pressbox and power the
  • 1 Mesh-UMAD Sideline-WiFi antenna that connects to devices on the sideline
    • SC-Sideline-XXXXX with switchbox for sideline iPads
• 1 switchbox

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK,  1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox

  • 1 ethernet cable for your RCK

• 1 powertube

TOP

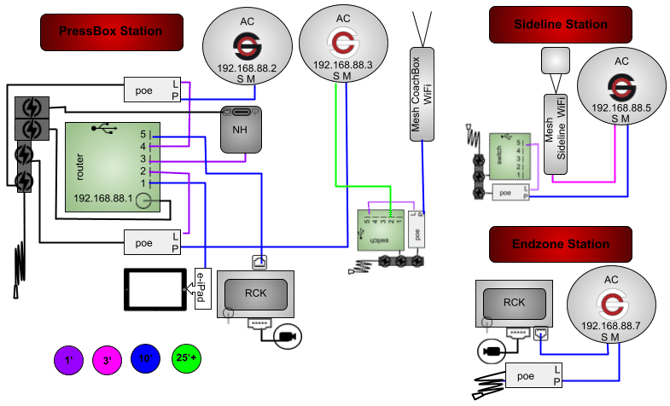

Platinum Coach Replay

4AC1M1MDNHGR-3P2RP-1WT2SB-CR

TOP



2 POWER SUPPLY types for these models:

Powertube

• 1 white POE injector
  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

TOP

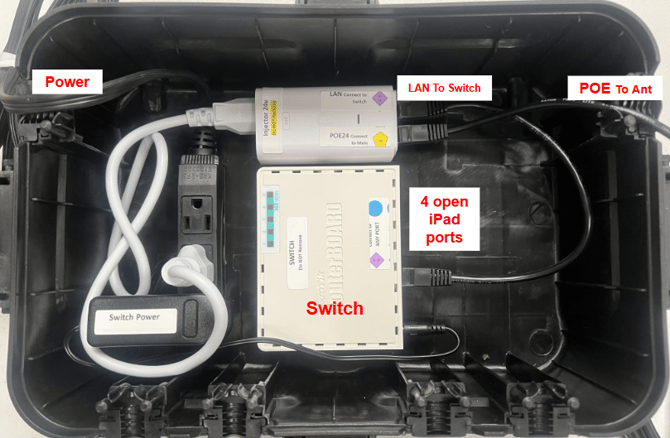

Switchbox

• 1 white POE injector

  • LAN connects to switch
  • The red POE24 port on the injector uses a 10' ethernet to connect the main port on a round antenna or mesh antenna
    • The LAN2 port on the round antenna then remains empty OR connects to the mesh-UMAD that produces the SC-Sideline-WiFi antenna with rectangular directional booster

• 1 green switch

  • The open switch ports can be left empty OR used to hardwire iPads to the network using an ethernet adapter
• The cables exit through designated slots

TOP



RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
