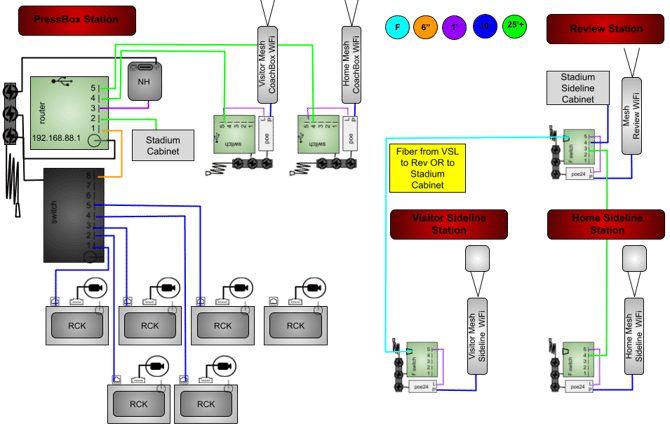

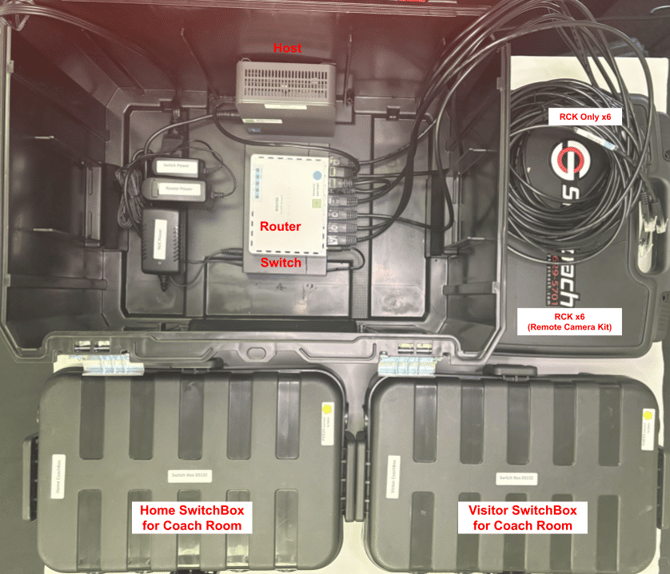

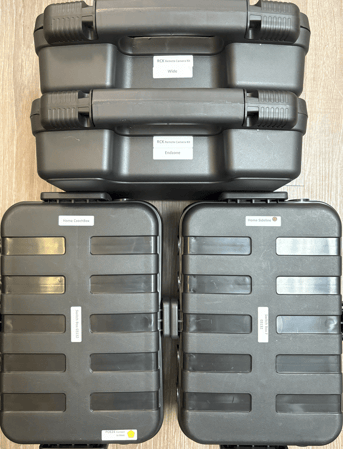

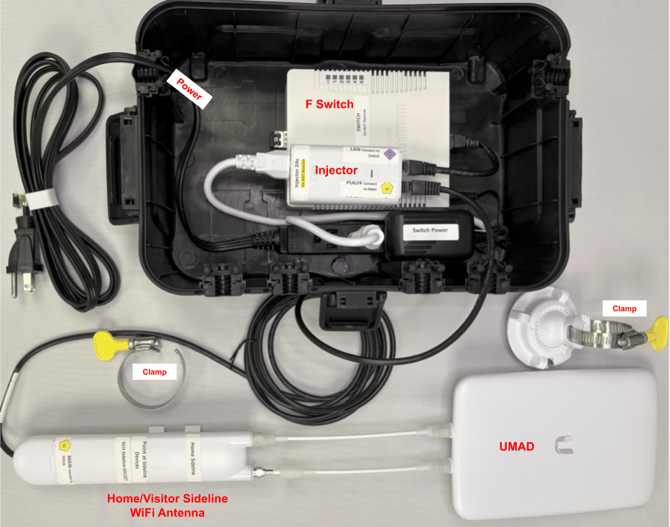

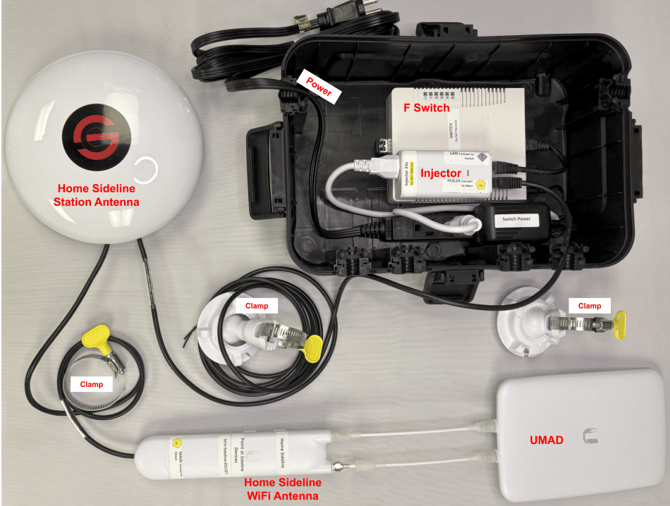

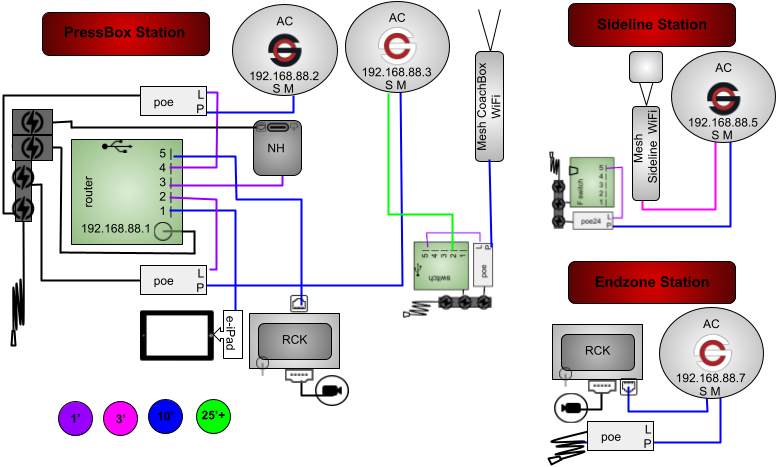

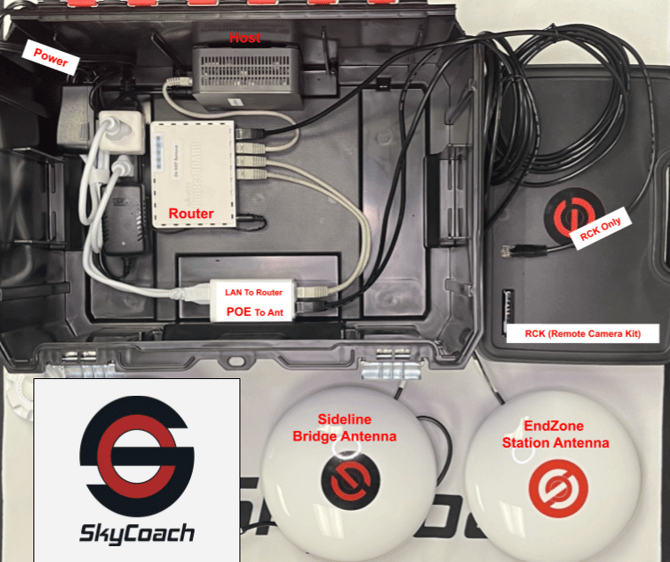

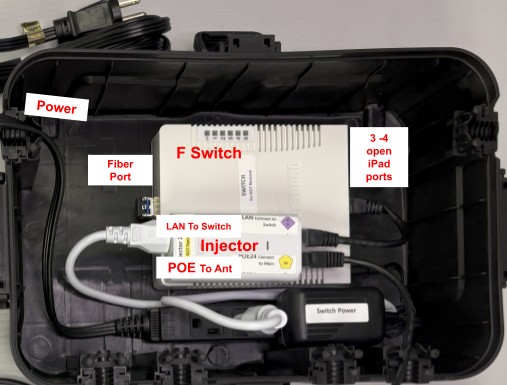

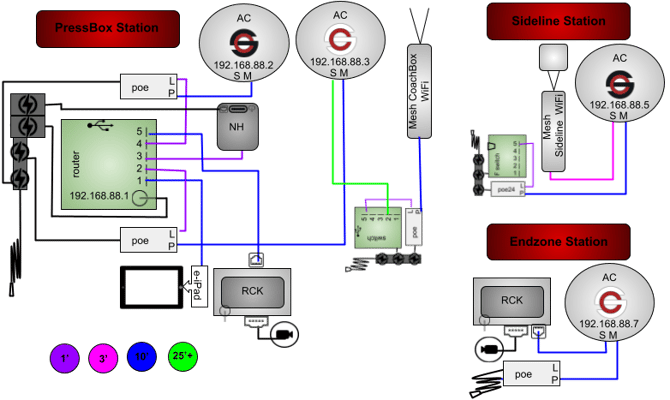

--- title: Diamond Plus 6 Coach & Official Replay Shared / 3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH description: The kit has 4 stations and 6 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox. They will use parts of the home kit with their travel kit for out of conference games. --- [Skip to content](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#main-content) [![SkyCoach\_Main\_BlackandRed](https://help.myskycoach.com/hs-fs/hubfs/SkyCoach_Main_BlackandRed.png?width=206&height=50&name=SkyCoach_Main_BlackandRed.png)](https://myskycoach.com) Open main navigation Close main navigation How can we help you? - There are no suggestions because the search field is empty. 1. [Help Center](https://help.myskycoach.com/?hsLang=en) 2. [Kits, Models, and Packages](https://help.myskycoach.com/kits-models-and-packages?hsLang=en) 3. [M Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#m-models) # Diamond Plus 6 Coach & Official Replay Shared / 3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH ## The kit has 4 stations and 6 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox. They will use parts of the home kit with their travel kit for out of conference games.   **PAGE SHORTCUTS: ** - [HOME KIT](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#homeKit), [TRAVEL KIT](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#travelKit) - HOME: [Host Box](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#HostBox), [Station Box](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#StationBox)  - [Power Supply](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#powerSupply) - [RCK (Remote Camera Kit)](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck) - [Diagram Home Kit](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#diagram-CORSH)  - [Diagram Travel Kit](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#diagram-CR) - [Training Link](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#training) - [QR & Overview](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#QRandOverview) **PARTS: ** - [Home Kit](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#homeKit) - 4 stations: [PressBox](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#pressboxStation), [Home Sideline](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#sidelineStation), [Visitor Sideline](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#sidelineStation), [Review](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#reviewStation) - NUC Host, Green Gigabit Router, Black Switch - 1 Mesh Review AP for officials - 2 Mesh CoachBox APs - 2 Mesh-UMAD Sideline APs - 6 [Remote Camera Kits](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck) - 2 [switchboxes](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) - 3 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) - [Travel Kit](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#travelKit) - 3 stations: [PressBox](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#pressboxStation-CR), [Sideline](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#sidelineStation-CR), [EndZone](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#endzoneStation-CR) - NUC Host, Green Gigabit Router - 4 AC Bridge Antennas: RB, RW - 1 Mesh CoachBox AP (from home kit) - 1 Mesh-UMAD Sideline AP (from home kit) - 2 [Remote Camera Kits](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck) (from home kit) - 1 home coachbox [switchbox](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox)(from home kit)  - 1 home sideline[switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) (from home kit) - 1 [powertube](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#powertube) **HELPFUL LINKS:** - [Setup Instructions](https://help.myskycoach.com/hubfs/ACMMDM%20Setup%20Instructions%20-%203pt%20CR.pdf?hsLang=en) - [Diagram Home Kit](https://help.myskycoach.com/hubfs/3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH.png?hsLang=en)    - [Diagram Travel Kit](https://help.myskycoach.com/hubfs/4AC1M1MDNHGR-3P2R-1WT1SB1SBF-CR.png?hsLang=en) - [Training Playlist](https://www.youtube.com/playlist?list=PLeVJdhGJMJsJW5DH5U4IDwYS2MRC3poqu) - [Pregame Checklist](https://help.myskycoach.com/pregame-checklist?hsLang=en) - [How to Tune Your Network](https://help.myskycoach.com/performance-tuning?hsLang=en) - [Keys to Success](https://help.myskycoach.com/what-are-the-keys-to-success-for-a-skycoach-event?hsLang=en) Please schedule a training session with our specialist using [THIS LINK](https://meetings.hubspot.com/renee-watkins/training). Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.  Please make note of the following: - Your **Kit#** found on the outside of your toolbox - The **username **and **password **for your app found in your SkyCoach Training email - The **wifi access codes **for your kit are found in your SkyCoach Training email - This is your **home kit model#** [3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#diagram-CORSH) - Your **home kit style** is a Diamond Plus 6 Coach & Official Replay Shared - This is your **travel kit model#** [4AC1M1MDNHGR-3P2RP-1WT1SB1SBF-CR](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#diagram-CR) - Your **travel kit style** is a Platinum Coach Replay [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) ### Home Kit ### Diamond Plus 6 Coach & Official Replay Shared ### [3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#diagram-CORSH) ### **HOST BOX** (brains)        #### **PRESS BOX STATION:** 1 host box, 6 [RCKs](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck), 2 mesh access points, 2 [switchboxes](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) You will need 7 power outlets: one to power the host box and six to power the RCKs. The RCKs should connect to the black switch. The host, 2 switchboxes, and stadium cabinet should connect the the router. Use a long ethernet cable to run from the router in your host box to the respective home/visitor coach room and connect to any port in the switchbox containing the coachbox access point. Attach the foldable rods to the top of the "skinny" mesh antenna and place it in the room with the coaches. \* The "skinny rabbit ear" mesh antenna provides the SCH and SCV-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room. #### ![HostBox - NHGR RCK, HCB-SB, VCB-SB \_labeled](https://help.myskycoach.com/hs-fs/hubfs/HostBox%20-%20NHGR%20RCK%2c%20HCB-SB%2c%20VCB-SB%20_labeled.png?width=670&height=575&name=HostBox%20-%20NHGR%20RCK%2c%20HCB-SB%2c%20VCB-SB%20_labeled.png) - 1 green gigabit router - connect to home and visitor coach room [switchboxes](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) - connect to stadium cabinet - from stadium cabinet you can connect to the review station  or connect to the review station and visitor sideline station - 1 NUC host server - 1 black switch - 6 ethernet cables for your [RCK](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck)s   #### **Home/Visitor [switchboxes](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) are connected to the [PressBox Station](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#pressboxStation-CORSH) ** There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms. Use a long ethernet cable to run from the router in your host box to any port on your Home/Visitor CoachBox switch, as pictured below.  Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches. \*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.   ![HCB-SB - GS M (open) \_labeled-1](https://help.myskycoach.com/hs-fs/hubfs/HCB-SB%20-%20GS%20M%20(open)%20_labeled-1.png?width=363&height=300&name=HCB-SB%20-%20GS%20M%20(open)%20_labeled-1.png)       ![VCB-SB - GS M (open) \_labeled-1](https://help.myskycoach.com/hs-fs/hubfs/VCB-SB%20-%20GS%20M%20(open)%20_labeled-1.png?width=294&height=300&name=VCB-SB%20-%20GS%20M%20(open)%20_labeled-1.png) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top)   ### **STATION BOX (field equipment)   ** #### **REVIEW STATION:** 1 mesh access point, 1 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) You will need 1 power outlet for the switchbox-F. The review switchbox F can be connected via ethernet or fiber: - connect to the stadium cabinet  - connect to the home sideline switchbox-F - (optional) connect to the visitor sideline switchbox-F Attach the foldable rods to the top of the mesh WiFi antenna. The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the officials and will ensure fastest download speeds when placed on the score table near the review iPad.  Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter. #### ![SwitchBoxF - w.poe, fs, rev-wifi \_labeled](https://help.myskycoach.com/hs-fs/hubfs/SwitchBoxF%20-%20w.poe%2c%20fs%2c%20rev-wifi%20_labeled.png?width=670&height=496&name=SwitchBoxF%20-%20w.poe%2c%20fs%2c%20rev-wifi%20_labeled.png) - 1 Mesh Review-WiFi antenna to connect to official's device  - SC-Review-XXXXX for the review tent - 1 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) #### **SIDELINE STATIONS:** 1 mesh-UMAD access point, 1 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) (repeat for home and visitor)  ![SwitchBoxF - wifi & umad packed](https://help.myskycoach.com/hs-fs/hubfs/SwitchBoxF%20-%20wifi%20%26%20umad%20packed.png?width=280&height=188&name=SwitchBoxF%20-%20wifi%20%26%20umad%20packed.png)     ![Sideline - MD on a stand](https://help.myskycoach.com/hs-fs/hubfs/Sideline%20-%20MD%20on%20a%20stand.png?width=47&height=250&name=Sideline%20-%20MD%20on%20a%20stand.png)You will need 1 power outlet for each sideline power supply: home and visitor. Mount the WiFi access point to one of the stands and place it at the 35 yard line facing down the sideline towards the ios devices. The home/visitor sideline switchbox-F can connect back to the review switchbox-F via ethernet or fiber; see diagrams for options. The skinny mesh antenna requires the directional booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.  Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 3-4 ethernet access points. ![SwitchBoxF - w.poe, fs, hsl-wifi, umad connected \_labeled](https://help.myskycoach.com/hs-fs/hubfs/SwitchBoxF%20-%20w.poe%2c%20fs%2c%20hsl-wifi%2c%20umad%20connected%20_labeled.png?width=670&height=528&name=SwitchBoxF%20-%20w.poe%2c%20fs%2c%20hsl-wifi%2c%20umad%20connected%20_labeled.png) - 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline - SCH-Sideline-XXXXX with switchbox for the home sideline iPads - 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline - SCV-Sideline-XXXXX with switchbox for the visitor sideline iPads - 2 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) ### Diamond Plus 6 Coach & Official Replay Shared ### [3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#model-CORSH) ![3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH](https://help.myskycoach.com/hs-fs/hubfs/3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH.png?width=670&height=428&name=3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH.png) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) ### Travel Kit The left photo below shows the travel kit, host and station box, packed.  The right photo below shows the four items to use for travel from the home kit. ![Travel kit packed - hcb-sb, hsl-sbf, rb-rck, rw-rck, 1-100e, 2udx, hdmis](https://help.myskycoach.com/hs-fs/hubfs/Travel%20kit%20packed%20-%20hcb-sb%2c%20hsl-sbf%2c%20rb-rck%2c%20rw-rck%2c%201-100e%2c%202udx%2c%20hdmis.png?width=293&height=450&name=Travel%20kit%20packed%20-%20hcb-sb%2c%20hsl-sbf%2c%20rb-rck%2c%20rw-rck%2c%201-100e%2c%202udx%2c%20hdmis.png)       ![Take for Travel - RB Wide RCK, RW Endzone RCK, HCB-SB, HSL-SB](https://help.myskycoach.com/hs-fs/hubfs/Take%20for%20Travel%20-%20RB%20Wide%20RCK%2c%20RW%20Endzone%20RCK%2c%20HCB-SB%2c%20HSL-SB.png?width=343&height=450&name=Take%20for%20Travel%20-%20RB%20Wide%20RCK%2c%20RW%20Endzone%20RCK%2c%20HCB-SB%2c%20HSL-SB.png)   - Travel Kit# 03132T   - [Host Box](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#HostBox-CR) - 1 AC red/black stickered pressbox antenna to bridge to sideline - 1 AC red/white stickered pressbox antenna to bridge to endzone - the home sideline red/black AC (USE THIS ON THE SIDELINE) - the endzone station  - 1 AC red/white stickered endzone antenna to bridge to the pressbox with powertube - 1 ethernet for your [RCK](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck) - [Station Box](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#StationBox-CR)   - 1 endzone RCK with red/white logo - 1 pressbox RCK with red/black logo - 1 home coachbox [switchbox](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) - 1 SCH-CoachBox-WiFi "bunny ear" antenna - 1 home sideline [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) - 1 SCH-Sideline-WiFi "rectangle bunny" antenna - CONNECT THE ROUND red/black ANTENNA labeled Home Sideline - Take the following from the Home Kit (pictured below)![Take for Travel - RB RCK, RW RCK, HCB-SB, HSL-SB](https://help.myskycoach.com/hs-fs/hubfs/Take%20for%20Travel%20-%20RB%20RCK%2c%20RW%20RCK%2c%20HCB-SB%2c%20HSL-SB.png?width=450&height=334&name=Take%20for%20Travel%20-%20RB%20RCK%2c%20RW%20RCK%2c%20HCB-SB%2c%20HSL-SB.png) - Home CoachBox SwitchBox   - Home Sideline SwitchBoxF - Wide red/black RCK - Endzone red/white RCK   [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top)   ### Platinum Coach Replay ### [4AC1M1MDNHGR-3P2RP-2WT1SB-CR](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#diagram-CR)   ### **HOST BOX** (brains)                                                                                #### **PRESSBOX STATION: 1 host box, 1 [RCK](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck), 2 bridge antennas, 1 mesh access point** You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer. Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches. \* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.  **![host box - RB RW NHGR - 1R 2poe - labeled](https://help.myskycoach.com/hs-fs/hubfs/host%20box%20-%20RB%20RW%20NHGR%20-%201R%202poe%20-%20labeled.png?width=670&height=563&name=host%20box%20-%20RB%20RW%20NHGR%20-%201R%202poe%20-%20labeled.png)** - 1 AC red/black stickered antenna to bridge to the Sideline Station - 1 AC red/white stickered antenna to bridge to the EndZone Station - 1 Mesh CoachBox-WiFi antenna & 1 switchbox to connect to devices in the press box - SC-CoachBox-XXXXX with switchbox for the home coach booth - 1 ethernet cable for your [RCK](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck) - 1 green gigabit router - 1 Nuc host server #### Coach room [switchbox](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox) is connected to the [PressBox Station](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#pressboxStation-CR)  There is one switchbox for the home coachbox. It will be powered in the coach room. Use a long ethernet cable (pictured on the cable winder in the top left corner of the photos) to run from the LAN2 port on your red/white round bridge antenna to PORT 1 on your CoachBox switch, as pictured below.  \* The LAN2 port on your red/white bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna. Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches. ![IMG\_0644](https://help.myskycoach.com/hs-fs/hubfs/IMG_0644.jpg?width=325&height=273&name=IMG_0644.jpg)        ![Switchbox port 1 -labeled](https://help.myskycoach.com/hs-fs/hubfs/Switchbox%20port%201%20-labeled.png?width=325&height=270&name=Switchbox%20port%201%20-labeled.png) \*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds when placed in the coach room.  [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top)   ### **STATION BOX (field equipment)                                                   ** #### **SIDELINE STATION:** 1 bridge antenna, 1 mesh-UMAD access point, 1 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 35 yard line. ![sidelineStationOnStand](https://help.myskycoach.com/hs-fs/hubfs/sidelineStationOnStand.jpg?width=135&height=223&name=sidelineStationOnStand.jpg)The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions. The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices.  This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.  Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply. #### ![SwitchBoxF - w.poe, fs, hsl-wifi, umad connected, RB \_labeled](https://help.myskycoach.com/hs-fs/hubfs/SwitchBoxF%20-%20w.poe%2c%20fs%2c%20hsl-wifi%2c%20umad%20connected%2c%20RB%20_labeled.png?width=670&height=507&name=SwitchBoxF%20-%20w.poe%2c%20fs%2c%20hsl-wifi%2c%20umad%20connected%2c%20RB%20_labeled.png) - 1 AC red/black stickered antenna to bridge to pressbox and power the - 1 Mesh-UMAD Sideline-WiFi antenna that connects to devices on the sideline  - SC-Sideline-XXXXX with switchbox-F for sideline iPads - 1 [switchbox-F](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#switchbox-F) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) #### **END ZONE STATION:** 1 bridge antenna, 1 [RCK](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck),  1 [powertube](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#powertube) You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label. You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna. \*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post. #### ![EZ station RW, RP, WT - labeled](https://help.myskycoach.com/hs-fs/hubfs/EZ%20station%20RW%2c%20RP%2c%20WT%20-%20labeled.png?width=670&height=603&name=EZ%20station%20RW%2c%20RP%2c%20WT%20-%20labeled.png) - 1 AC red/white stickered antenna in the end zone to bridge to the pressbox - 1 ethernet cable for your [RCK](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#rck) - 1 [powertube](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#powertube) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) ### Platinum Coach Replay ### [4AC1M1MDNHGR-3P2RP-1WT1SB1SBF-CR](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#model-CR) ![4AC1M1MDNHGR-3P2R-1WT1SB1SBF-CR](https://help.myskycoach.com/hs-fs/hubfs/4AC1M1MDNHGR-3P2R-1WT1SB1SBF-CR.png?width=670&height=400&name=4AC1M1MDNHGR-3P2R-1WT1SB1SBF-CR.png) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top)   ### 3 POWER SUPPLY types for these models: **Powertube                                                                 ** ![open-powertube](https://help.myskycoach.com/hs-fs/hubfs/open-powertube.png?width=550&height=323&name=open-powertube.png) - 1 white POE injector - The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna - The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network  - The cables crossover to exit [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) #### **Switchbox (for coach room)** #### **![switchbox power supply open labeled-2](https://help.myskycoach.com/hs-fs/hubfs/switchbox%20power%20supply%20open%20labeled-2.png?width=670&height=741&name=switchbox%20power%20supply%20open%20labeled-2.png)** - 1 white POE injector - LAN connects to switch - The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the Mesh SC-CoachBox-WiFi bunny antenna - 1 green switch - PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box - The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter - The cables exit through designated slots [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) #### **switchbox fiber (for sideline and review stations)** ![SwitchBoxF - w.poe](https://help.myskycoach.com/hs-fs/hubfs/SwitchBoxF%20-%20w.poe.png?width=670&height=508&name=SwitchBoxF%20-%20w.poe.png) - 1 white POE injector - LAN connects to switch - The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the round antenna - The LAN2 port on the round antenna then connects to the mesh-UMAD that produces the SC-Sideline-WiFi antenna with rectangular directional booster  - 1 fiber switch - The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter - The cables exit through designated slots [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) #### **RCK Pro (Remote Camera Kit)   ** 1. ![camera\_connected\_RCKPro\_labeled](https://help.myskycoach.com/hs-fs/hubfs/camera_connected_RCKPro_labeled.png?width=670&height=299&name=camera_connected_RCKPro_labeled.png)Power the RCK. 2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed. 3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network. ![Screenshot 2024-12-31 122303](https://help.myskycoach.com/hs-fs/hubfs/Screenshot%202024-12-31%20122303.png?width=670&height=466&name=Screenshot%202024-12-31%20122303.png) Once you get all 4 check marks on the RCK you can join the event. ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad. [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) [Model Overview](https://help.myskycoach.com/model-overview?hsLang=en) [Package Overview](https://help.myskycoach.com/package-overview?hsLang=en) [Kit Overview](https://help.myskycoach.com/kit-overview?hsLang=en) ![QR\_3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH](https://help.myskycoach.com/hs-fs/hubfs/QR_3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH.png?width=250&height=248&name=QR_3M2MDNHGRBS-4P6RP-2SB3SBF-CORSH.png) [TOP](https://help.myskycoach.com/3m2mdnhgrbs-4p6rp-2sb3sbf-corsh#top) - [Support](https://help.myskycoach.com/support?hsLang=en#main-content) - [Common Support Questions](https://help.myskycoach.com/support?hsLang=en#common-support-questions) - [Instructions](https://help.myskycoach.com/support?hsLang=en#instructions) - [Stadium Specific Notes](https://help.myskycoach.com/support?hsLang=en#stadium-specific-notes) - [Kits, Models, and Packages](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#main-content) - [NSNBM5 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#nsnbm5-models) - [M Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#m-models) - [M5 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#m5-models) - [ACM5 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acm5-models) - [ACM Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acm-models) - [ACMM Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acmm-models) - [ACMM5 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acmm5-models) - [ACMMD Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acmmd-models) - [ACMU7 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acmu7-models) - [WMPMU7 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#wmpmu7-models) - [Custom Kit Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#custom-kit-models) - [MU7 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#mu7-models) - [ACU6U7 Models](https://help.myskycoach.com/kits-models-and-packages?hsLang=en#acu6u7-models)
