Platinum Coach Replay / 4AC(RB,RW)1M1MDNHGR-3P2RP-2WT-CR

PAGE SHORTCUTS:

• Host Box, Station Box
• 3 Setup Parts

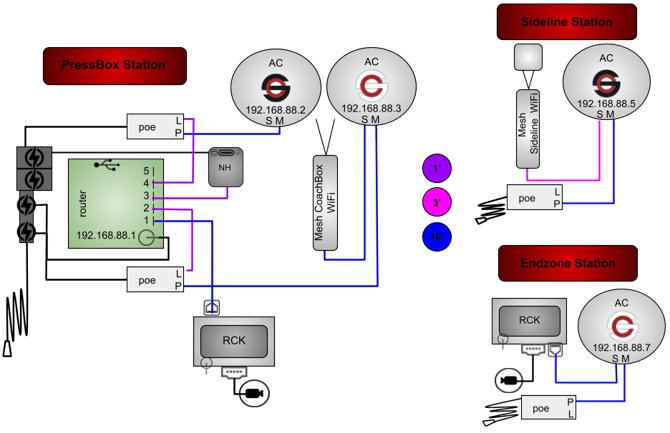

• Diagram
• Power Supply
• Training Link
• QR & Overview

PARTS:

• 3 Stations: PressBox, Sideline, and EndZone
• Nuc Host and Green Gigabit Router
• 4 AC Bridge Antennas
• 1 Mesh CoachBox AP
• 1 Mesh-UMAD Sideline AP
• 2 Remote Camera Kits
• 2 Powertubes

HELPFUL LINKS:

• Setup Instructions, User Guide     [review and combine the 2 files into most recent]
• Diagram
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# is found on the outside of your toolbox
• The username and password for your app are found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model#: 4AC1M1MDNHGR-3P2RP-2WT-CR
• Your kit style is a Platinum Coach's Replay

TOP

3 Parts To Set Up Your Kit

Platinum Coach Replay

4AC(RB,RW)1M1MDNHGR-3P2RP-2WT-CR

HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 2 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.

• 1 green gigabit router
  • 1 Nuc host server
  • 1 ethernet cable for your RCK
  • 2 ethernet cables connected to LAN port on each injector

• 1 AC red/black stickered antenna to bridge to the Sideline Station, connected from the POE24 port of injector to the Main port of antenna

• 1 AC red/white stickered antenna to bridge to the EndZone Station, connected from the POE24 port of injector to the Main port of antenna
  • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
  • This is connected to the POE24 port of the injector
    • SC-CoachBox-XXXXX

TOP

STATION BOX (field equipment)

SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 powertube

You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices.  This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

• 1 powertube
  • 1 AC red/black stickered antenna to bridge to pressbox and power the WiFi antenna, connected from the POE24 port of the powertube injector to the Main port of the antenna
    • 1 Mesh-UMAD Sideline-WiFi antenna that connects to devices on the sideline
    • This is connected to the LAN2 port of the red/black round antenna
      • SC-Sideline-XXXXX

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK,  1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

• 1 powertube
  • 1 AC red/white stickered antenna in the end zone to bridge to the pressbox, connected from the POE24 port of the powertube injector to the Main port of the antenna

    • 1 ethernet cable for your RCK connected to LAN2 port of the red/white round antenna

TOP

1 POWER SUPPLY type for this model:

Powertube

• Powertube with 1 white POE injector

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)

SETUP STEPS
