Diamond Plus 4 Coach & Official Replay Shared / 6AC3M2MDNHGR-4P4RP-1WT5SB1SBP-CORSH

PAGE SHORTCUTS:

• Host Box, Station Box

• Power Supply

• RCK (Remote Camera Kit)

• Diagram

• Training Link

• QR & Overview

PARTS:

• 4 stations: Host Box - PressBox - Review, Home Sideline, Visitor Sideline, EndZone

• Nuc Host and Green Gigabit Router

• 6 AC Bridge Antennas: RB, RW, RWB

• 1 Mesh Review AP for officials

• 2 Mesh CoachBox APs

• 2 Mesh-UMAD Sideline APs

• 4 Remote Camera Kits

• 1 Powertube

• 5 Switchboxes

• 1 Switchbox Plus

HELPFUL LINKS:

• Setup Instructions

• Diagram (Part1) & Diagram (Part2)

• Training Playlist

• Pregame Checklist

• How to Tune Your Network

• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox

• The username and password for your app found in your SkyCoach Training email

• The wifi access codes for your kit are found in your SkyCoach Training email

• This is your model# 6AC3M2MDNHGR-4P4RP-1WT5SB1SBP-CORSH

• Your kit style is a Diamond Plus 4 Coach & Official Replay Shared

TOP

Diamond Plus 4 Coach & Official Replay Shared

6AC3M2MDNHGR-4P4RP-1WT5SB1SBP-CORSH

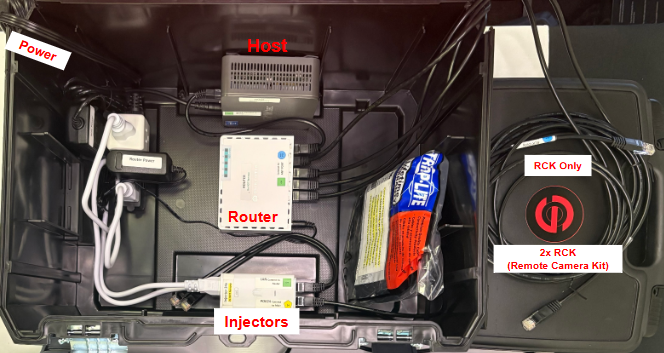

HOST BOX (brains)

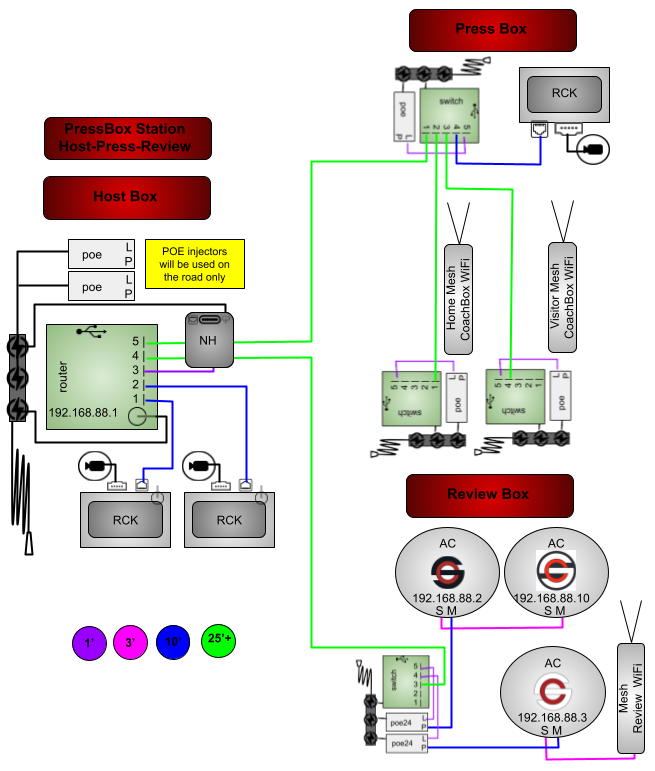

PRESSBOX STATION: Host Box - Press Box - Review Box

You will need to connect the Press Box and Review Box to the Host Box. Each box requires 1 power outlet.

Use a long ethernet cable to run from the router in the Host Box to the Press Box switch labeled "H&V Coaches Booth".

Use another long ethernet cable to run from the router in the Host Box to the Review Box switch labeled "Review Tent".

• 1 green gigabit router

  • 2 ethernet cables for your RCKs

  • 1 Nuc host server

  • 1 long ethernet to the PressBox labeled "H&V Coaches Booth"

  • 1 long ethernet to the ReviewBox labeled "Review Tent"

FOR TRAVEL:

• 2 white poe injectors

  • LAN ports connect to router

    • Remove the 2 long ethernets that run to the PressBox (labeled "H&V Coaches Booth") and ReviewBox (labeled "Review Tent")

  • The red POE24 ports on the injectors use a 10' ethernet to connect the Main ports on the round antennas (red/black "point at home sideline" & red/white "point at endzone")

    • The LAN2 port on the red/white round antenna uses long ethernet to connect to port 1 ONLY on the switch in the Home CoachBox

TOP

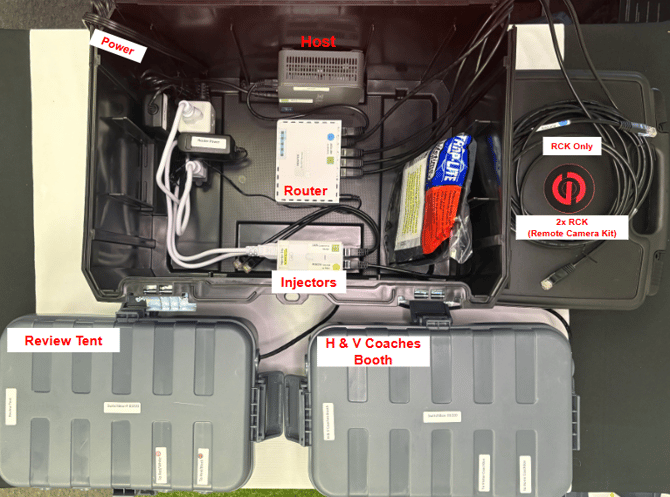

Host Box: 1 host box, 2 RCKs

You will need 3 power outlets: one to power the host box and two to power the RCKs.

Use two long ethernet cables to run from the router to the Press Box switch labeled "H&V Coaches Booth" and  the Review Box switch labeled "Review Tent".

• 1 green gigabit router

  • 2 ethernet cables for your RCKs

  • 1 Nuc host server

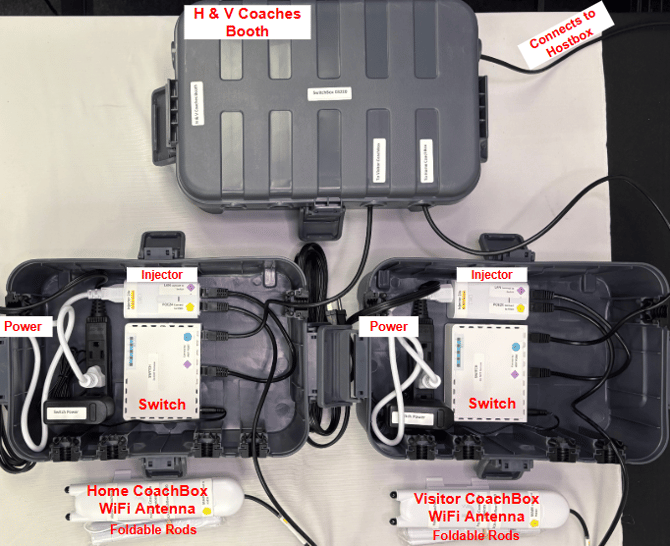

Press Box: 1 H&V switchbox, 1 RCK, 2 mesh access points, 2 switchboxes

You will need 4 power outlets: one to power each of the 3 switchboxes and one for the RCK.

The Press Box switch labeled "H&V Coaches Booth" and 1 RCK will stay with the filmer. The Press Box switch will connect by ethernet to the RCK and to each home and visitor switchbox.

Use two long ethernet cables to run from the Press Box switch labeled "H&V Coaches Booth" to the home switchbox in the home coach room and the visitor switchbox in the visitor coach room.

Home/Visitor switchboxes are connected to the H&V Coach Booth switchbox

There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.

Use a long ethernet cable to run from the Press Box switch to the Home/Visitor CoachBox switch.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.

[crop the AC ant out of these photos and label 100'e as connecting back to H&V switchbox so you can remove port 1 only]



• 1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room

  • SCH-CoachBox-XXXXX with switchbox for the home coach booth

• 1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room

  • SCV-CoachBox-XXXXX with switchbox for the visitor coach booth

• 2 switchboxes

TOP

Review Box: 1 review switchbox plus, 3 bridge antennas, 1 mesh access point

You will need 1 power outlet to power the switchbox plus. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels.

Use a long ethernet cable to run from the Host Box router to the Review Box switch labeled "review tent".

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the tent for the referees.

*The skinny "rabbit ear" mesh antenna should be in the tent with the referee iPad. This provides the SC-Review-WiFi access for the officials and will ensure fast download speeds when placed in the tent.

• 1 switchbox plus

• 1 AC red/black stickered antenna to bridge to the Home Sideline Station

  • Main connect to red poe24 port in the "review tent" switchbox

  • LAN2 connect to Main on red/white/black round antenna

    • 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station

• 1 AC red/white stickered antenna to bridge to the EndZone Station

  • Main connect to red poe24 port in the "review tent" switchbox

  • LAN2 connect to Main on review "bunny"

    • 1 mesh Review-WiFi antenna to connect to review device

      • SC-Review-XXXXX access point for officials

   TOP

STATION BOX (field equipment)

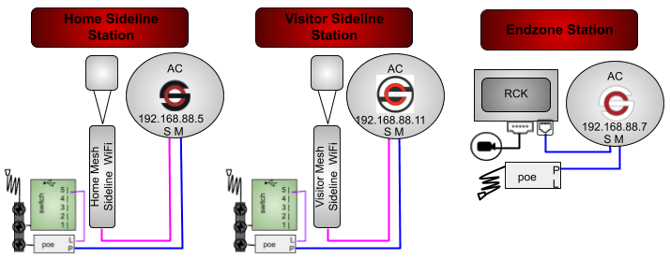

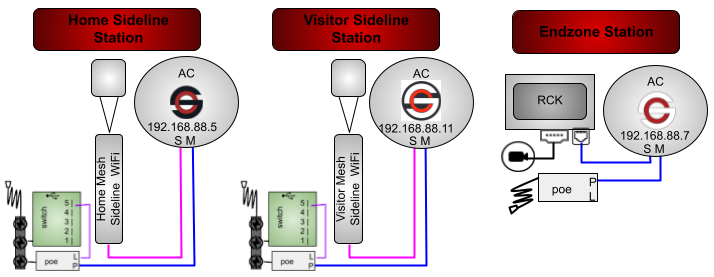

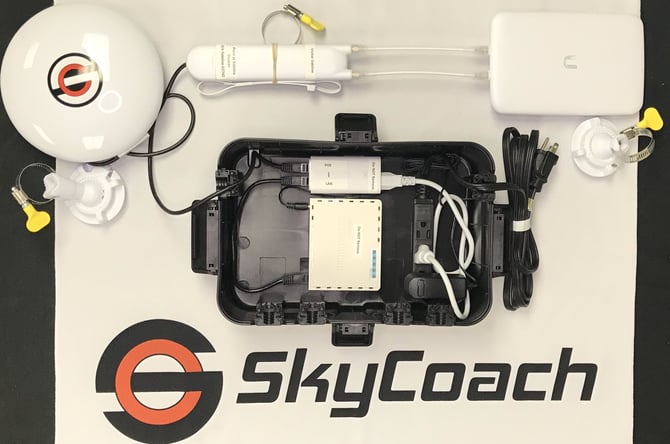

SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox (repeat for home and visitor)



You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.

• 1 AC red/black stickered antenna for home sideline to bridge to the review station

  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline

    • SCH-Sideline-XXXXX with switchbox for the home sideline iPads

• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the review station

  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline

    • SCV-Sideline-XXXXX with switchbox for the visitor sideline iPads

• 2 Switchboxes

TOP

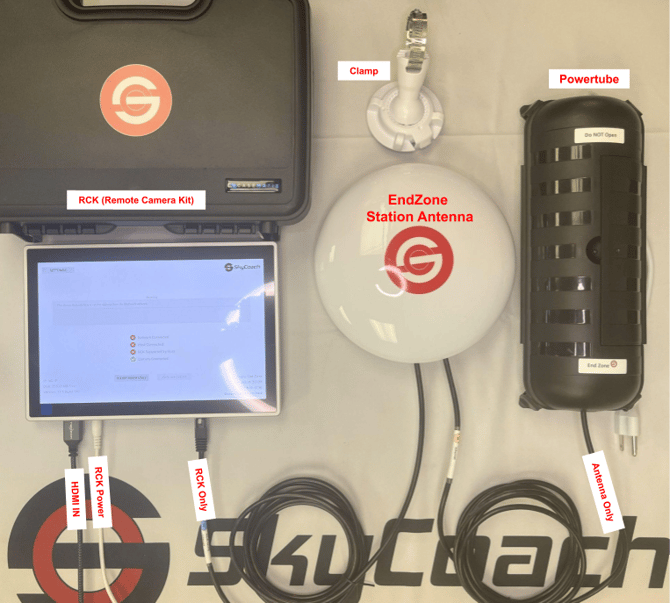

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox

  • 1 ethernet cable for your RCK

• 1 powertube

TOP



Diamond Plus 4 Coach & Official Replay Shared

6AC3M2MDNHGR-4P4RP-1WT5SB1SBP-CORSH

3 POWER SUPPLY types for this model:



Powertube

• 1 white POE injector

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

• The cables crossover to exit

TOP

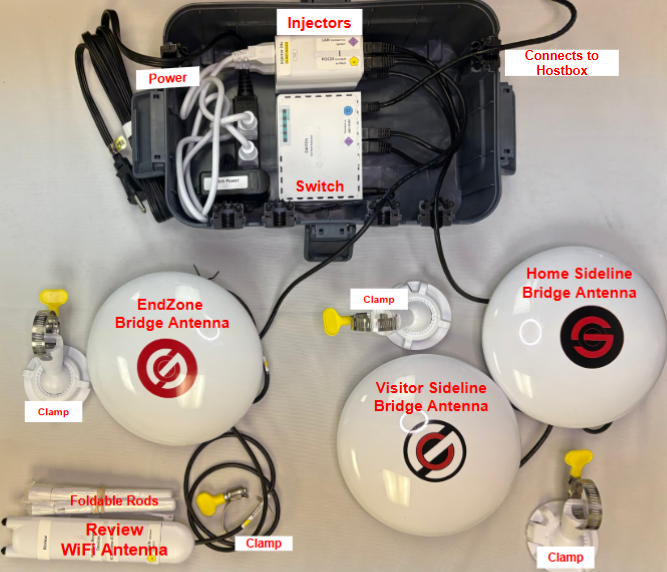

Switchbox Plus (for review station)

• Switch with 2 white POE injectors

  • both injector LAN ports connect to switch

  • red POE24 ports use a 10' ethernet to connect the Main port on the antennas

• The cables exit through designated slots

• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter

TOP

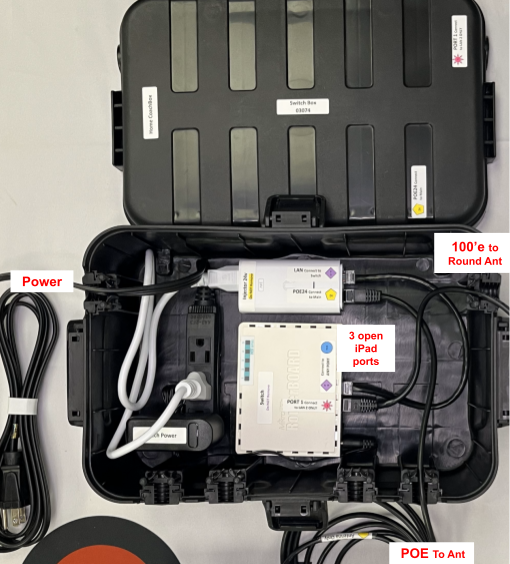

Switchbox (for coach rooms)

• Switch with 1 white POE injector

  • injector LAN port connects to switch

  • injector red POE24 port uses a 10' ethernet to connect to the Main port on the Mesh SC-CoachBox-WiFi bunny antenna

• The cables exit through designated slots

• PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box

• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter

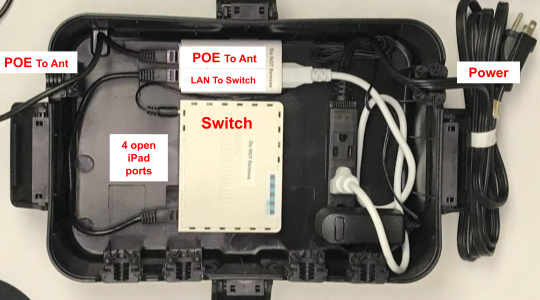

Switchbox (for visitor sideline station)

• Switch with 1 white POE injector

  • Injector LAN port connects to switch

  • injector red POE24 port uses a 10' ethernet to connect the Main port on the round antenna

• The cables exit through designated slots

• For stations with a WiFi access point:

  • The LAN2 port on the round antenna connects to the WiFi access point, either the mesh with bunny ears or mesh-UMAD with rectangular booster

• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter

TOP



RCK Pro (Remote Camera Kit)

1. Power the RCK.

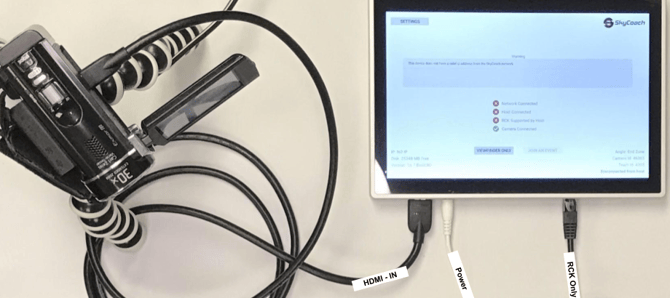

2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.

3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

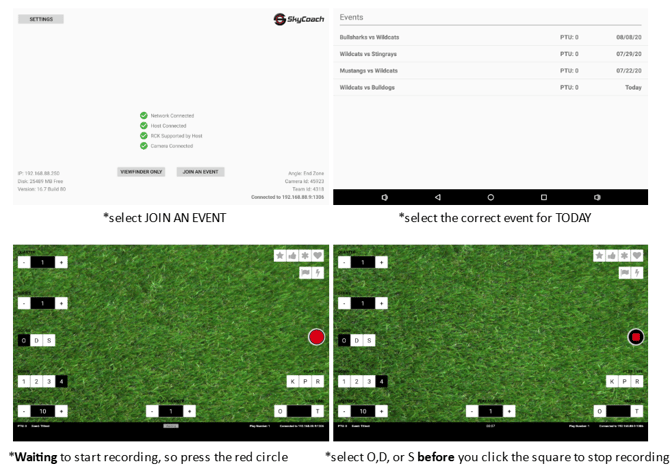

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP
