Titanium Plus 4 Coach & Official Replay Shared / 8AC3M2MDNHGRFS-5P4RP-2WT4SB1SBX-CORSH

PAGE SHORTCUTS:

• Host Box, Station Box
• Review Station
• Power Supply
• RCK (Remote Camera Kit)

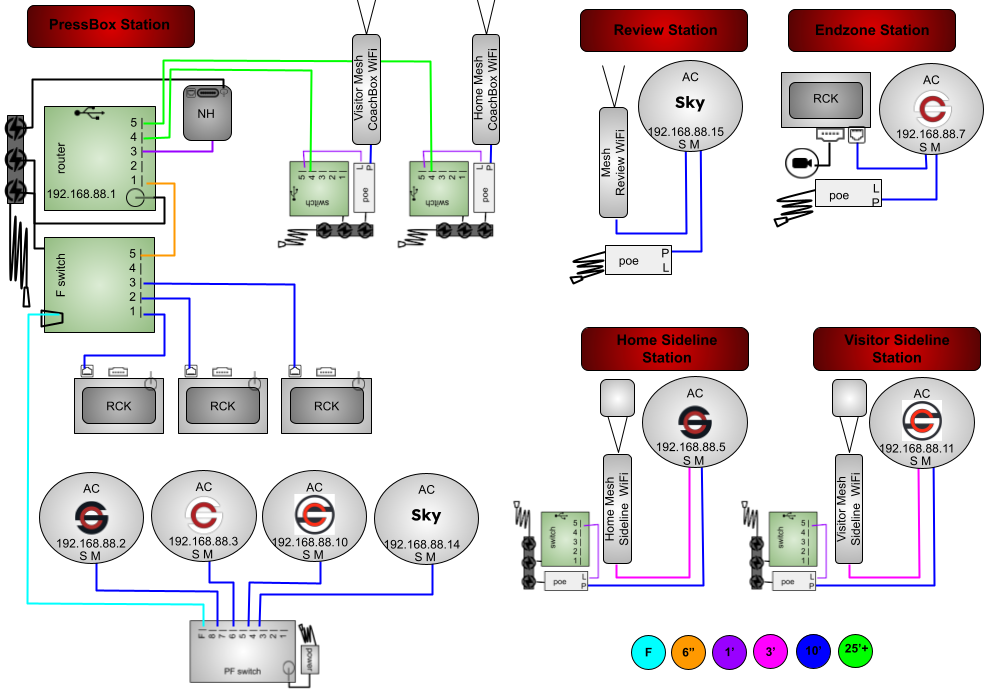

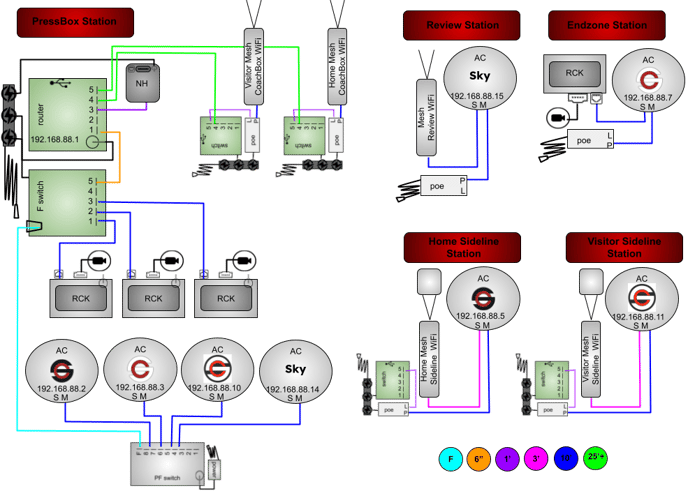

• Diagram (Please note the diagram below shows a third RCK at EndZone 2 representing the one the visiting team will bring to the game)
• Training Link
• QR & Overview

PARTS:

• 5 stations: PressBox, Home Sideline, Visitor Sideline, EndZone, Review
• NUC Host, Green Gigabit Router, Fiber Switch
• 8 AC Bridge Antennas: RB, RW, RWB, SKY
• 1 Mesh Review AP for officials
• 2 Mesh CoachBox APs
• 2 Mesh-UMAD Sideline APs
• 4 Remote Camera Kits
• 2 powertubes
• 4 switchboxes
• 1 switchbox extreme

HELPFUL LINKS:

• Setup Instructions
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 8AC3M2MDNHGRFS-5P4RP-2WT4SB1SBX-CORSH
• Your kit style is a Titanium Plus 4 Coach & Official Replay Shared

TOP

Titanium Plus 4 Coach & Official Replay Shared

8AC3M2MDNHGRFS-5P4RP-2WT4SB1SBX-CORSH

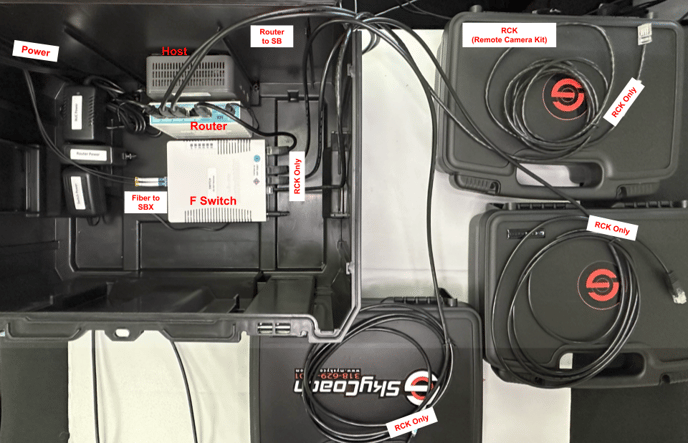

HOST BOX (brains)

PRESS BOX STATION: 1 host box, 3 RCKs, 4 bridge antennas, 2 mesh access points, 2 switchboxes, 1 switchbox extreme

You will need 4 power outlets: one to power the host box and three to power the RCKs.

The 4 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the router in your host box to the respective home/visitor coach room and connect to any port in the switchbox containing the coachbox access point. Attach the foldable rods to the top of the "skinny" mesh antenna and place it in the room with the coaches.

* The "skinny rabbit ear" mesh antenna provides the SCH and SCV-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.

• 1 green gigabit router
  • connect to home and visitor coach room switchboxes

• 1 fiber switch
  • 3 ethernet cables for your RCKs
• 1 NUC host server

TOP

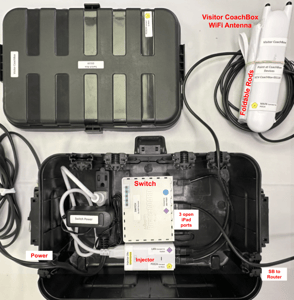

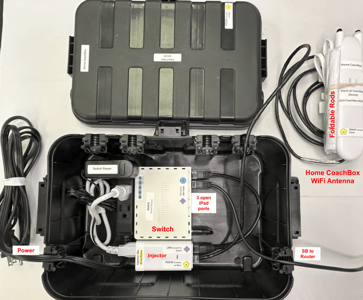

Home/Visitor switchboxes are connected to the PressBox Station

There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.

Use a long ethernet cable to run from the router in your host box to any port on your Home/Visitor CoachBox switch, as pictured below.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.



• 1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room
  • SCH-CoachBox-XXXXX with switchbox for the home coach booth
• 1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room
  • SCV-CoachBox-XXXXX with switchbox for the visitor coach booth
• 2 switchboxes

TOP

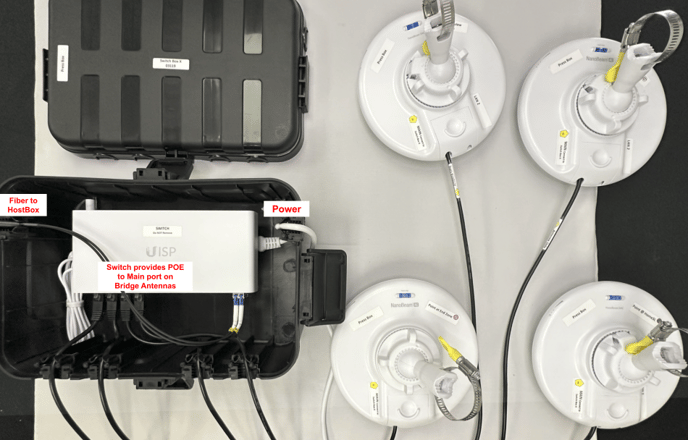

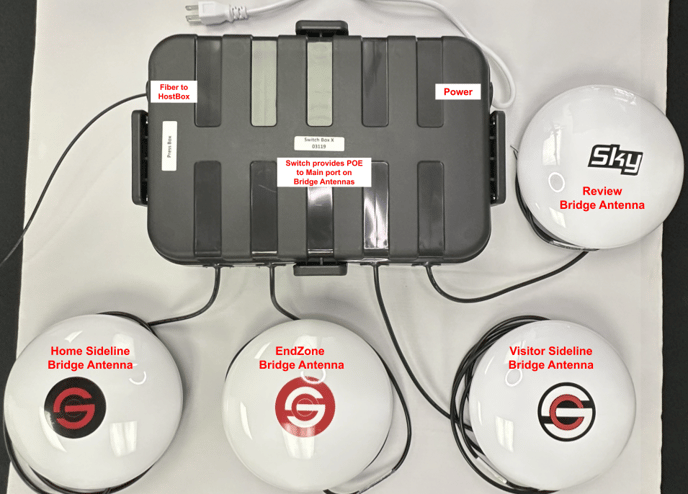

The switchbox extreme for bridge antennas connects to the PressBox Station

There is one switchbox extreme with your pressbox equipment to power the bridge antennas that point at the field. You will need one power outlet. The 4 round antennas will mount to one of your stands and point at the field as indicated by their labels.

Use either a long ethernet cable or fiber to run from the switch port in your host box to the switchbox-X.

The host box and RCKs will be in the control room.

• 1 AC red/black stickered antenna to bridge to the Home Sideline Station
• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station
• 1 AC red/white stickered antenna to bridge to the EndZone Station
• 1 AC SKY stickered antenna to bridge to the Review Station
• 1 switchbox extreme

TOP

STATION BOX (field equipment)

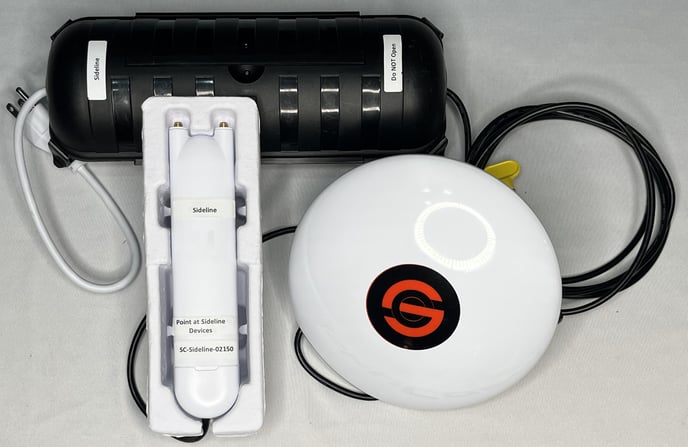

SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox (repeat for home and visitor)



You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
    • SCH-Sideline-XXXXX with switchbox for the home sideline iPads
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline

    • SCV-Sideline-XXXXX with switchbox for the visitor sideline iPads
• 2 Switchboxes

TOP

REVIEW STATION: 1 bridge antenna, 1 mesh access point, 1 powertube

You will need 1 power outlet for the powertube.

Mount the round antenna to one of the stands and place it at the review table. The round bridge antenna will point at the matching host box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

Attach the foldable rods to the top of the mesh WiFi antenna. The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the officials and will ensure fastest download speeds when placed on the score table near the review iPad.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter.

[retake pic with SKY, rev-wifi, w.tube]

• 1 AC SKY stickered antenna for the review station to bridge to the pressbox
  • 1 Mesh Review-WiFi antenna to connect to official's device
    • SC-Review-XXXXX for the review tent
• 1 powertube

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox

  • 1 ethernet cable for your RCK

• 1 powertube

3 POWER SUPPLY types for this model:

Powertube

• 1 white POE injector
  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

Switchbox (for coach room)

• 1 white POE injector

  • LAN connects to switch
  • The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the Mesh SC-CoachBox-WiFi bunny antenna

• 1 green switch
  • PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box
  • The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
• The cables exit through designated slots

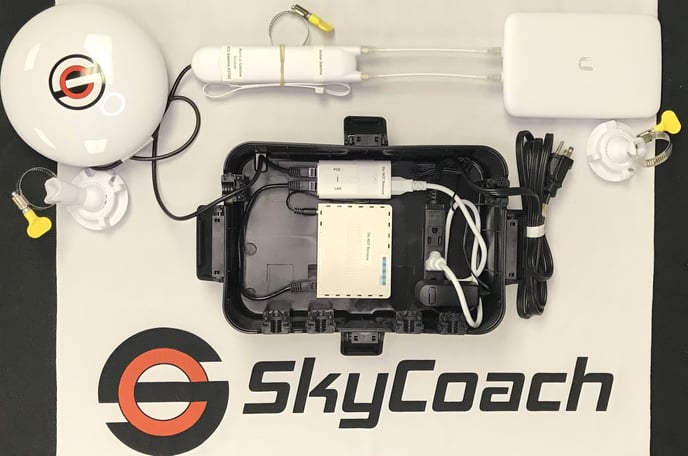

Switchbox (for sideline)

• 1 white POE injector

  • LAN connects to switch
  • The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the round antenna
    • The LAN2 port on the round antenna then connects to the mesh-UMAD SC-Sideline-WiFi antenna with rectangular booster
• 1 green switch
  • The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
• The cables exit through designated slots

TOP

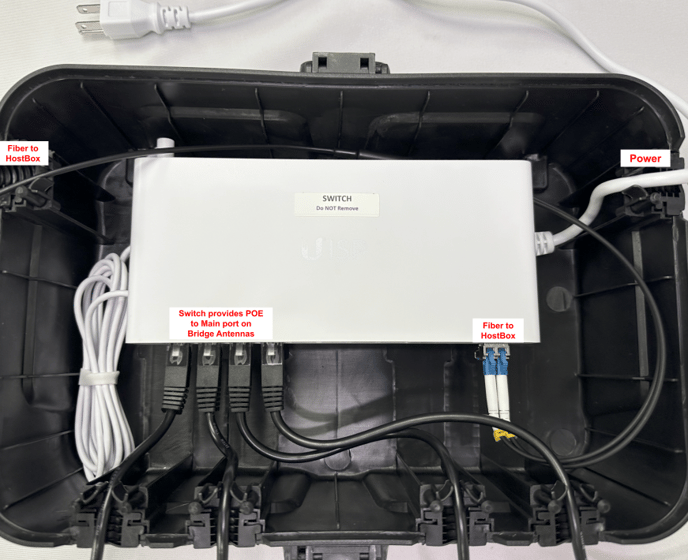

Switchbox Extreme (used to power ACs)

• 1 PF switch
  • The switch is configured to provide power to the AC antennas
    • use ethernet to connect to the Main port on the round bridge antennas
  • The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
  • You may use fiber or ethernet to connect back to the fiber switch in the host box
• The cables exit through designated slots

TOP

RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP

Titanium Plus 4 Coach & Official Replay Shared

8AC3M2MDNHGRFS-5P4RP-2WT4SB1SBX-CORSH
