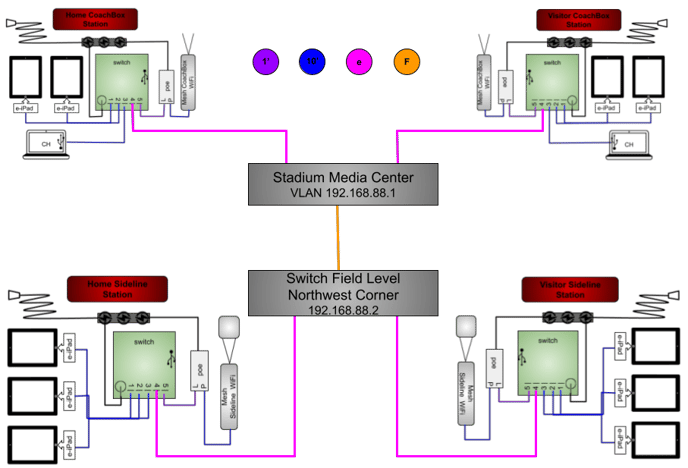

Edmonton IT created a VLAN with ethernet to each coach room and fiber to the SkyCoach switch at the northwest corner of field. They ran ethernet from northwest corner to each 50 yard line. May attach APs directly like iOS WiFi Only image.
SkyCoach switch, CSS610-8P-2S+IN, installed at the northwest corner of the field
MCHGR-3P0R-C:
iOS Ethernet Capable

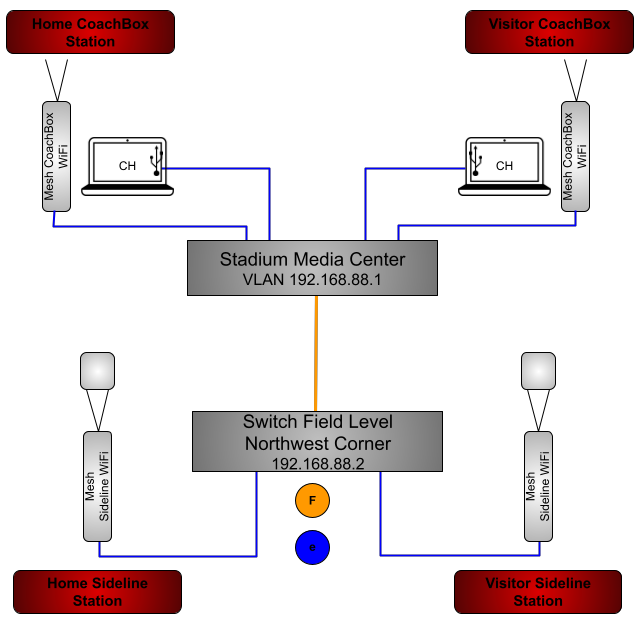

iOS WiFi Only
Teams are either using HDMI or SDI version of the Magewell capture device between the camera and computer.
