This SkyCoach set up has a mix of fixed and mobile equipment. The kit has 7 stations and 3 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.
The team will carry a Platinum Plus on the road. Please refer to the linked knowledge base article for reference.
Stellar Plus Coach & Official Replay Shared 10AC3M2MDNHGR1WS1BS-7P3RP-3WT2WB-CORSHM

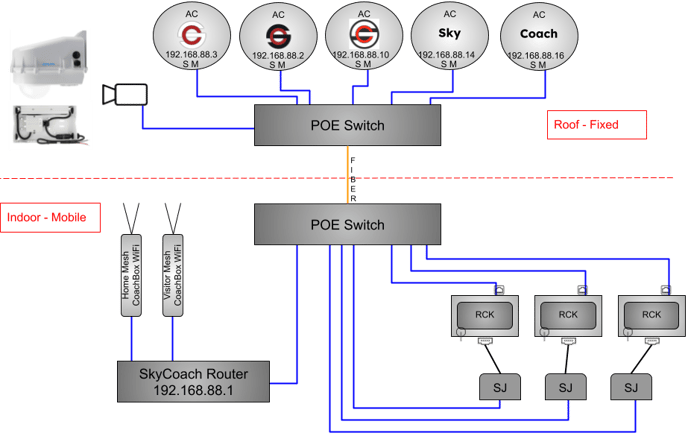

Roof - fixed:
The 5 round AC ntennas and the IP camera are powered by the switch. The camera enclosure is powered by the included power supply, KT-CDR2-AC.
ON THE ROAD: You will need only to take TWO of the round antennas for the Platinum Plus set up: RB, RWB, SKY
%20Building.png?width=688&height=436&name=10AC3M2MDNHGR-7P3RP-3WT2WB-CORSH%20Quincy%20U%20(GLVC)%20Building.png)
Indoor - mobile:
ON THE ROAD: Take HostBox, SCH-CoachBox-WiFi, and 3 RCKs for the Platinum Plus set up.

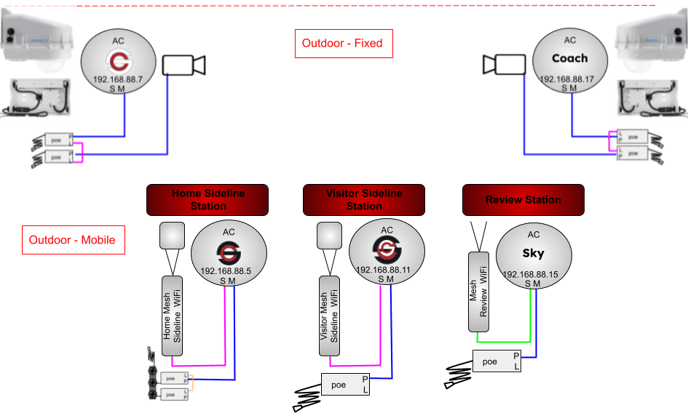

Outdoor - fixed:
The two endzone stations require 3 power outlets each. Two for the POE injectors that power the AC antenna and the IP camera, and one for the camera enclosure power supply.
%20Field.png?width=688&height=414&name=10AC3M2MDNHGR-7P3RP-3WT2WB-CORSH%20Quincy%20U%20(GLVC)%20Field.png)
Outdoor - mobile:
ON THE ROAD: Take the matching two stations for use on the sideline and at the endzone. You can either
1) add an ethernet to the POE LAN port for your endzone RCK or
2) remove the ethernet from the WiFi antenna and put it in the RCK instead
