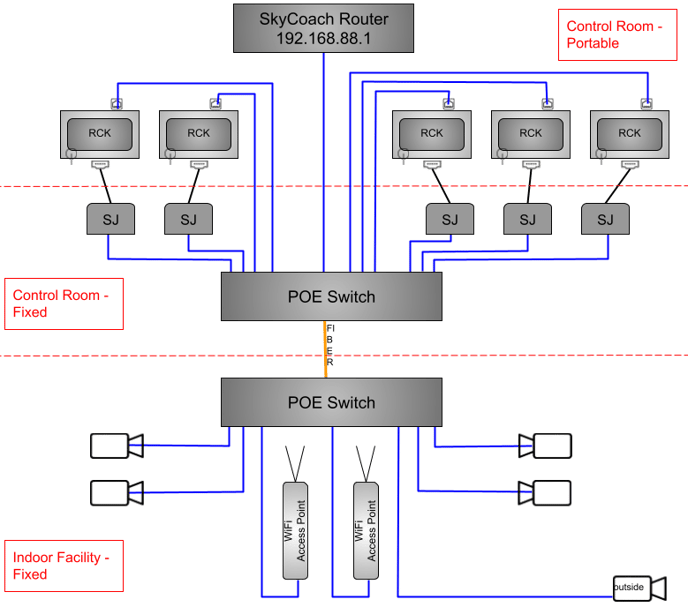

This kit is modular, with portable and fixed portions. The Platinum Plus Coach Replay is portable. The fixed portion includes 2 additional RCKs, 2 additional Wifi access points, 2 switches, and IP cameras for the practice facility.
The video below shows the connections in the control room and the practice facility.
Superjoy controllers have been configured to control each of the 5 IP cameras.
IP cameras have been configured to 192.168.88.21-25
Here is a link to the travel portion of your equipment, Platinum Plus Coach Replay knowledge base article:
Platinum Plus Caoch Replay / 4AC1M1MDNHGR-3P3RP-2WT-CR
PARTS:
- mobile Platinum Plus CR kit for travel -
- 3 stations: PressBox, Sideline, Endzone
- coach access in the pressbox and on the sideline
- 3 RCK Pros (connect to control room)
- (host connects to control room)
- 2 Netgear switches -
- 8 port in the practice facility
- 2 U7 wifi access points for the practice facility
- 5 ip cameras
- 16 port in the control room
- 2 RCK Pros
- 5 superjoy controllers
- 8 port in the practice facility
