- PressBox Station, Sideline Station and EndZone Station
- Toolbox Host and Green Gigabit Router
- AC Bridge Antennas
- Mesh CoachBox and Sideline APs
- 3 Video Cameras
Years in Production: 2022 -
*Any team using this models needs a UMA-D attachment for their sideline mesh because the mesh has not performed well on the sideline by itself.
User Guide
Training Playlist

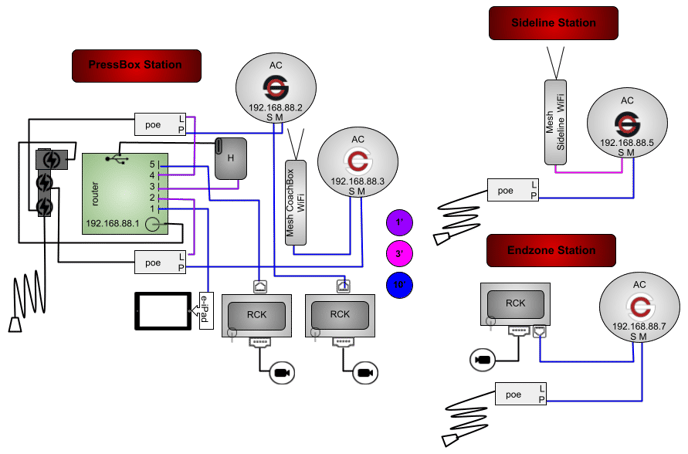

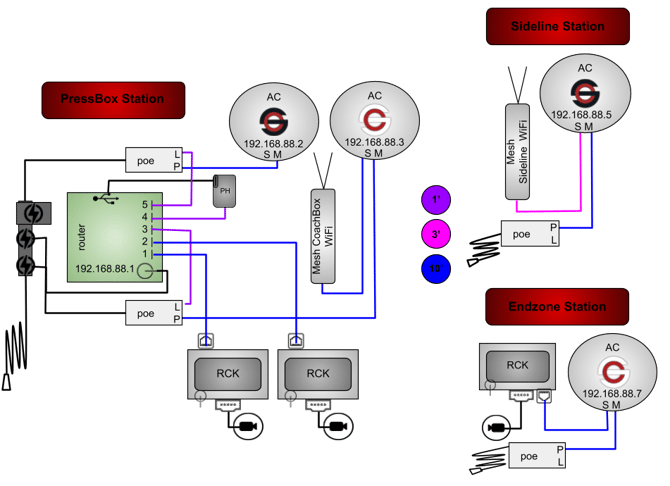

ACMTBHGR-3P3R:
Press Box Station
- AC red and black stickered antenna to bridge to Sideline
- AC red and white stickered antenna to bridge to EndZone
- Mesh CoachBox-WiFi antenna to connect to devices in the press box
- 2 Ethernet cables for your RCKs
- Ethernet cable (with iPad adapter) for recording iPad
Sideline Station
- AC red and black stickered antenna to bridge to Pressbox
- Mesh Sideline-WiFi antenna to connect to devices on the sideline
EndZone Station
- AC red and white stickered antenna to bridge to PressBox
- Ethernet cable for your RCK
Inside Sideline & Endzone Power Station
- The ethernet cable for the antenna is plugged into the POE port (labeled in red on the injector)
