If your team is playing in the AT&T stadium, this article will help you with optimal setup of your SkyCoach equipment.
The coach rooms are connected via ethernet to the end zone film location and the Crow's Nest film location across the field. There is no need for antennas to bridge from the room to those locations.
Your specific setup will depend on whether the sideline cameras are in the room with the coaches or in the Crow's Nest across the field.
Coach Rooms
Home Coach Room ST639
Visitor Coach Room ST632
Place the press box tool box in the coach room by the ethernet ports on the wall.
Connect the end zone port labeled End Zone to the router in your toolbox.
If the recording sideline cameras are going to be in the Crow's Nest across the field connect the sideline cam port labeled Crow's Nest to the router.
If the recording sideline cameras are going to be in the coach room connect them directly to the router.
To make room for ethernet connections on the router, you will need to disconnect the POE injector that powers the Round antenna LAN port from the router. The Coach Box antenna's POE injector LAN port must stay connected to the router.
Connect your iPads to the SkyCoach coach box WiFi
End Zone
Both teams film in the same end zone.

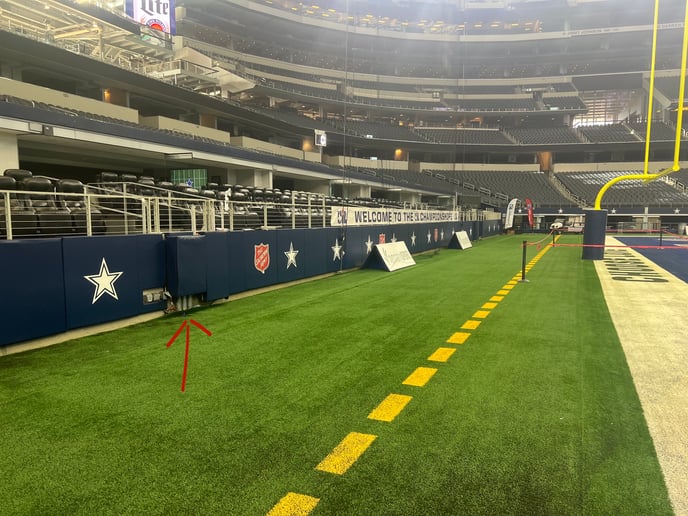

Home End Zone Connection Location

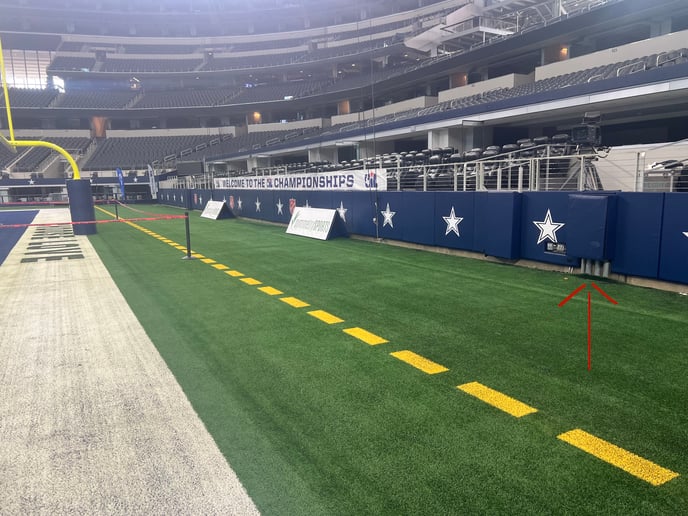

Visitor End Zone Connection Location

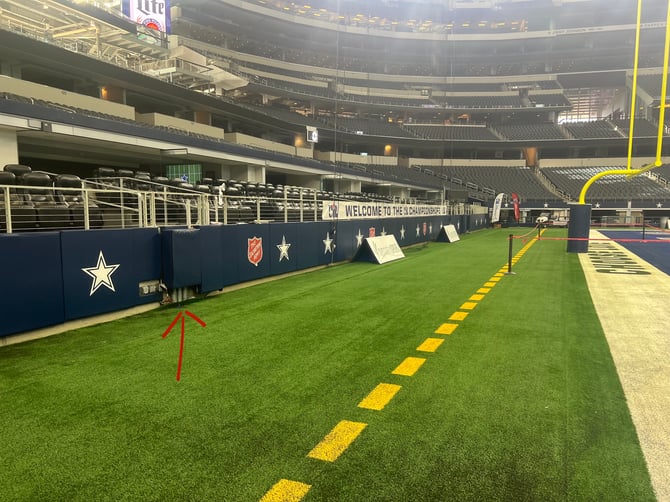

Filming in the End Zone
Sideline Film Location Options
Sideline cameras can either be in the room with the coaches or they can be across the field in the birds nest.
If filming in the birds nest, connect your RCK(s) to the switch labeled SkyCoach. There are two ethernet cables in the switch that can be used. Do not remove the cables from the switch.
Filming in the Coach Room
Crow's Nest Camera Location

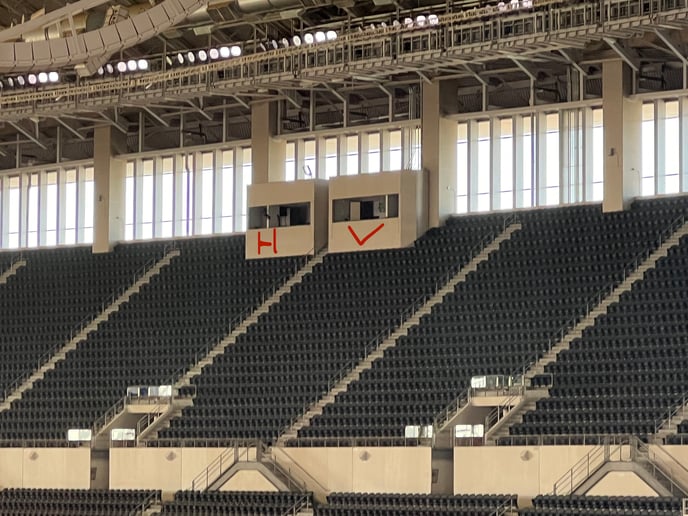

The Crow's Nest is located on the upper concourse. From the coach rooms go up one floor and all the way around to opposite side of stadium.
Home is UD300-1 and visitor is UD400-1
Coach Box Setup for Filming in Crow's Nest

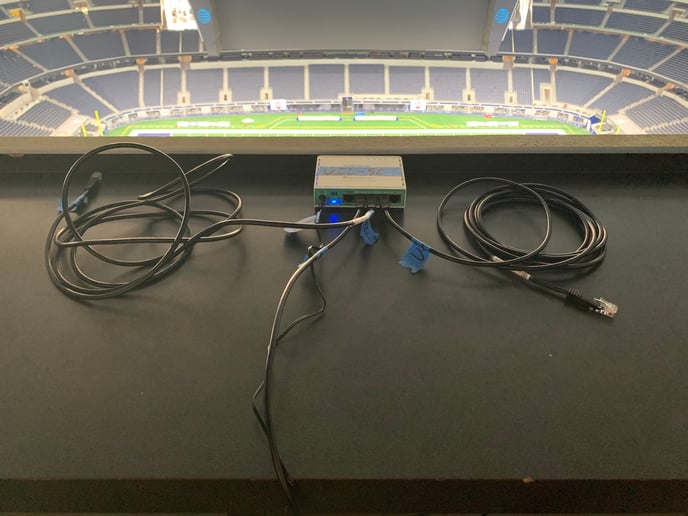

Filming in the Crow's Nest
Connect RCKs to the ethernet cables labeled UIL coming from the switch.
