      This page shows examples of a Wave Bridge - Micro to Pico with an SBU at each station.

      Shortcuts

      Unboxing

      2 wave bridge plus extras micro to pico (boxed) 1 BOX Contents:

      • 2 Micro boxes
      • 2 U7 antennas
      • 2 SBU power supplies with Picos
      • 3 bags of extra parts

      wave micro, 10e, 3e (packed)

      2 Micro Boxes:

      • 2 Wave - Micros w/48V POE
      • 1x 10' ethernet
      • 1x 3' ethernet





      Wave Micro bridge to home sideline

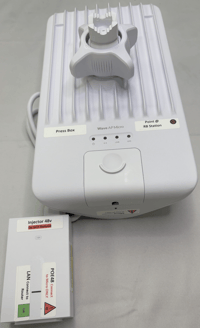

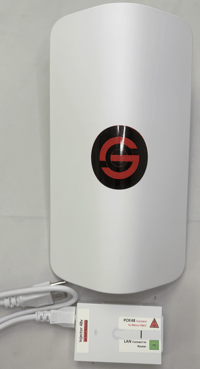

      RB home bridge micro, 48V (front)   RB home bridge micro, 48V (back)

      Wave Pico home sideline station

      • to bridge to Micro
      • U7 provides SCV-Sideline-XXXXX WiFi access for iPads

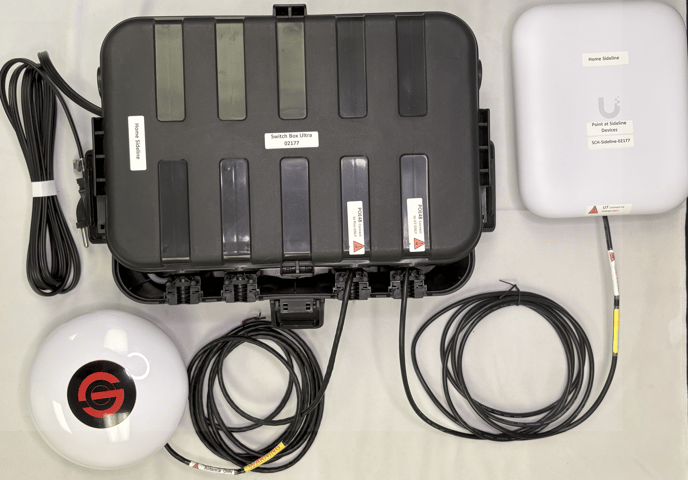

      RB home sideline SBU pico-u7 (closed)

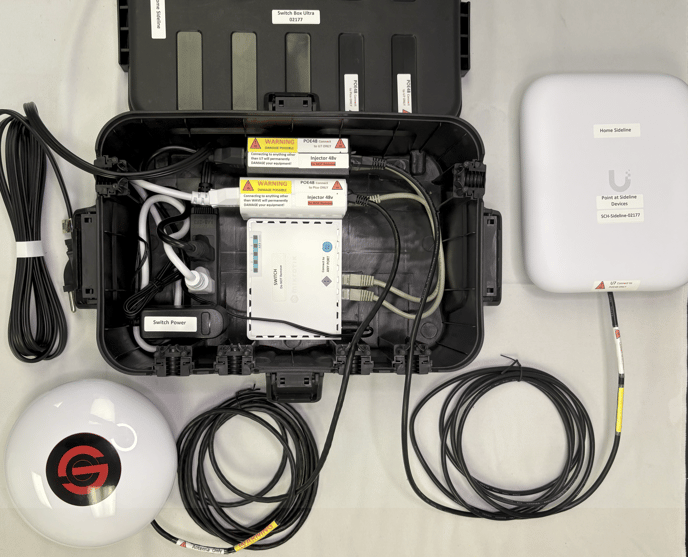

      RB home sideline SBU pico-u7 (open)

      Wave Micro bridge to visitor sideline

      RW visitor bridge micro, 48V (front)   RW visitor bridge micro, 48V (back)

      Wave Pico visitor sideline station

      • to bridge to Micro
      • U7 provides SCV-Sideline-XXXXX WiFi access for iPads

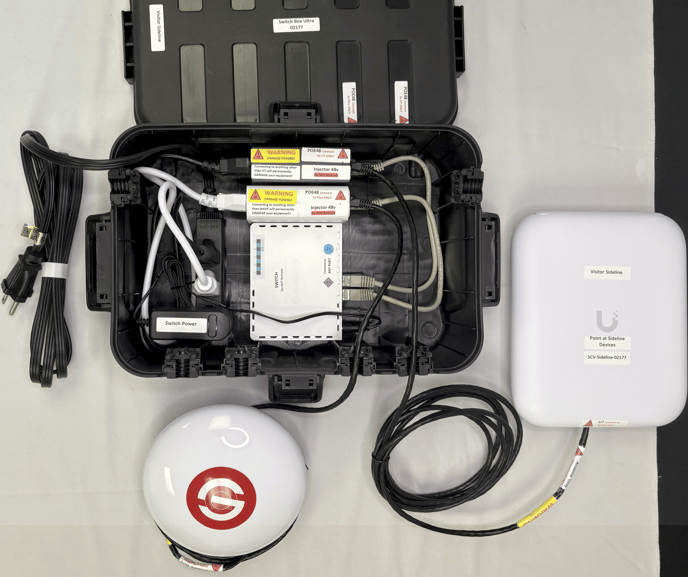

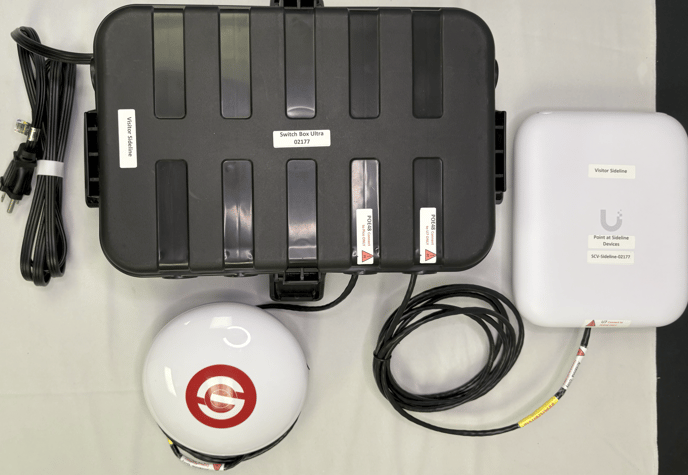

      RW visitor sideline SBU pico-u7 (closed)

      RW visitor sideline SBU pico-u7 (open)





      EXTRA Parts

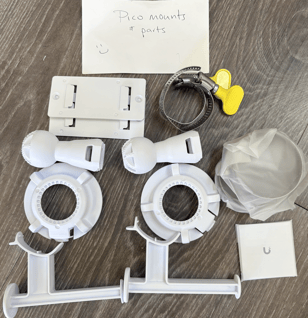

      pico mounts, clampsPico Parts:

      • clamps & mounts for 2 Picos









      u7 mounts, clamps, omni rods, Micro & U7 Parts:

      • mounts for 2 Micros
      • clamps for 2 U7s
      • omnidirectional rods for 2 U7s
      • type c ethernet adapter





      green router, pi host, powerBrains:

      • green gigabit router w/power
      • Pi host w/flat power and on/off power switch
