Obsidian Plus 5 Coach & Official Replay Shared / 10AC3M2MDNHGRGS-6P5RP-5SB-CORSH

This kit has 6 stations and 5 remote camera kits. The HostBox is located at the ReviewStation and the station equipment is located in the StationBox.

PAGE SHORTCUTS:

• Host Box, Station Box
• Power Supply
• RCK (Remote Camera Kit)

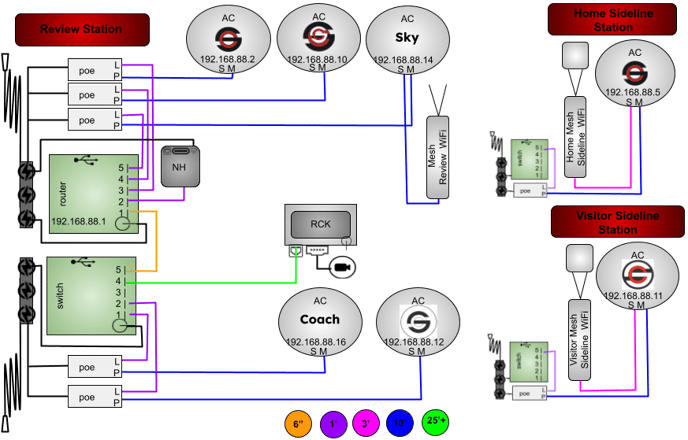

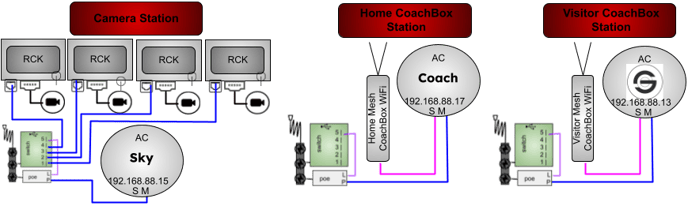

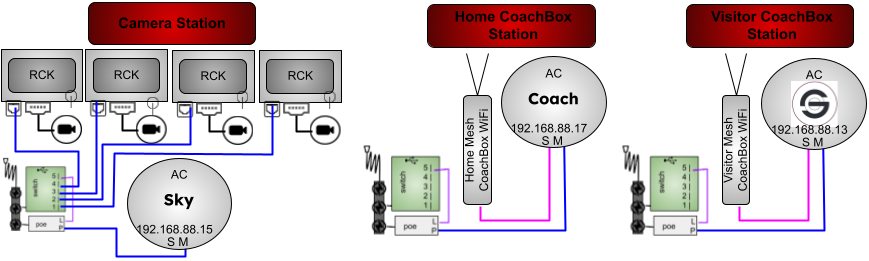

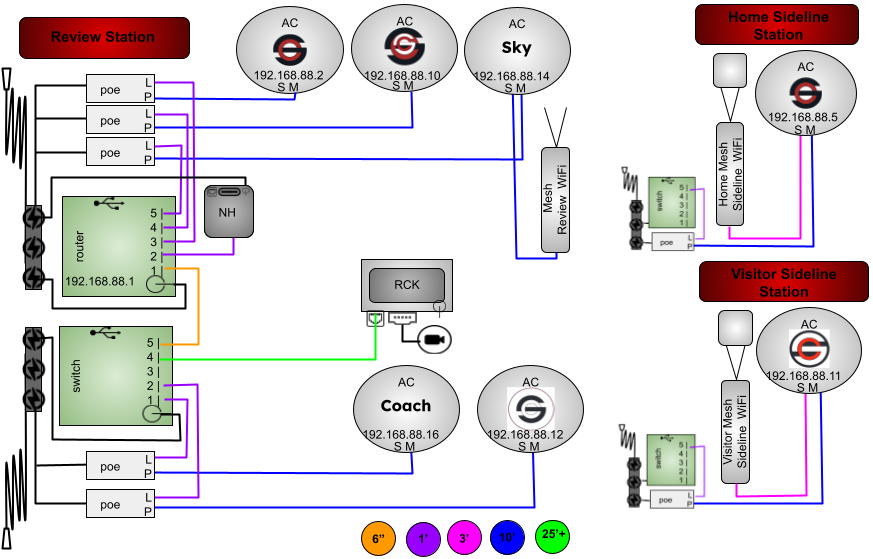

• Diagram
• Training Link
• QR & Overview

PARTS:

• 6 stations: Review, Camera, Home CoachBox, Visitor CoachBox, Home Sideline, Visitor Sideline
• Nuc Host and Green Gigabit Router
• 10 AC Bridge Antennas: RB, RWB, BW, SKY, COACH
• 1 Mesh Review AP for officials
• 2 Mesh CoachBox APs
• 2 Mesh-UMAD Sideline APs
• 5 Remote Camera Kits
• 5 Switchboxes

HELPFUL LINKS:

• Setup Instructions
• Diagram Part 1 & Diagram Part 2
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 10AC3M2MDNHGRGS-6P5RP-5SB-CORSH
• Your kit style is a Obsidian Plus 5 Coach & Official Replay Shared

TOP

Obsidian Plus 5 Coach & Official Replay Shared

10AC3M2MDNHGRGS-6P5RP-5SB-CORSH

HOST BOX (brains)

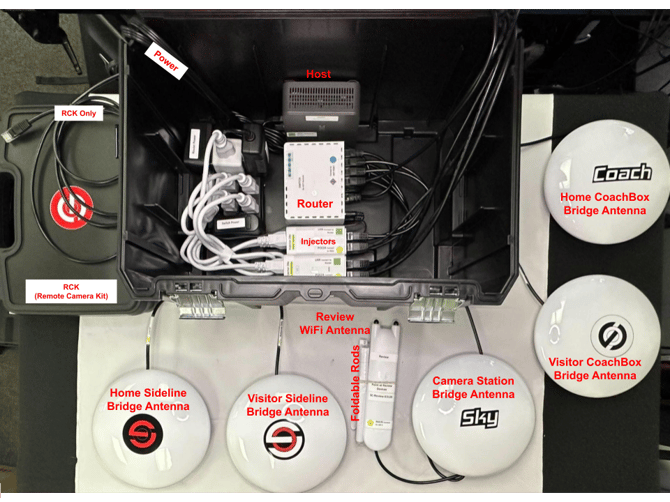

REVIEW STATION: 1 host box, 1 RCK, 5 bridge antennas, 1 mesh access point

You will need 3 power outlets: two to power the host box and one to power the RCK. The 5 round antennas will mount to one of your stands and point at the field as indicated by their labels.

Use a long ethernet cable to run from the switch to the end zone RCK.

* The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the official's iPad and will ensure fastest download speeds when placed in the tent. Attach the foldable rods to the top of the mesh antenna and place it in the tent.

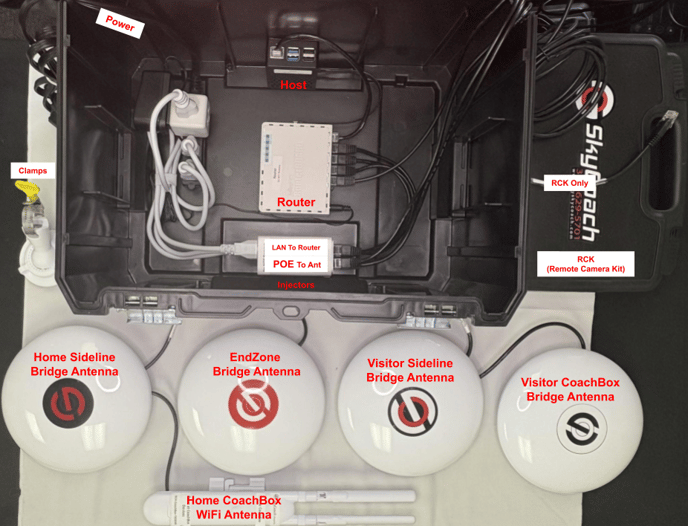

[replace this picture!]

• 1 AC red/black stickered antenna to bridge to the Home Sideline Station
• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station
• 1 AC COACH stickered antenna to bridge to the Home CoachBox Station
• 1 AC black/white stickered antenna to bridge to the Visitor CoachBox Station
• 1 AC SKY stickered antenna to bridge to the Camera Station Station
• 1 Mesh Review-WiFi antenna to connect to device for officials
  • SC-Review-XXXXX for the review tent

• 1 long ethernet cable for your EndZone RCK

• 1 green gigabit router

• 1 NUC host server

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox (repeat for home and visitor sidelines)



You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
• 2 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
  • SCH-Sideline-XXXXX for the home sideline iPads
  • SCV-Sideline-XXXXX for the visitor sideline iPads
• 1 powertube white
• 1 powerbox white (this is to be used on either sideline where you would likley attach the review-wifi antenna)

COACHBOX STATIONS: 1 bridge antenna, 1 mesh access point, 1 switchbox (repeat for home and visitor coach rooms)

You will need 1 power outlet for the power supply. Mount the round antenna to one of the stands and place it with a clear and straight line of sight to the matching antenna at the review tent.

* The "skinny rabbit ear" mesh antenna should be in the room with the coaches. This provides the SCH- and SCV-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds when placed in the room.

• 1 AC COACH stickered antenna in the home coach room to bridge to the review tent
• 1 AC black/white stickered antenna in the visitor coach room to bridge to the review tent
• 1 Mesh CoachBox-WiFi antenna to connect to devices in the coach booth
  • SCH-CoachBox-XXXXX for the home coach booth
  • SCV-CoachBox-XXXXX for the visitor coach booth
• 1 switchbox

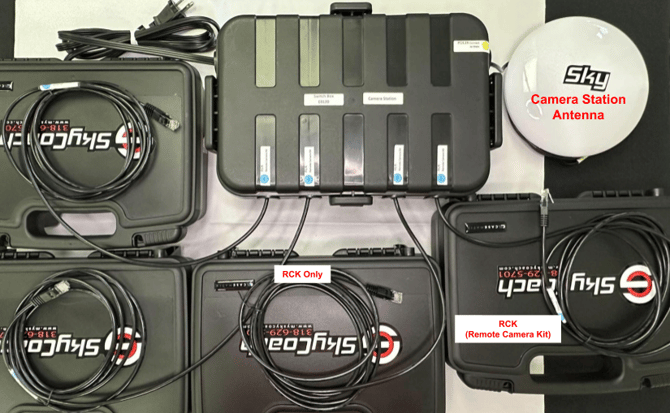

CAMERA STATION: 1 bridge antenna, 4 RCKs, 1 switchbox

You will need 5 power outlets: one for the switchbox and 4 to power the RCKs. The round antenna will point at the matching host box antenna at the review tent as indicated by the label.

You can mount the SKY stickered round bridge antenna to one of the stands or camera stand.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding windowsills, posts, and fencing.

NOTE: The photo above has included the official's mesh access point, as the majority of cases have tied the review station to the endzone. However, in some cases this mesh access point that produces the SC-Review-WiFi will be connected to one of the sideline stations and will require the use of a powerbox in that location (as seen in the home sideline photo above).

• 1 AC SKY stickered antenna to bridge to the review tent
• 4 ethernet cables for your RCKs
• 1 switchbox

TOP

1 POWER SUPPLY type for this model:



Switchbox

• Switchbox with 1 white POE injector

• Injector LAN connects to switch
• The cables exit through designated slots
• The injector red POE24 port uses a 10' ethernet to connect the Main port on the round antenna
• For stations with a WiFi access point:
  • The LAN2 port on the round antenna connects to the WiFi access point, either the mesh with bunny ears or mesh-UMAD with rectangular booster
• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter

TOP



RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP



Obsidian Plus 5 Coach & Official Replay Shared

10AC3M2MDNHGRGS-6P5RP-5SB-CORSH
