This kit has 2 stations and 1 remote camera kit. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.
PAGE SHORTCUTS:
- Host Box, Station Box
- PressBox Station, Sideline Station
- Power Supply
- RCK (Remote Camera Kit)

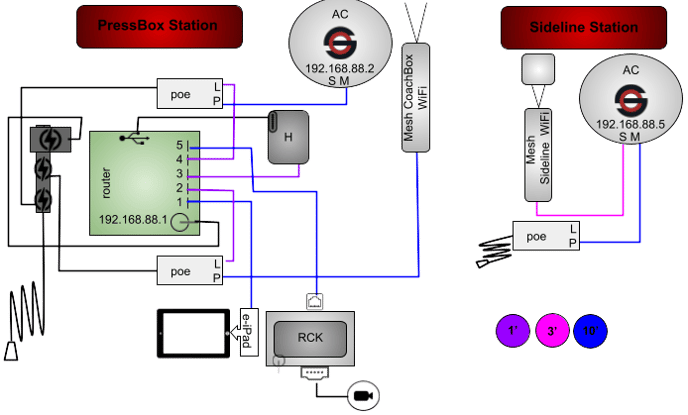

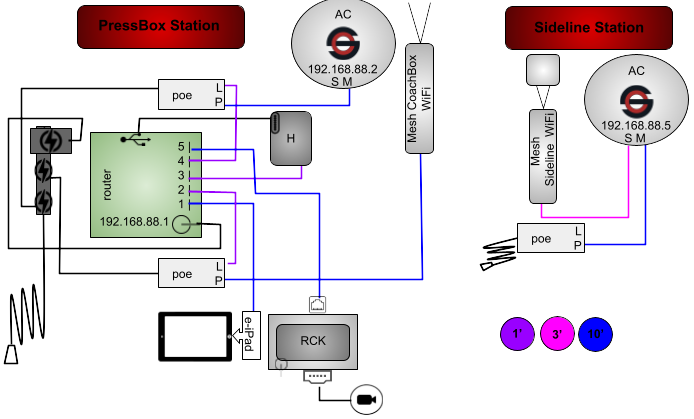

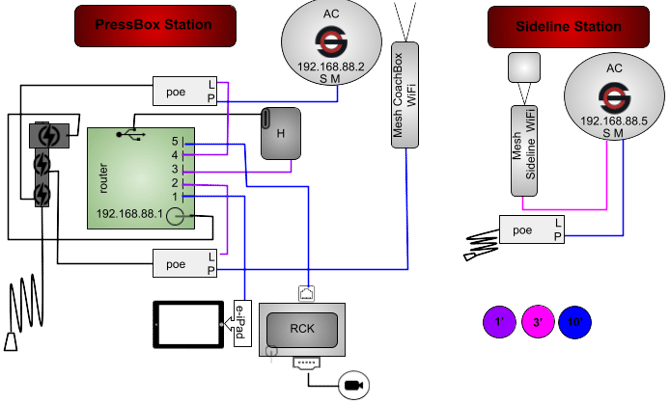

- Diagram
- Training Link
- QR & Overview
PARTS:
- 2 Stations: PressBox, Sideline
- Pi Host and Green Gigabit Router
- 2 AC Bridge Antennas
- 1 Mesh CoachBox AP
- 1 Mesh-UMAD Sideline AP
- 1 Remote Camera Kit
- 1 Powertube
HELPFUL LINKS:
- Setup Instructions, User Guide
.png?width=25&height=25&name=Page%20under%20construction%20(1).png)
[review and combine the 2 files into most recent] - Diagram
- Training Playlist
- Pregame Checklist
- How to Tune Your Network
- Keys to Success
Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
-
Your Kit# found on the outside of your toolbox
-
The username and password for your app found in your SkyCoach Training email
-
The wifi access codes for your kit are found in your SkyCoach Training email
-
This is your model# 2AC1M1MDPHGR-2P1RP-1WT-CR
-
Your kit style is a Silver Coach's Replay
Silver Coach's Replay
2AC1M1MDPHGR-2P1RP-1WT-CR
HOST BOX (brains)
PRESSBOX STATION: 1 host box, 1 RCK, 1 bridge antenna, 1 mesh access point
You will need 2 power outlets: one to power the host box and one to power the RCK. The round antenna will mount to one of your stands and point at the field as indicated by the labels. The host box and RCK will stay with the filmer.
Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.
* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.
- 1 AC red/black stickered antenna to bridge to Sideline
- 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
- SC-CoachBox-XXXXX
- 1 ethernet cable for your RCK
-
1 green gigabit router
-
1 Pi host server
STATION BOX (field equipment)
SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 powertube
You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 35 yard line.
The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.
The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.
Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.
- 1 AC red/black stickered antenna to bridge to pressbox and power the
- 1 Mesh-UMAD Sideline-WiFi antenna that connects to devices on the sideline
- SC-Sideline-XXXXX
- 1 Powertube
1 POWER SUPPLY type for this model:
Powertube
- Powertube with 1 white POE injector
- The cables crossover to exit
-
The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
RCK Pro (Remote Camera Kit)
Power the RCK.- Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
- Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
Once you get all 4 check marks on the RCK you can join the event.
ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
Silver Coach's Replay
2AC1M1MDPHGR-2P1RP-1WT-CR
