Bronze Coach Replay / 2AC(RB)1M1U7PHGR-2P0RP-1PBU-CR

PAGE SHORTCUTS:

• HostBox, StationBox
• 3 Setup Parts

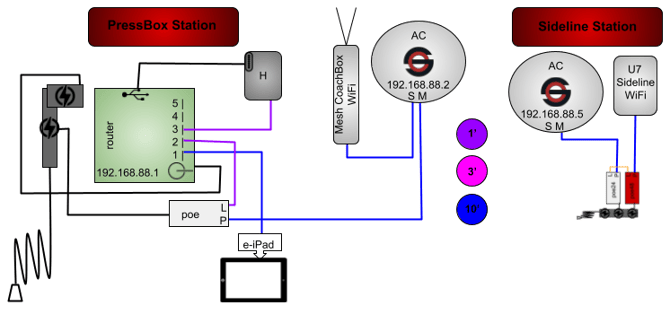

• Diagram
• Power Supply
• Training Link
• QR and Overview

PARTS:

• 2 Stations: PressBox, Sideline
• Pi Host and Green Gigabit Router
• 2 AC Bridge Antennas
• 1 Mesh CoachBox AP
• 1 U7 Sideline AP
• 1 Powerbox ULTRA

HELPFUL LINKS:

• Diagram
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# is found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model#: 2AC(RB)1M1U7PHGR-2P0RP-1PBU-CR

• Your kit style is a Bronze Coach Replay

TOP

3 Parts To Set Up Your Kit

Bronze Coach Replay

2AC(RB)1M1U7PHGR-2P0RP-1PBU-CR

HOST BOX (brains):

PRESSBOX STATION: 1 host box, 1 RCK, 1 bridge antenna, 1 mesh access point

You will need 1 power outlet to power the host box. The round antenna will mount to one of your stands and point at the field as indicated by the labels. The host box will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your red/black round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.

(CHANGE IMAGE - 1 POE, remove RCK)

• 1 green gigabit router

  • 1 Pi host server
  • 1 ethernet cable connected to LAN port on injector

• 1 AC red/black stickered antenna to bridge to Sideline, connected from the POE24 port of injector to the Main port of antenna
  • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
  • This is connected to the LAN2 port of the red/black round antenna

• • • SC-CoachBox-XXXXX

TOP

STATION BOX (field equipment):

SIDELINE  STATION: 1 bridge antenna, 1 powerbox ULTRA, 1 U7 sideline AP

You will need 1 power outlet for each sideline power supply. Mount the 2 antennas to one of the stands and place it at the 35 yard line. The stand should be extended high so the antennas are not obstructed by the players.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions. Be sure to adjust the angle on the round antenna to point up at the matching antenna.

The rectangular U7 antenna is directional and should be pointed down the sideline/player's box towards the ios devices. This provides the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly to the network via an ethernet adapter and powerbox port.

The POE 24v will connect to the main port on the round antenna, also labeled.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 U7 Sideline-WiFi antennas & powerbox ultra to connect to devices on the sideline
  • SCH-Sideline-XXXXX with powerbox ultra for the home sideline iPads

TOP

1 POWER SUPPLY type for this model:

Powerbox ULTRA

• 1 white 24V POE injector

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the main port on the round antenna

• 1 white 48V POE injector
  • The red POE48 port on the injector uses an ethernet cable *labeled with a 48v warning sticker to connect to the IP camera
• The LAN ports on the injectors connect to each other with a 6" ethernet
• The cables crossover to exit

TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)
