This kit has 3 stations and 4 remote camera kits. The press box equipment is located in the Hostbox and the station equipment is located in the StationBox.
PAGE SHORTCUTS:
- Host Box, Station Box
- Review Station, RB Station, RW Station
- Power Supply
- RCK (Remote Camera Kit)
- Diagram
- Training Link
- QR & Overview
PARTS:
- 3 stations: Review Station, 2 Camera Stations
- Nuc Host and Green Gigabit Router
- 4 AC Bridge Antennas
- 1 Mesh Review AP for officials
- 4 Remote Camera Kits
- 2 powertubes white
HELPFUL LINKS:
- Setup Instructions, User Guide
.png?width=25&height=25&name=Page%20under%20construction%20(1).png)

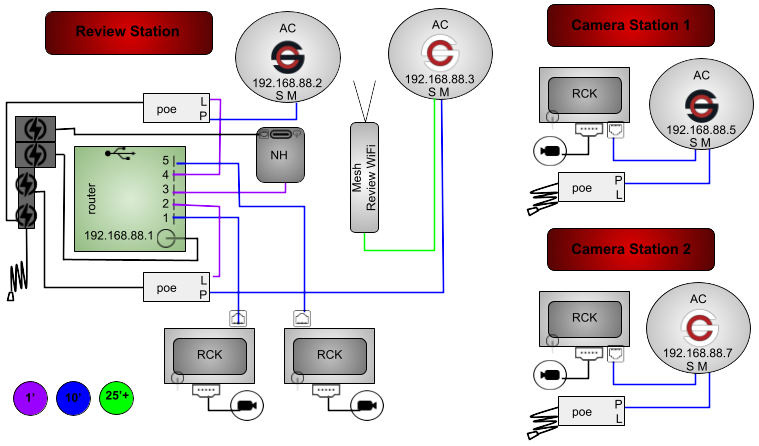

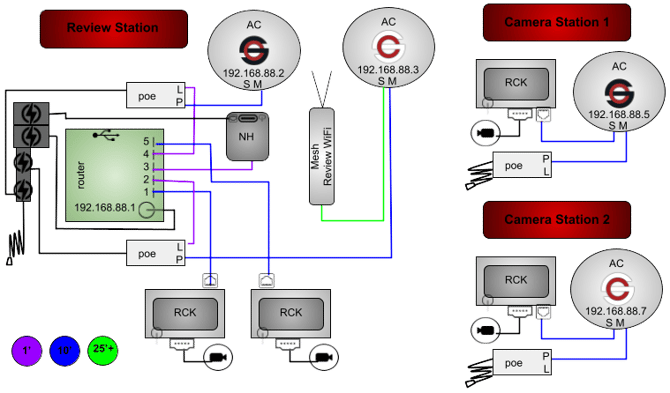

[review and combine the 2 files into most recent] - Diagram
- Training Playlist
- Pregame Checklist
- How to Tune Your Network
- Keys to Success
Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
- Your Kit# found on the outside of your toolbox
- The username and password for your app found in your SkyCoach Training email
- The wifi access codes for your kit are found in your SkyCoach Training email
- This is your model# 4AC1MPHGR-3P4RP-2WT-GOR
- Your kit style is a Platinum Plus 4 Official's Replay Gen
Platinum Plus 4 Official's Replay, Gen
4AC1MNHGR-3P4RP-2WT-GOR

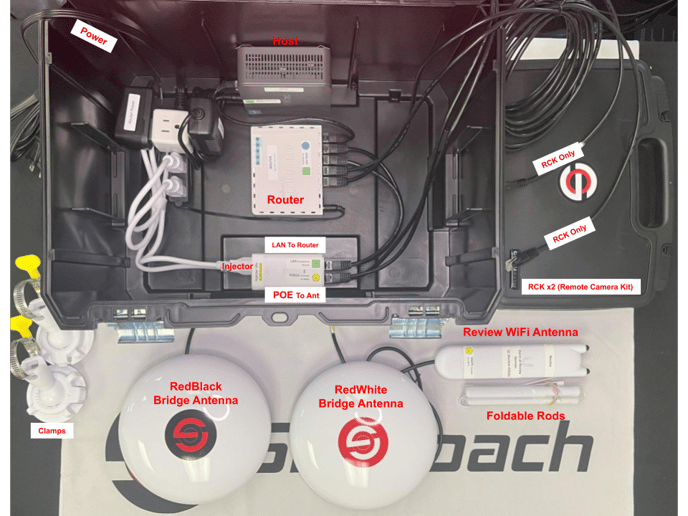

HOST BOX (brains)
REVIEW STATION: 1 host box, 2 RCKs, 2 bridge antennas, 1 mesh access point
You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.
You can use a long ethernet cable to run from the LAN2 port on either round bridge antenna to the skinny mesh review access point. Attach the foldable rods to the top of the mesh antenna and place it at the score table.
* The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the officials and will ensure fastest download speeds when placed near the review iPad.
- 1 AC red/black stickered antenna to bridge to matching antenna
- 1 AC red/white stickered antenna to bridge to matching antenna
- 1 Mesh Review-WiFi antenna to connect to official's device
- SC-Review-XXXXX for the score table
- 2 ethernet cables for your RCKs
-
1 green gigabit router
-
1 Nuc host server
STATION BOX (field equipment)
CAMERA STATIONS: 1 bridge antenna, 1 RCK, 1 powertube (repeat)
You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.
*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the basketball goals.
- 1 AC red/white stickered antenna to bridge to the host box
- 1 AC red/white stickered antenna to bridge to the host box
-
1 ethernet cable for your RCK
- 1 white powertube
1 POWER SUPPLY type for this model:
Powertube
- Powertube with 1 white POE injector
- The cables crossover to exit
-
The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
RCK Pro (Remote Camera Kit)
Power the RCK.- Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
- Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
Once you get all 4 check marks on the RCK you can join the event.
ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
Platinum Plus 4 Official's Replay, GOR
4AC1MNHGR-3P4RP-2WT-GOR
