This kit has 4 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.
PAGE SHORTCUTS:
- Host Box, Station Box
- PressBox Station, Sideline Stations, EndZone Station
- Power Supply
- RCK (Remote Camera Kit)

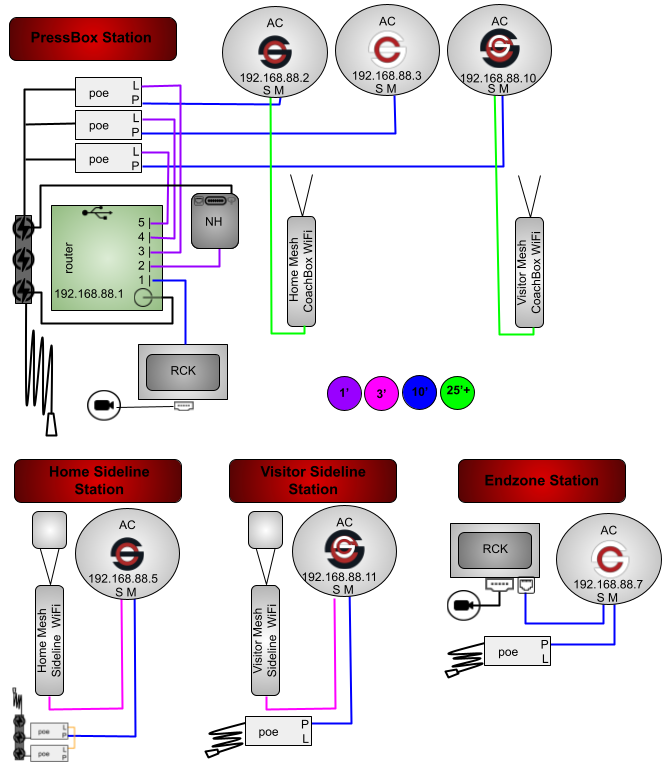

- Diagram
- Training Link
- QR & Overview
PARTS:
- 4 Stations: PressBox, Home Sideline, Visitor Sideline, EndZone
- Nuc Host and Green Gigabit Router
- 6 AC Bridge Antennas
- 2 Mesh CoachBox APs
- 2 Mesh w/UMAD Sideline APs
- 2 Remote Camera Kits
- 2 Powertube
- 1 Powerbox
HELPFUL LINKS:
- Setup Instructions
- Diagram
- Pregame Checklist
- How to Tune Your Network
- Keys to Success
- Capture Video Feed at Cameras using Fiber
- Capture Video Feed in Coach Room using Fiber
- Capture Video Feed in Control Room using Fiber - SEC
Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
- Your Kit# found on the outside of your toolbox
- The username and password for your app found in your SkyCoach Training email
- The home and visitor wifi codes for your kit found in your SkyCoach Training email
- This is your model# 6AC2M2MDNHGR-4P2RP-2WT1WB-CRSH
- Your kit style is a Diamond Coach's Replay Shared
Diamond Coach's Replay, Shared
6AC2M2MDNHGR-4P2RP-2WT1WB-CRSH

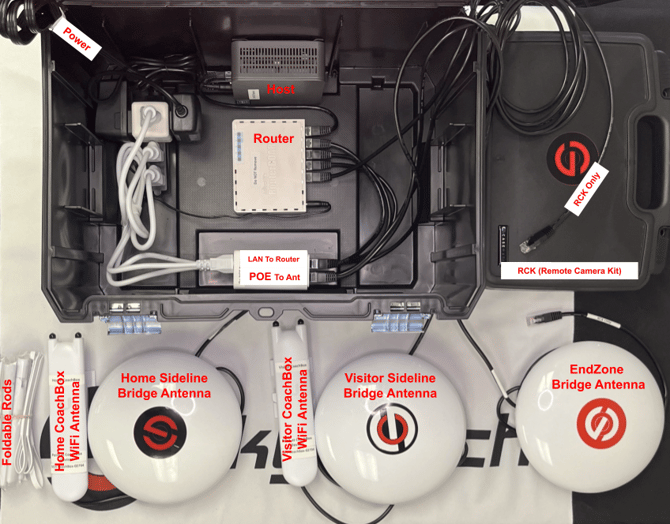

HOST BOX (brains)
PRESSBOX STATION: 1 host box, 1 RCK, 3 bridge antennas, 2 mesh access points
You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.
Use a long ethernet cable to run from the LAN2 port on your home/visitor round bridge antenna to the respective home/visitor coach room access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.
* The "skinny rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fastest download speeds when placed in the room.
- 1 AC red/black stickered antenna to bridge to Home Sideline
- 1 AC red/white/black stickered antenna to bridge to Visitor Sideline
- 1 AC red/white stickered antenna to bridge to EndZone
- 2 Mesh CoachBox-WiFi antennas to connect to devices in the press box
- SCH-CoachBox-XXXXX for the home coach booth
- SCV-CoachBox-XXXXX for the visitor coach booth
- 1 Ethernet cable for your RCK
-
1 green gigabit router
-
1 Nuc host server
STATION BOX (field equipment)
SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 power supply (repeat for home and visitor)
You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.
The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.
The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.
Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.
- 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
- 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
- 2 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
- SCH-Sideline-XXXXX for the home sideline iPads
- SCV-Sideline-XXXXX for the visitor sideline iPads
- 1 white powertube
- 1 white powerbox (this is to be used on either sideline where you would likley attach the review-wifi antenna)
END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube
You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.
You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.
*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.
- 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
-
1 ethernet cable for your RCK
- 1 powertube
2 POWER SUPPLY types for this model:
Powertube
- Powertube with 1 white POE injector
- The cables crossover to exit
-
The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
Powerbox
-
Powerbox with 2 white POE injectors
- LAN to LAN connected with 6" ethernet
- The cables crossover to exit
- The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The open POE port on the top injector can be left empty OR connect to the SC-Review-WiFi "bunny ear" antenna OR connect a device (like RCK or iPad) to the network
RCK Pro (Remote Camera Kit)
Power the RCK.- Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
- Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
Once you get all 4 check marks on the RCK you can join the event.
ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
Diamond Coach's Replay, Shared
6AC2M2MDNHGR-4P2RP-2WT1WB-CRSH
