Diamond Coach Replay, Shared / 6AC2M2MDPHGR-4P2RP-3WT2SB-CRSH

PAGE SHORTCUTS: [check these links]

Host Box, Station Box
Power Supply
RCK (Remote Camera Kit)

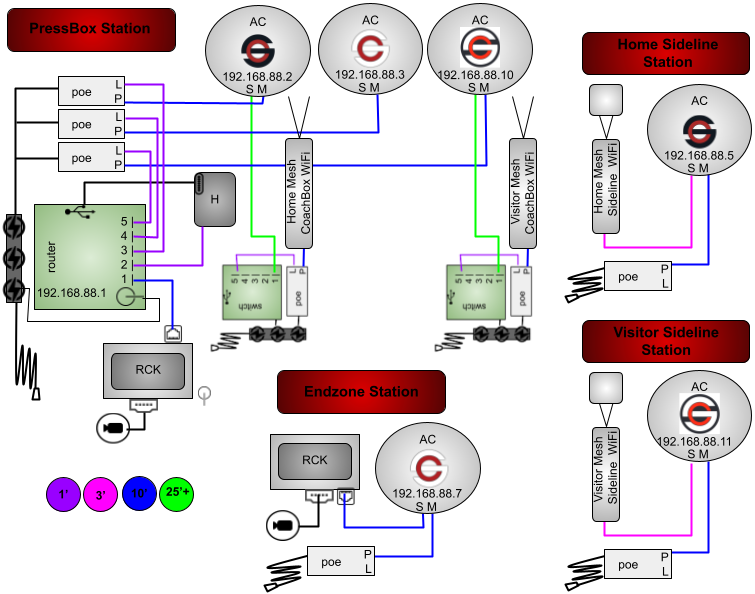

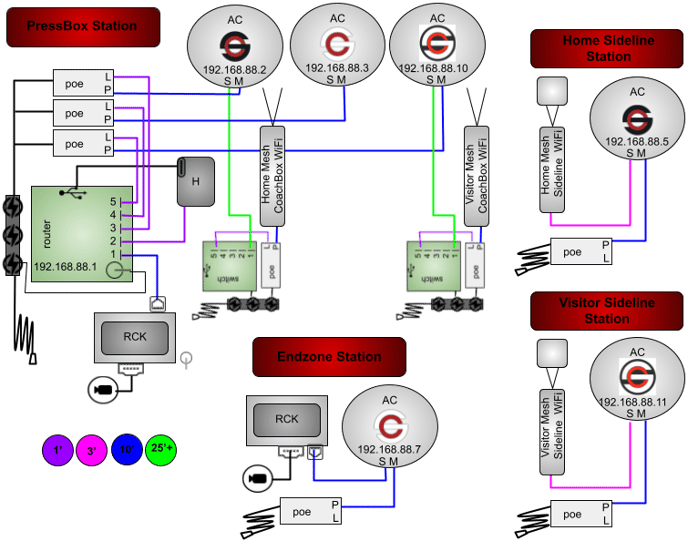

Diagram
Training Link
QR & Overview

PARTS:

4 Stations: PressBox, Home Sideline, Visitor Sideline, EndZone
Pi Host and Green Gigabit Router
6 AC Bridge Antennas: RB, RW, RWB
2 Mesh CoachBox APs
2 Mesh w/UMAD Sideline APs
2 Remote Camera Kits
3 Powertube
2 Switchboxes

HELPFUL LINKS:

Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

Please make note of the following:

Your Kit# found on the outside of your toolbox
The username and password for your app found in your SkyCoach Training email
The wifi codes for your kit found in your SkyCoach Training email
This is your model# 6AC2M2MDNHGR-4P2RP-3WT2SB-CRSH
Your kit style is a Diamond Coach Replay Shared

TOP

Diamond Coach's Replay, Shared

6AC2M2MDPHGR-4P2RP-3WT2SB-CRSH

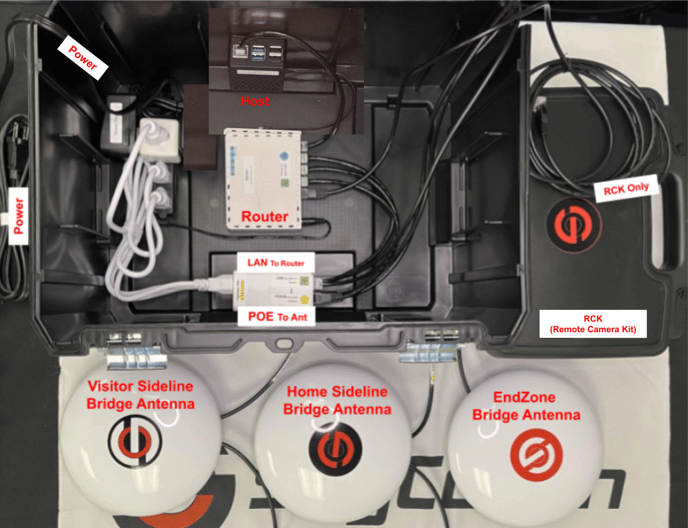

HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 3 bridge antennas, 2 mesh access points, 2 switchboxes

You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your home/visitor round bridge antenna to the respective home/visitor coach room and connect to switchbox PORT1 containing the coachbox access point.

1 AC red/black stickered antenna to bridge to the Home Sideline Station
- connect to home coach room switchbox
1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station
- connect to visitor coach room switchbox

1 AC red/white stickered antenna to bridge to the EndZone Station
1 ethernet cable for your RCK
1 green gigabit router
1 Nuc host server

Home/Visitor switchboxes connect to the PressBox Station

There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.

Use a long ethernet cable (pictured on the cable winder in the top left corner of the photos) to run from the LAN2 port on your Home/Visitor round bridge antenna to PORT 1 on your Home/Visitor CoachBox switch, as pictured below.

* The LAN2 port on your Home/Visitor bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.

1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room
- SCH-CoachBox-XXXXX with switchbox for the home coach booth
1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room
- SCV-CoachBox-XXXXX with switchbox for the visitor coach booth
2 switchboxes

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 powertube (repeat for home and visitor)

You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.

1 AC red/black stickered antenna for home sideline to bridge to the pressbox
- 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
  - SCH-Sideline-XXXXX for the home sideline iPads
1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
- 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
  - SCV-Sideline-XXXXX for the visitor sideline iPads
2 powertubes

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

1 AC red/white stickered antenna in the end zone to bridge to the pressbox
- 1 ethernet cable for your RCK
1 powertube

TOP

2 POWER SUPPLY types for this model:

Powertube

1 white POE injector
- The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
The cables crossover to exit

TOP

Switchbox (for coach room)

1 white POE injector
- LAN connects to switch
- The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the Mesh SC-CoachBox-WiFi bunny antenna
1 green switch
- PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box
- The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
The cables exit through designated slots

RCK Pro (Remote Camera Kit)

Power the RCK.
Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
