Diamond Coach's & Official's Replay, Shared / 6AC3M2MDPHGR-4P2RP-2WT1WB-CORSH

This kit has 4 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.

PAGE SHORTCUTS:

• Host Box, Station Box
• PressBox Station, Sideline Stations, EndZone Station
• Review Station
• Power Supply
• RCK (Remote Camera Kit)

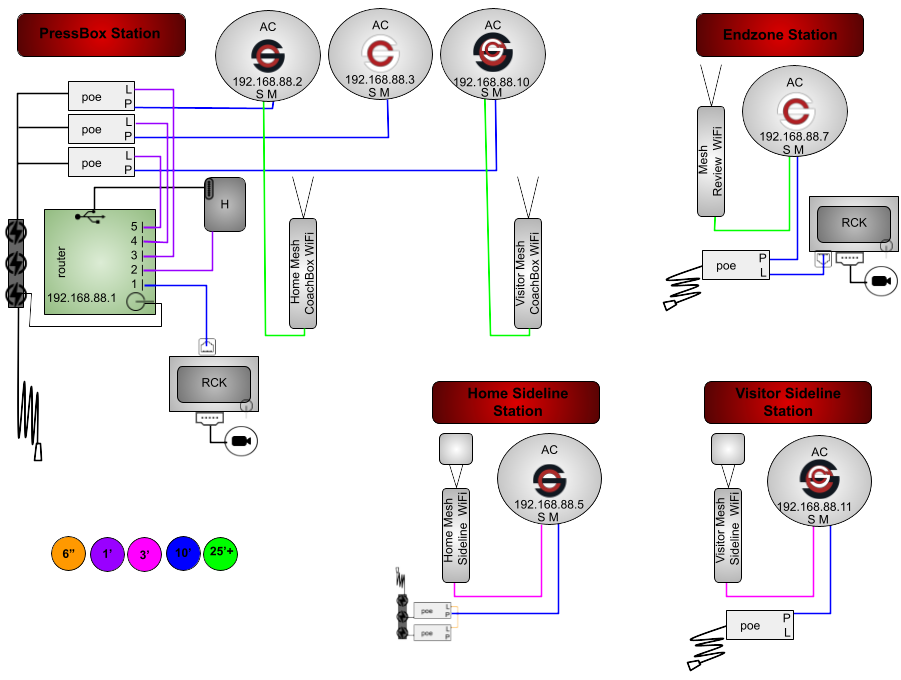

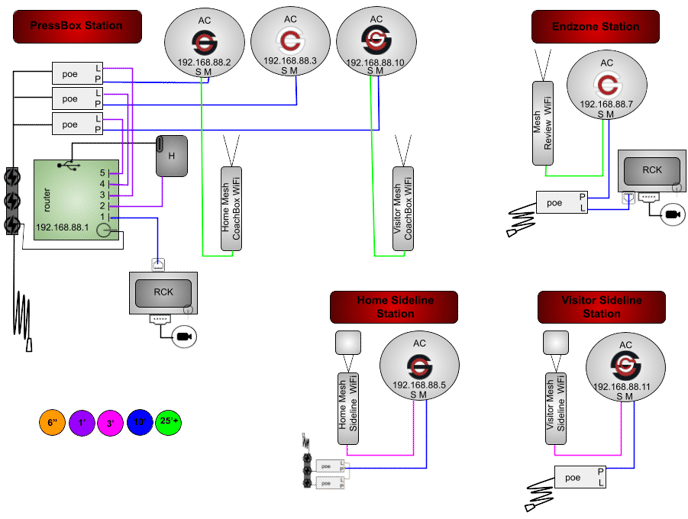

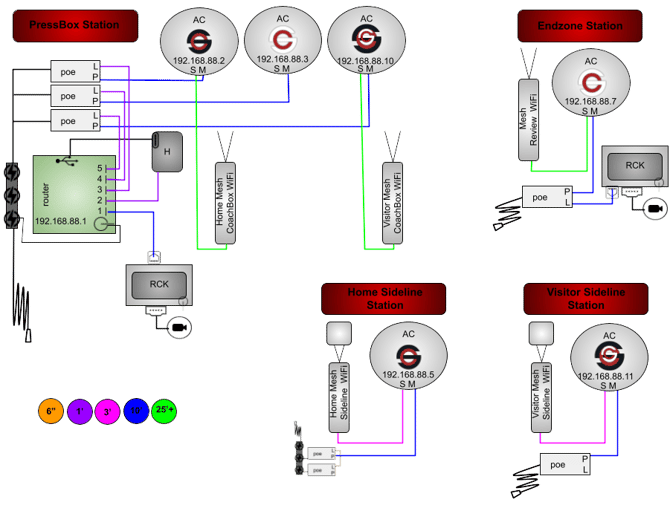

• Diagram
• Training Link
• QR & Overview

PARTS:

• 4 stations: PressBox, Home Sideline, Visitor Sideline, and EndZone
• Pi Host and Green Gigabit Router
• 6 AC Bridge Antennas
• 1 Mesh Review AP for officials
• 2 Mesh CoachBox APs
• 2 Mesh-UMAD Sideline APs
• 2 Remote Camera Kits
• 2 powertubes white
• 1 powerbox white

HELPFUL LINKS:

• Setup Instructions
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 6AC3M2MDPHGR-4P2RP-2WT1WB-CORSH
• Your kit style is a Diamond Coach's & Official's Replay Shared

TOP

Diamond Coach's & Official's Replay, Shared

6AC3M2MDPHGR-4P2RP-2WT1WB-CORSH

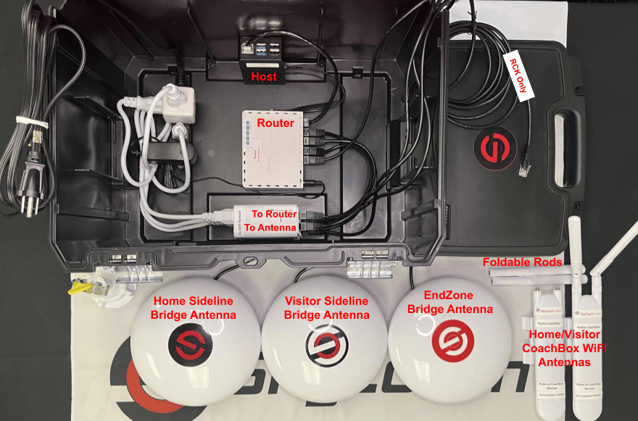

HOST BOX (brains)

PRESS BOX STATION: 1 host box, 1 RCK, 3 bridge antennas, 2 mesh access points

You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your home/visitor round bridge antenna to the respective mesh home/visitor coachbox access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The "skinny rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fastest download speeds when placed in the room.

• 1 AC red/black stickered antenna to bridge to Home Sideline
• 1 AC red/white/black stickered antenna to bridge to Visitor Sideline
• 1 AC red/white stickered antenna to bridge to EndZone
• 2 Mesh CoachBox-WiFi antennas to connect to devices in the press box
  • SCH-CoachBox-XXXXX for the home coach booth
  • SCV-CoachBox-XXXXX for the visitor coach booth
• 1 ethernet cable for your RCK

• 1 green gigabit router

• 1 Pi host server

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 bridge antenna, 1 mesh-UMAD access point, 1 power supply (repeat for home and visitor)



You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
• 2 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
  • SCH-Sideline-XXXXX for the home sideline iPads
  • SCV-Sideline-XXXXX for the visitor sideline iPads
• 1 powertube white
• 1 powerbox white (this is to be used on either sideline where you would likley attach the review-wifi antenna)

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 mesh access point, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

NOTE: The photo above has included the official's mesh access point, as the majority of cases have tied the review station to the endzone. However, in some cases this mesh access point that produces the SC-Review-WiFi will be connected to one of the sideline stations and will require the use of a powerbox in that location (as seen in the home sideline photo above).

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
• 1 Mesh Review-WiFi antenna to connect to official's device
  • SC-Review-XXXXX for the official's iPad
• 1 ethernet cable for your RCK
• 1 powertube white

TOP

REVIEW STATION: 1 mesh access point

TOP

2 POWER SUPPLY types for this model:

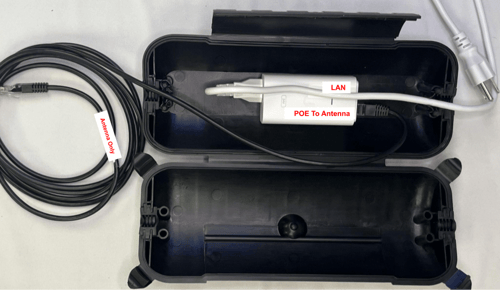

Powertube

• Powertube with 1 white POE injector
• The cables crossover to exit

• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

• The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

Powerbox (for sideline; to connect review-wifi)



• Powerbox with 2 white POE injectors

• LAN to LAN connected with 6" ethernet
• The cables crossover to exit
• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
• The open POE port on the top injector can be left empty OR connect to the SC-Review-WiFi "bunny ear" antenna OR connect a device (like RCK or iPad) to the network

TOP

RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP

Diamond Coach's & Official's Replay, Shared

6AC3M2MDPHGR-4P2RP-2WT1WB-CORSH
