This kit has 5 stations and 4 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.
PAGE SHORTCUTS:
PARTS:
- 5 stations: PressBox, Review, Visitor Sideline, Camera, EndZone
- Nuc Host and Green Gigabit Router
- 8 AC Bridge Antennas
- 1 Mesh Review AP for officials
- 2 Mesh CoachBox APs
- 2 Mesh-UMAD Sideline APs
- 4 Remote Camera Kits
- 3 Switchboxes
- 1 Switchbox Plus
HELPFUL LINKS:
- Setup Instructions

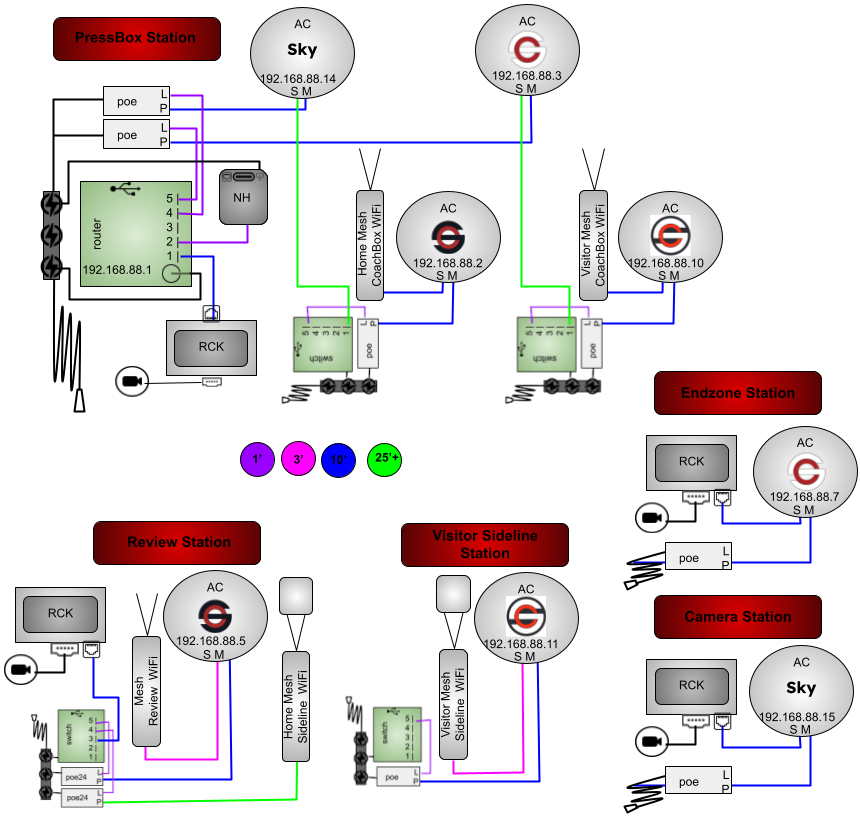

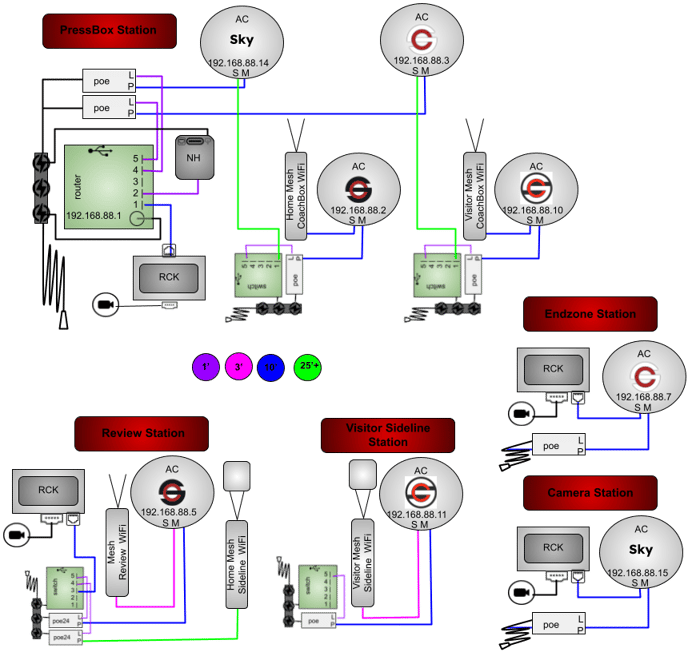

- Diagram
- Training Playlist
- Pregame Checklist
- How to Tune Your Network
- Keys to Success
Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
- Your Kit# found on the outside of your toolbox
- The username and password for your app found in your SkyCoach Training email
- The wifi access codes for your kit are found in your SkyCoach Training email
- This is your model# 8AC3M2MDNHGR-5P4RP-2WT3SB1SBP-CORSH
- Your kit style is a Titanium Plus 4 Coach & Official Replay Shared
Titanium Plus 4 Coach & Official Replay Shared
8AC3M2MDNHGR-5P4RP-2WT3SB1SBP-CORSH
HOST BOX (brains)
PRESSBOX STATION: 1 host box, 1 RCK, 4 bridge antennas, 2 mesh access points, 2 switchboxes
You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.
Use a long ethernet cable to run from the LAN2 port on your round SKY bridge antenna to the home coach room and connect to switchbox PORT1 containing the coachbox access point and round RedBlack bridge antenna.
Use another long ethernet cable to run from the LAN2 port on your round RedWhite bridge antenna to the visitor coach room and connect to switchbox PORT1 containing the coachbox access point and round RedWhiteBlack bridge antenna.
[replace this pic! 1 rck, sky, rw, nhgr]
- 1 AC SKY stickered antenna to bridge to the Camera Station
- connect to home coach room switchbox
- 1 red/black stickered antenna to bridge to the Review Station
- 1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room
- SCH-CoachBox-XXXXX with switchbox for the home coach booth
- 1 AC red/white stickered antenna to bridge to the EndZone Station
- connect to visitor coach room switchbox
- 1 red/white/black stickered antenna to bridge to the visitor sideline station
- 1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room
- SCV-CoachBox-XXXXX with switchbox for the visitor coach booth
- 1 ethernet cable for your RCK
-
1 green gigabit router
-
1 Nuc host server
Home/Visitor switchboxes are connected to the PressBox Station
There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.
Use a long ethernet cable (pictured on the cable winder in the top left corner of the photos) to run from the LAN2 port on your Home/Visitor round bridge antenna to PORT 1 on your Home/Visitor CoachBox switch, as pictured below.
* The LAN2 port on your Home/Visitor bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna.
Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.
*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.
STATION BOX (field equipment)
VISITOR SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox
You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.
The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.
The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.
Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.
- 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
- 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
- SCV-Sideline-XXXXX with switchbox for the visitor sideline iPads
- 1 Switchbox
REVIEW STATION: 1 bridge antenna, 1 RCK, 1 mesh access point, 1 mesh-UMAD access point, 1 switchbox plus
[replace these pictures!!!!: RB, rev-wifi, sch-sl-wifi MD, 1 rck, switchbox plus]
You will need 1 power outlet for the review station power supply. Mount the home sideline access point with UMAD to one of the stands and place it at the 35 yard line.
The round bridge antenna will be at the review tent and point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.
The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.
Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 2 ethernet access points.
- 1 AC red/black stickered antenna for review station to bridge to the pressbox
- 1 Mesh Review-WiFi antenna to connect to devices for officials
- SC-Review-XXXXX with switchbox for iPads
- 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
- SCH-Sideline-XXXXX
- 1 ethernet cable for your RCK
- 1 Switchbox Plus
END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube
You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.
You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.
*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.
- 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
-
1 ethernet cable for your RCK
- 1 powertube

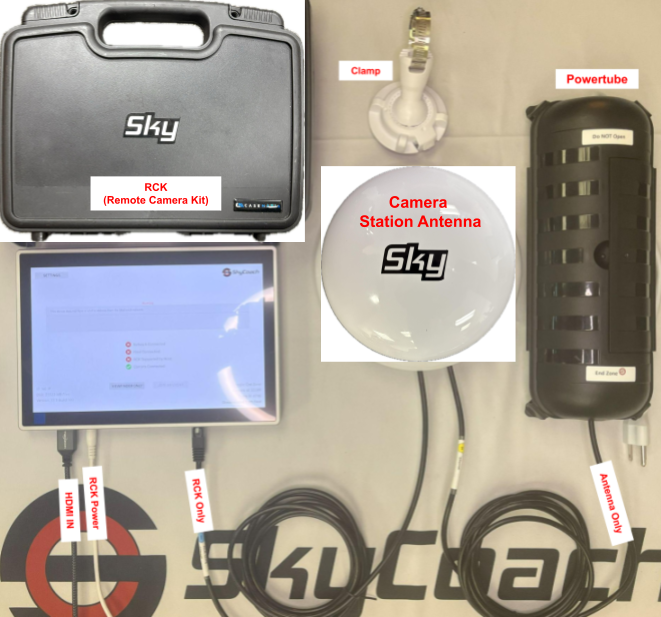

CAMERA STATION: 1 bridge antenna, 1 RCK, 1 powertube
You will need 1 power outlet for the power supply. Mount the round antenna to one of the stands and place it with a clear and straight line of sight to the matching antenna at the review tent.
* The "skinny rabbit ear" mesh antenna should be in the room with the coaches. This provides the SCH- and SCV-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds when placed in the room.
- 1 AC SKY stickered antenna at the camera location to bridge to the pressbox
-
1 ethernet cable for your RCK
- 1 powertube
3 POWER SUPPLY types for this model:
Powertube
- 1 white POE injector
- The cables crossover to exit
-
The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
Switchbox Plus (for review station)
-
Switch with 2 white POE injectors
- both injector LAN ports connect to switch
- one injector red POE24 port uses a 10' ethernet to connect the Main port on the round antenna
- the other injector red POE24 port uses a 100' ethernet to connect the Main port on the mesh-UMAD home sideline antenna
- The cables exit through designated slots
- For stations with a WiFi access point:
- The LAN2 port on the round antenna connects to the WiFi access point, either the mesh with bunny ears or mesh-UMAD with rectangular booster
- The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
Switchbox (for coach rooms)
-
Switch with 1 white POE injector
- injector LAN port connects to switch
- injector red POE24 port uses a 10' ethernet to connect to the Main port on the Mesh SC-CoachBox-WiFi bunny antenna
- The cables exit through designated slots
- PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box
- The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
Switchbox (for visitor sideline station)
-
Switch with 1 white POE injector
- Injector LAN port connects to switch
- injector red POE24 port uses a 10' ethernet to connect the Main port on the round antenna
- The cables exit through designated slots
- For stations with a WiFi access point:
- The LAN2 port on the round antenna connects to the WiFi access point, either the mesh with bunny ears or mesh-UMAD with rectangular booster
- The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
RCK Pro (Remote Camera Kit)
Power the RCK.- Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
- Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
Once you get all 4 check marks on the RCK you can join the event.
ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
