Titanium Plus 4 Coach & Official Replay Shared / 8AC3M2MDNHGRGS-5P4RP-1WT5SB-CORSH

PAGE SHORTCUTS:

• Host Box, Station Box

• Power Supply

• RCK (Remote Camera Kit)

• Diagram

• Training Link

• For Travel

• QR & Overview

PARTS:

• 5 stations: Press Box, Home Sideline, Visitor Sideline, EndZone, Camera

• Nuc Host and Green Gigabit Router

• 8 AC Bridge Antennas: RB, RW, RWB, SKY

• 1 Mesh Review AP for officials

• 2 Mesh CoachBox APs

• 2 Mesh-UMAD Sideline APs

• 5 Remote Camera Kits

• 1 Powertube

• 1 Powerbox

• 5 Switchboxes

HELPFUL LINKS:

• Setup Instructions

• Diagram

• Training Playlist

• Pregame Checklist

• How to Tune Your Network

• Keys to Success



Please make note of the following:

• Your Kit# found on the outside of your toolbox

• The username and password for your app found in your SkyCoach Training email

• The wifi access codes for your kit are found in your SkyCoach Training email

• This is your model# 8AC3M2MDNHGRGS-5P4RP-1WT5SB-CORSH

• Your kit style is a Titanium Plus 4 Coach & Official Replay Shared

TOP



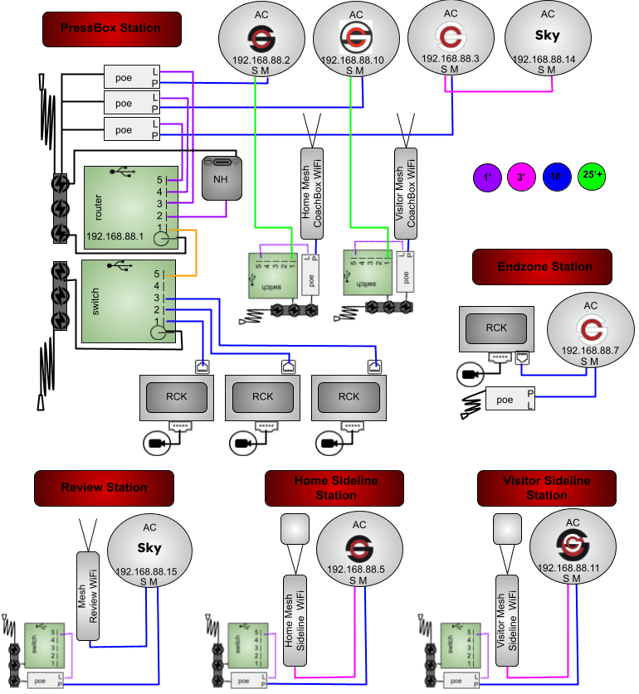

Titanium Plus 4 Coach & Official Replay Shared

8AC3M2MDNHGRGS-5P4RP-1WT5SB-CORSH



HOST BOX (brains)

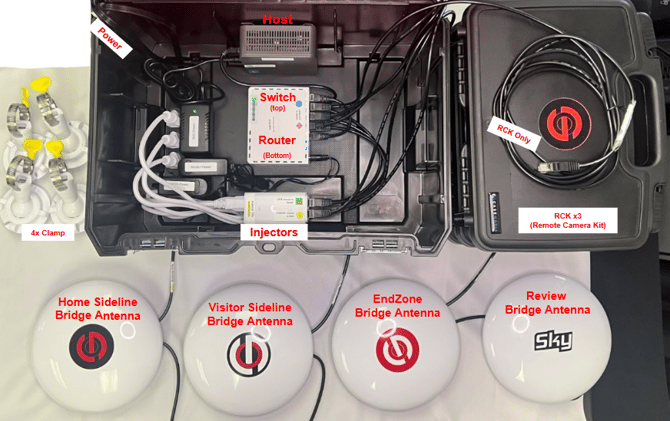

PRESSBOX STATION: 1 host box, 3 RCK, 4 bridge antennas, 2 mesh access points, 5 switchboxes

You will need 2 power outlets: one to power the host box and one to power the RCK. The 4 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your visitor round bridge antenna to the respective visitor coach room and connect to switchbox PORT1 containing the coachbox access point. [UPDATE PHOTO TO CORRECT IMAGE]

• 1 green gigabit router

  • 1 ethernet cable for your RCK

  • 1 Nuc host server

• 1 AC red/black stickered antenna to bridge to the Home Sideline Station
  • connect to home coach room switchbox

• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station
  • connect to visitor coach room switchbox

• 1 AC SKY stickered antenna to bridge to the Camera Station

  • use LAN2 port to connect 1 AC red/white stickered antenna to bridge to the EndZone Station

Home/Visitor switchboxes connect to the PressBox Station

There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.

Use a long ethernet cable (pictured on the cable winder in the top left corner of the photos) to run from the LAN2 port on your Home/Visitor round bridge antenna to PORT 1 on your Home/Visitor CoachBox switch, as pictured below.

* The LAN2 port on your Home/Visitor bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.





• 1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room
  • SCH-CoachBox-XXXXX with switchbox for the home coach booth
• 1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room
  • SCV-CoachBox-XXXXX with switchbox for the visitor coach booth
• 2 switchboxes

TOP



STATION BOX (field equipment)



VISITOR SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 switchbox



You will need 1 power outlet for the sideline power supply. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. This provides the SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.

• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the review station

  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline

    • SCV-Sideline-XXXXX with switchbox for the visitor sideline iPads

• 1 Switchbox

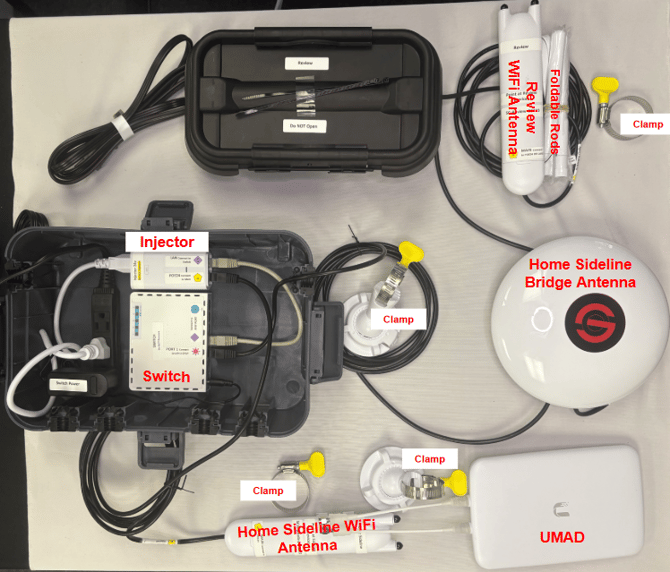

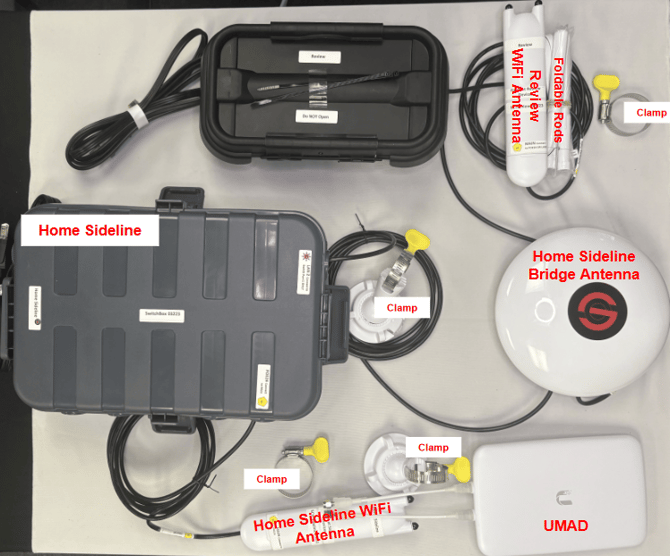

HOME SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 mesh access point, 2 powerbox, 1 switchbox

You will need 1 power outlet at the review station for the powerbox power supply. The powerbox at the review station powers the review bunny and the round red/black stickered station antenna.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions. Use a long ethernet cable from the LAN 2 port on the red/black round station antenna to PORT 1 on your home sideline switch.

Attach the foldable rods to the top of the mesh WiFi antenna "skinny rabbit ear" and place it in the review tent for the officials iPad.

You will need 1 power outlet for the home sideline station power supply.

Use a long ethernet cable from the LAN 2 port on the red/black round station antenna to PORT 1 on your home sideline switch, as pictured below.

Mount the mesh-umad access point to one of the stands and place it at the 35 yard line.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. This provides the SCH-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Your switchbox provides 4 ethernet access points.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox station

  • 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline

    • SCH-Sideline-XXXXX with switchbox for the home sideline iPads

  • 1 Mesh Review-WiFi antenna to connect to the official's device
    • SC-Review-XXXXX with powerbox for the referee iPad
• 1 powerbox
• 1 switchbox

TOP



END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox

  • 1 ethernet cable for your RCK

• 1 powertube

TOP

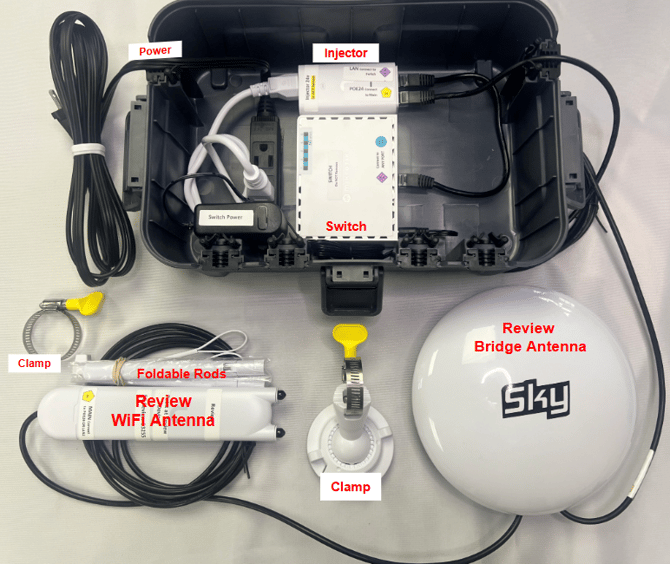

REVIEW STATION: 1 bridge antenna, 1 switchbox, 1 mesh access point

You can mount the SKY round bridge antenna to one of the stands.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

• 1 AC SKY stickered antenna at the camera location to bridge to the pressbox
• 1 switchbox

TOP

FOR TRAVEL:

• DO TAKE the host box, 2 RCKs (wide & endzone), switchbox for home coach room, home sideline bridge and switchbox, endzone bridge and powertube

• DON'T TAKE the coach bridge antennas, visitor sideline bridge, switchbox for visitor coach room, box in the arc, the 3 official's RCKs



Titanium Plus 4 Coach & Official Replay Shared

8AC3M2MDNHGRGS-5P4RP-1WT5SB-CORSH

TOP

RCK Pro (Remote Camera Kit)

1. Power the RCK.

2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.

3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP





3 POWER SUPPLY types for this model:



Powertube (for endzone station)

• 1 white POE injector

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

• The cables crossover to exit

TOP

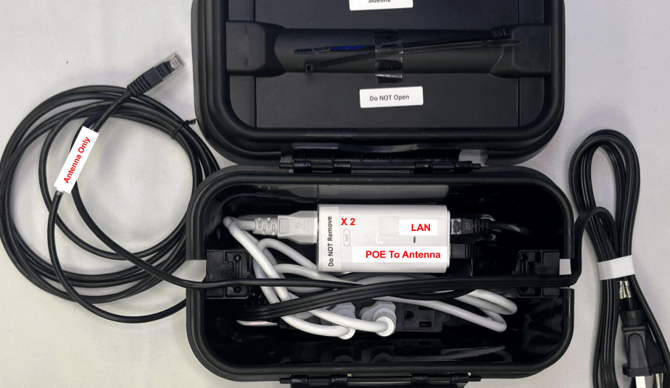

Powerbox (for review station)

• 2 white POE injectors
  • The red POE24 ports on the injectors use a 10' ethernet cable to connect to the Main ports on the antennas
  • The LAN ports on the injectors connect to each other with a 6" ethernet
  • The open POE port on the top injector will connect to the SC-Review-WiFi "bunny ear" antenna
• The cables crossover to exit



Switchbox (for coach rooms & home sideline)

• Switch with 1 white POE injector

  • injector LAN port connects to switch

  • injector red POE24 port uses a 10' ethernet to connect to the Main port on the Mesh SC-CoachBox-WiFi bunny antenna

• The cables exit through designated slots

• PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box

• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter

Switchbox (for visitor sideline & camera station)

• Switch with 1 white POE injector

  • Injector LAN port connects to switch

  • injector red POE24 port uses a 10' ethernet to connect the Main port on the round antenna

• The cables exit through designated slots

• For stations with a WiFi access point:

  • The LAN2 port on the round antenna connects to the WiFi access point, either the mesh with bunny ears or mesh-UMAD with rectangular booster

• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter



[UPDATE QR CODE FOR CORRECT LINK]

TOP
