Titanium Coach's & Official's Replay, Shared / 8AC3M2MDPHGR-5P2RP-3WT1WB-CORSH-C1

This kit has 5 stations and 2 remote camera kits. The review equipment is located in the HostBox and the field equipment is located in the StationBox.

PAGE SHORTCUTS:

• Host Box, Station Box
• Power Supply
• RCK (Remote Camera Kit)

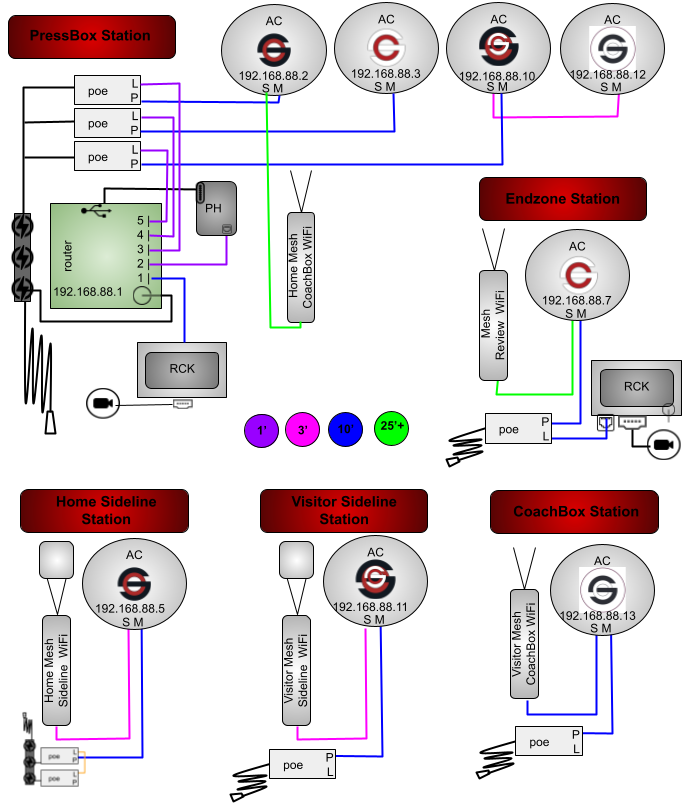

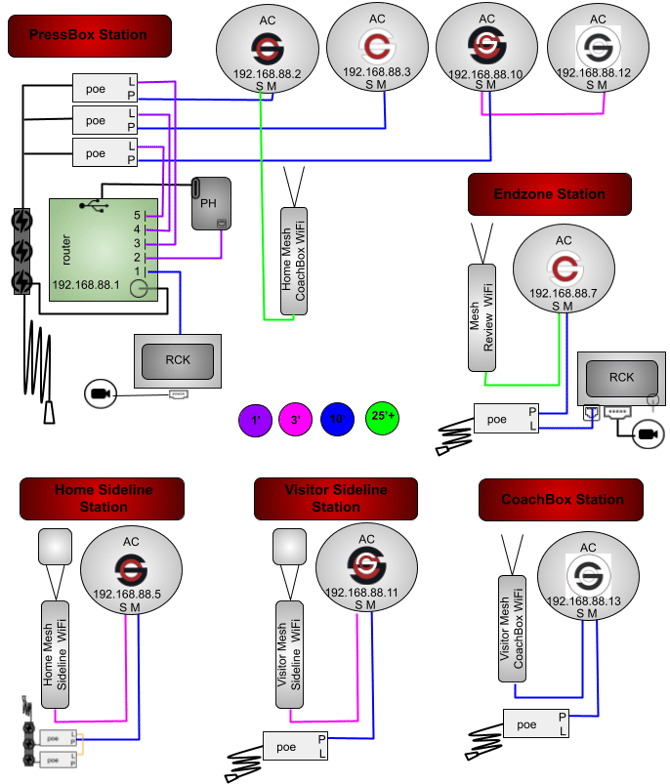

• Diagram
• Training Link
• QR & Overview

PARTS:

• 5 stations: Review, Home Sideline, Home CoachBox, Visitor CoachBox, and EndZone
• Pi Host and Green Gigabit Router
• 8 AC Bridge Antennas
• 1 Mesh Review AP for officials
• 2 Mesh CoachBox APs
• 2 Mesh-UMAD Sideline APs
• 2 Remote Camera Kits
• 3 powertubes white
• 1 powerbox white

HELPFUL LINKS:

• Setup Instructions
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 8AC3M2MDPHGR-5P2RP-3WT1WB-CORSH
• Your kit style is a Titanium Coach's & Official's Replay Shared

TOP

Titanium Coach's & Official's Replay, Shared

8AC3M2MDPHGR-5P2RP-3WT1WB-CORSH

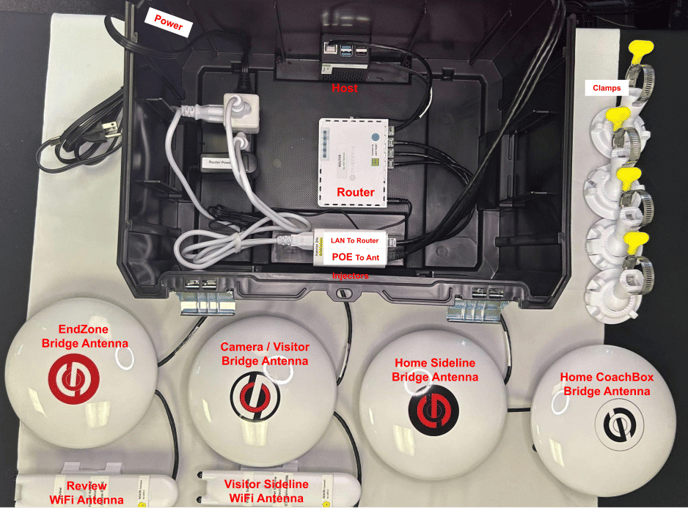

HOST BOX (brains)                                                                     REVIEW STATION: 1 host box, 4 bridge antennas, 2 mesh access points

You will need 1 power outlet to power the host box. The 4 round antennas will mount to one of your stands and point at the field as indicated by their labels.

Use a long ethernet cable to run from the LAN2 port on your camera/visitor round red/white/black bridge antenna to the mesh visitor sideline access point (the "skinny" antenna in the photo). Attach the rectangular UMAD to the top of the mesh antenna and place it at the 35 yardline pointing down the player's box.

The "skinny rabbit ear" mesh antenna SC-Review provides the WiFi access for the official's review iPad and the "skinny rectangle bunny" mesh antenna SCV-Sideline provides the WiFi access for the visitor sideline coaches. These will ensure the fastest download speeds when placed near the ios devices.

• 1 AC red/black stickered antenna to bridge to the Home Sideline
• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline
• 1 AC red/white stickered antenna to bridge to the EndZone
• 1 AC black/white stickered antenna to bridge to the Visitor CoachBox
• 2 Mesh WiFi antennas to connect to devices
  • SCV-Sideline-XXXXX with UMAD for the visitor sideline coach devices
    • connect the rectangular UMAD to the skinny antenna and attach to a stand to be placed at the 35 yardline
    • aim the "rectangular bunny" down the sideline for the visitor iPads
  • SC-Review-XXXXX with foldable rods for the official's review device
    • connect the foldable rods to the skinny antenna and attach to the review tent
    • aidm the "bunny" at the official's iPad

• 1 green gigabit router

• 1 Pi host server

TOP

STATION BOX (field equipment)

anchor for home side stations

2 HOME SIDE STATIONS

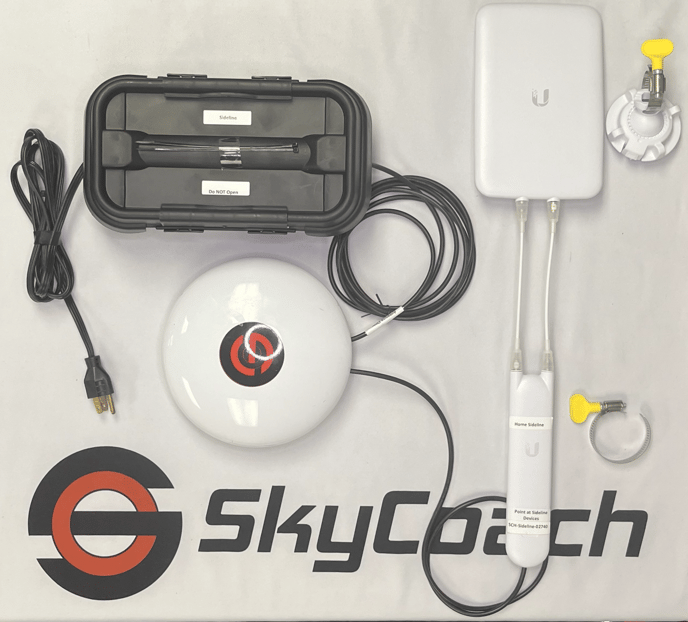

1) HOME SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 power supply (repeat for home and visitor)



You will need 1 power outlet for each sideline power supply: home and visitor. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices. These provide the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 Mesh-UMAD Sideline-WiFi antenna to connect to devices on the sideline
  • SCH-Sideline-XXXXX for the home sideline iPads

• 1 powerbox white (this is to be used on the home sideline for the attemp to run 100' ethernet with the sch-cb-wifi bunny to the lift)

2) HOME COACHBOX STATION: 1 bridge antenna, 1 mesh access point, 1 powertube

You will use the coahbox station when the filmers and coaches are on opposite sides of the field. The filmer will keep the RCK while the coaches will use the coachbox station.

You will need 1 power outlet for the power supply. Mount the round antenna to one of the stands and place it with a clear and straight line of sight to the matching antenna at the review station as indicated by the label.

* The "skinny rabbit ear" mesh antenna should be in the room (on the lift) with the coaches. This provides the SCH-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds.

• 1 AC black/white stickered antenna in the coach box to bridge to the pressbox
• 1 Mesh CoachBox-WiFi antenna to connect to devices in the pressbox
  • SCH-CoachBox-XXXXX for the home coach booth
• 1 powertube



VISITOR SIDE STATION:

CAMERA STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 powertube

• 1 AC red/white/black stickered antenna to bridge to the review station
• 1 Mesh CoachBox-WiFi antenna to connect to devices in the visitor pressbox (lift)
  • SCV-CoachBox-XXXXX for the home coach booth (with bunny ears)
• 1 ethernet cable for your RCK
• 1 powertube



END ZONE STATION: 1 bridge antenna, 1 RCK, 1 mesh access point, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

NOTE: The photo above has included the official's mesh access point, as the majority of cases have tied the review station to the endzone. However, in some cases this mesh access point that produces the SC-Review-WiFi will be connected to one of the sideline stations and will require the use of a powerbox in that location (as seen in the home sideline photo above).

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
• 1 ethernet cable for your RCK
• 1 powertube white

TOP

2 POWER SUPPLY types for this model:

Powertube

• Powertube with 1 white POE injector
• The cables crossover to exit

• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

• The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

Powerbox (for sideline; to connect review-wifi)



• Powerbox with 2 white POE injectors

• LAN to LAN connected with 6" ethernet
• The cables crossover to exit
• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
• The open POE port on the top injector can be left empty OR connect to the SC-Review-WiFi "bunny ear" antenna OR connect a device (like RCK or iPad) to the network

TOP

RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
