      Platinum Official's Replay / 4AC1MPHGRYS-3P2R-2BT-OR

      This kit has 3 stations and 2 remote camera kits. The review equipment is located in the HostBox and the press box and end zone equipment is located in the StationBox.

      Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.



      Please make note of the following:

      • Your Kit# found on the outside of your toolbox
      • The username and password for your app found in your SkyCoach Training email
      • The home and visitor wifi codes for your kit found in your SkyCoach Training email
      • This is your model# ACMPHGRYS-3P2R-OR
      • Your kit style is a Platinum Coach's Replay Shared



      Shareables:

      HOST BOX: 3 antennas

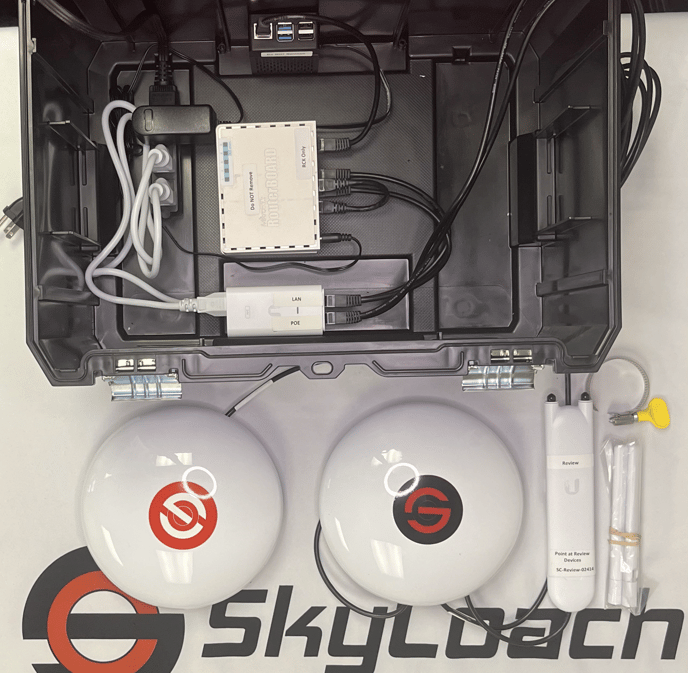

      IMG_0405

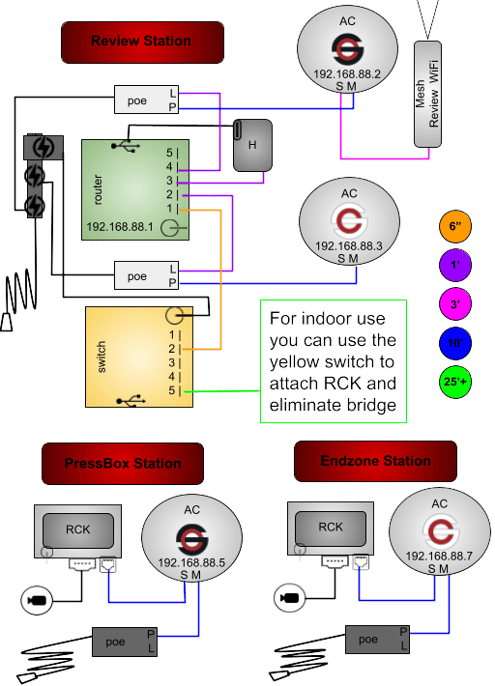

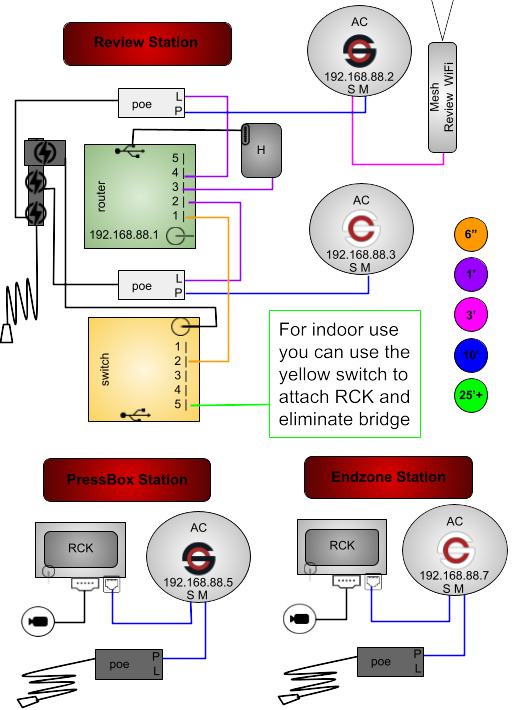

      *The diagram at the end of this article explains where the wires are plugged in.

      Review Station: 1 host box,

      You will need 1 power outlet to power the host box. The 2 antennas will mount to one of your stands and point as indicated by their labels. These items will stay at the review tent.

      *The skinny "rabbit ear" mesh antenna should be pointed at the review devices as it provides the SC-Review-WiFi access for the official's iPad. This will ensure fast downloads speeds.

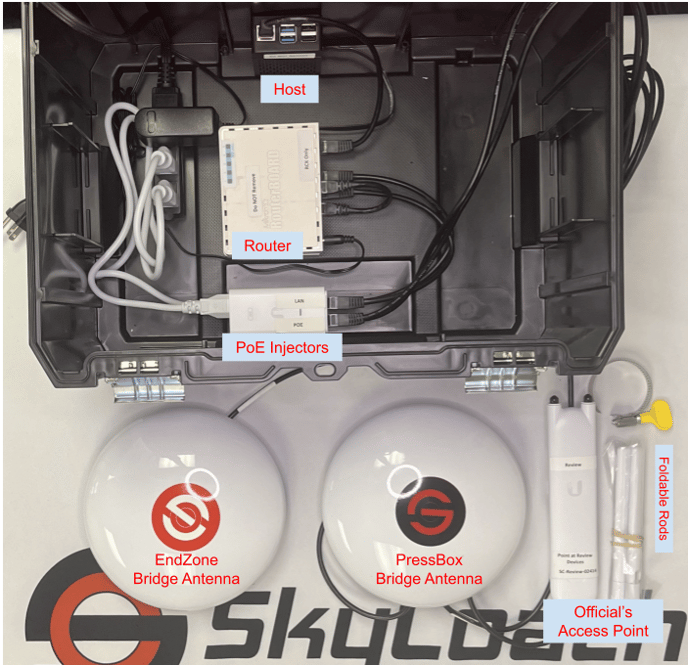

      ACMPHGRYS-3P2R-OR_labeled_host



      STATION BOX: 2 RCKs, 2 antennas, 2 powertubes

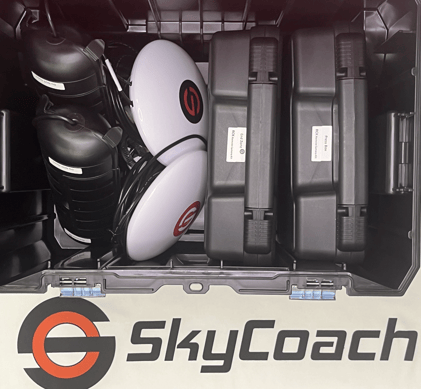

      IMG_0411

      *all of your camera station equipment can be found in the station box

      END ZONE STATION: 1 RCK, 1 bridge antenna, 1 powertube

      You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching review antenna as indicated by the label.

      *Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

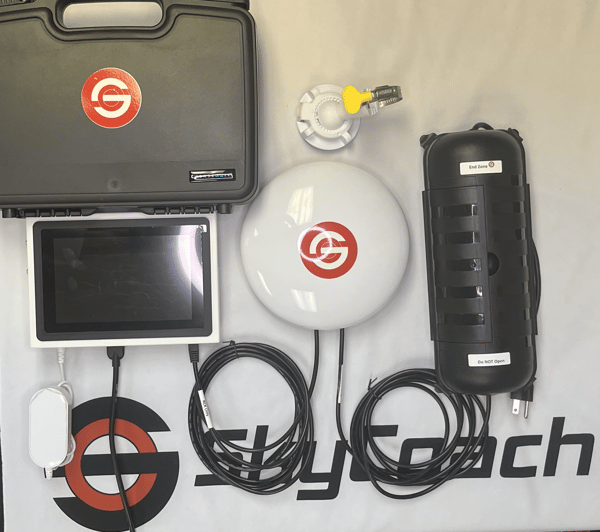

      IMG_0412

      PRESSBOX STATION: 1 RCK, 1 bridge antenna, 1 powertube

      You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching review antenna as indicated by the label.

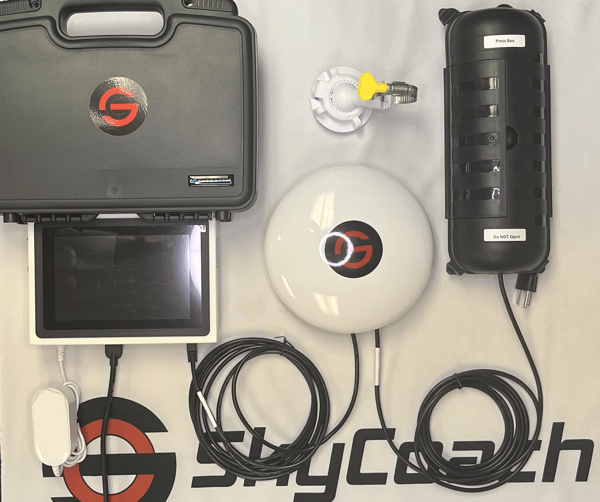

      *Be sure the antenna has a clear and straight line of sight with no obstructions.IMG_0413



      4AC1MPHGRYS-3P2R-2BT-OR

      ACMPHGRYS-3P2R-OR-1



      QR Builder (1)-1
