      Silver Plus 3 Official's Replay, Gen / 2AC1MPHGRBS2D-2P3RP-1WT-GOR

      This kit has 2 stations and 3 remote camera kits. The HostBox contains the "brains" of the system and the review station.

      Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.



      Please make note of the following:

      • Your Kit# found on the outside of your toolbox
      • The username and password for your app found in your SkyCoach Training email
      • The officials' wifi codes for your kit found in your SkyCoach Training email
      • This is your model# ACMPHGRBS-2P3RP-1T-GOR
      • Your kit style is a Platinum Plus Official's Replay, Gym



      Shareables:

      HOST BOX: 1 host, 1 router, 1 switch, 2 NDI converters, 1 poe injector, 3 RCKs, 1 antenna, & review station equipment

      You will need one power outlet to power this Host Box near your HD camera and run ethernet cables from your IP cameras to this box.

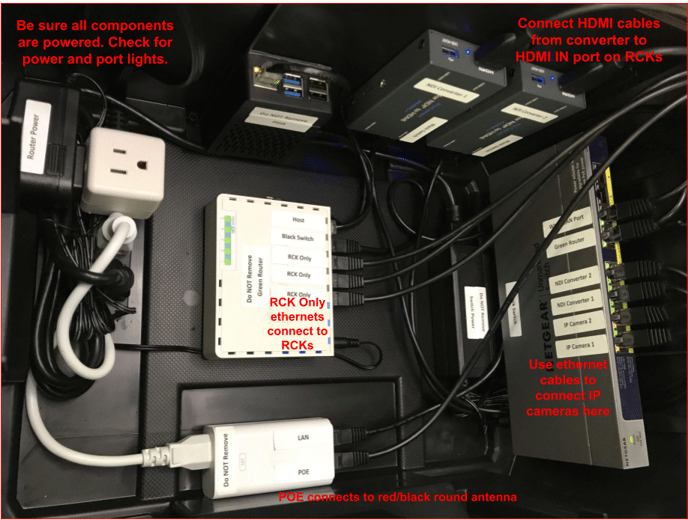

      Basketball Host Box

      There is one red/black round antenna that will point at the review station located at the score table. It is very important that the red/black antenna pair point directly at each other with no obstruction. Please take care to angle them properly as this will affect download speeds. There is information on checking the antenna alignment in the How to Tune Your Network article.

      REVIEW STATION: 1 bridge antenna, 1 mesh access point, 1 powertube

      The review station equipment requires one power outlet and should be placed at the score table.

      IMG_3743_cropped

      Hang and point the red/black round antenna such that there are no obstructions between it and the matching antenna at the host box. Attach the foldable rods on the skinny access point. This "skinny bunny ear" antenna produces the WiFi for the review iPad. It can hang on the pole with included clamp or you can set it on the table, but it needs to be pointed towards/near the review device.




      Here is the complete setup explanation.









      Silver Plus 3 Official's Replay, Gen

      2AC1MPHGRBS2D-2P3RP-1WT-GOR

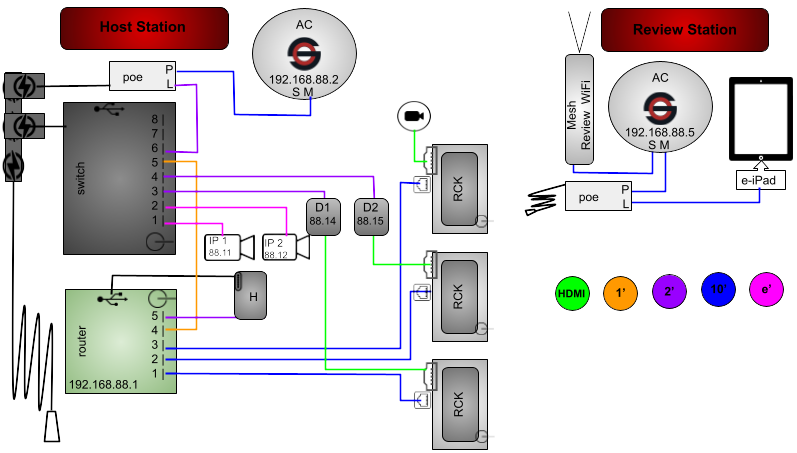

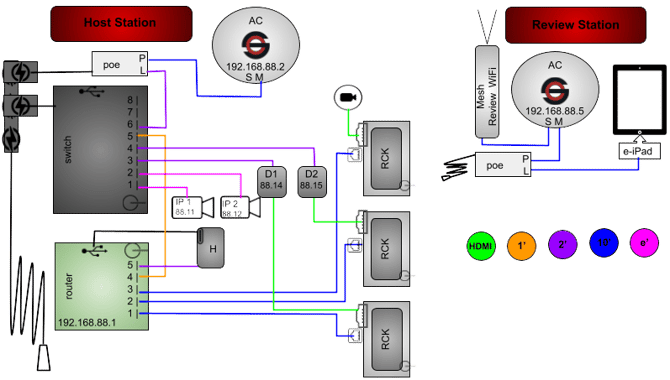

      ACMPHGRBS-2P3RP-1T-GOR-1
