PARTS:
- 3 Stations: Camera, Review
- NUC Host, Green Gigabit Router, and Yellow Switch
- 2 AC Bridge Antennas (RB)
- 1 Mesh Review AP
- 1 Powertube
HELPFUL LINKS:
- Setup Instructions, User Guide
- Diagram
- Pregame Checklist
- How to Tune Your Network
- Keys to Success
Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
- Your Kit# is found on the outside of your toolbox
- The username and password for your app are found in your SkyCoach Training email
- The wifi access codes for your kit are found in your SkyCoach Training email
- This is your model#: 2AC1MNHGRYS-2P4R-1WT-OR
- Your kit style is a Silver Plus 4 Official Replay
3 Parts To Set Up Your Kit
A. Set Up your Network
Click here to go to the network section.
B. Set Up Your Remote Camera Kit (RCK)
Click here to go to the RCK Setup Page. (4 steps)
C. Set Up Your iPad
Click here to go to the iPad Setup Page. (4 stages)
Silver Plus 4 Official Replay
2AC1MNHGRYS-2P4R-1WT-OR
HOST BOX (brains)
CAMERA STATION: 1 host box, 4 RCKs, 1 bridge antenna
You will need 5 power outlets: one to power the host box, and one to power each RCK. The round antenna will mount to one of your stands and point at the field as indicated by its labels. The host box and RCKs will stay with the filmer.

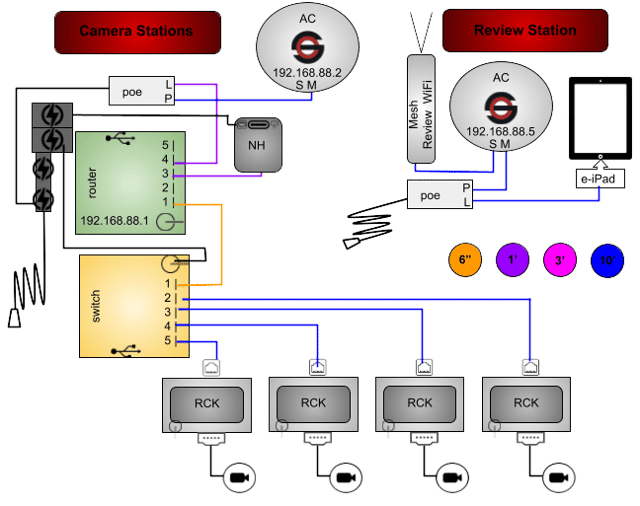

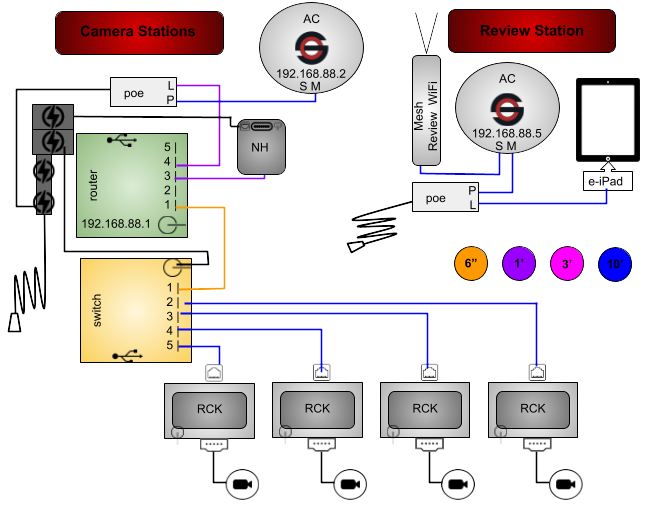

[CHANGE IMAGE - Missing Yellow Switch, Needs NH not PH, Needs 1 POE not 2]

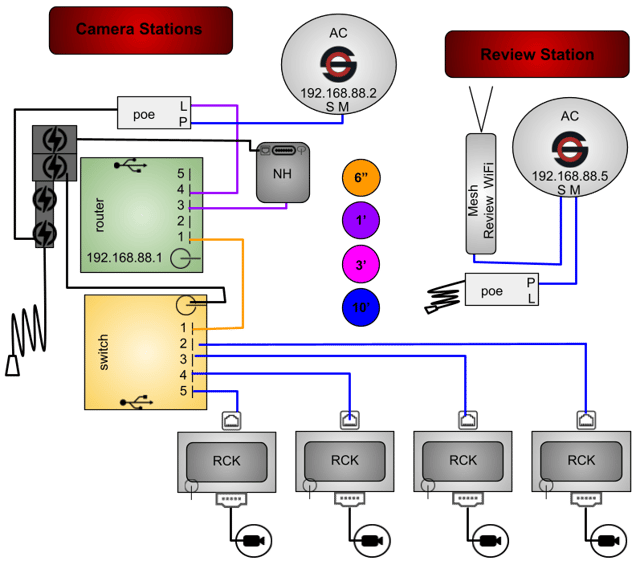

- 1 green gigabit router
- 1 NUC host server
- 1 ethernet cables connected to LAN port on the injector
- 1 yellow switch
- 4 ethernet cables for your RCKs
- 1 AC red/black stickered antenna to bridge to Review, connected from the POE24 port of injector to the Main port of antenna
STATION BOX (field equipment)

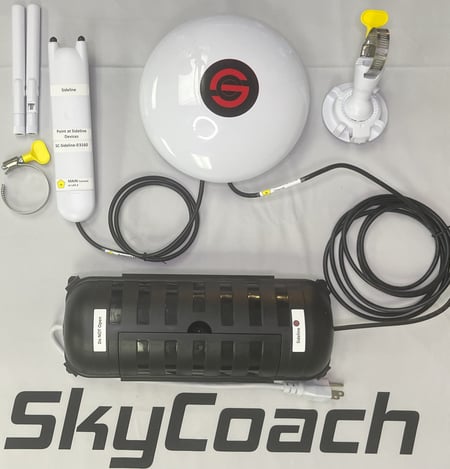

REVIEW STATION: 1 bridge antenna, 1 mesh access point, 1 powertube
You will need 1 power outlet for the review powertube. Mount the 2 antennas to one of the stands.
The round bridge antenna will point at the matching host box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.
The skinny mesh antenna provides the SC-Review-WiFi access for the review iPads and will ensure fast download speeds.
Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection.
-
- 1 AC red/black stickered antenna at the review station to bridge to the pressbox, connected from the POE24 port of the powertube injector to the Main port of the antenna
-
-
- 1 Mesh-UMAD Review-WiFi antenna that connects to devices at the review station
- This is connected to the LAN2 port of the red/black round antenna
- SC-Review-XXXXX for review iPads
-
1 POWER SUPPLY type for this model:
Powertube
- 1 white POE injector
- The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
- The cables crossover to exit
You have completed Part A (Setting Up Network)
Proceed to Part B (Setup RCK)
Proceed to Part C (Setup iPad)
