Diamond Plus, Diamond Plus 6, Cosmic Plus 6 Official's Replay, Gen / 12AC1MNHGR-8P6RP-3WT3WB1SBP-GOR

This kit has 4-8 stations and 6 remote camera kits. There are 3 configurations of the system explained below. The HostBox contains the "brains" of the system. There is a SwitchBox for added bridges. The StationBox contains all 6 stations.

Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

Please make note of the following:

Your Kit# found on the outside of your toolbox
The username and password for your app found in your SkyCoach Training email
The officials' wifi codes for your kit found in your SkyCoach Training email

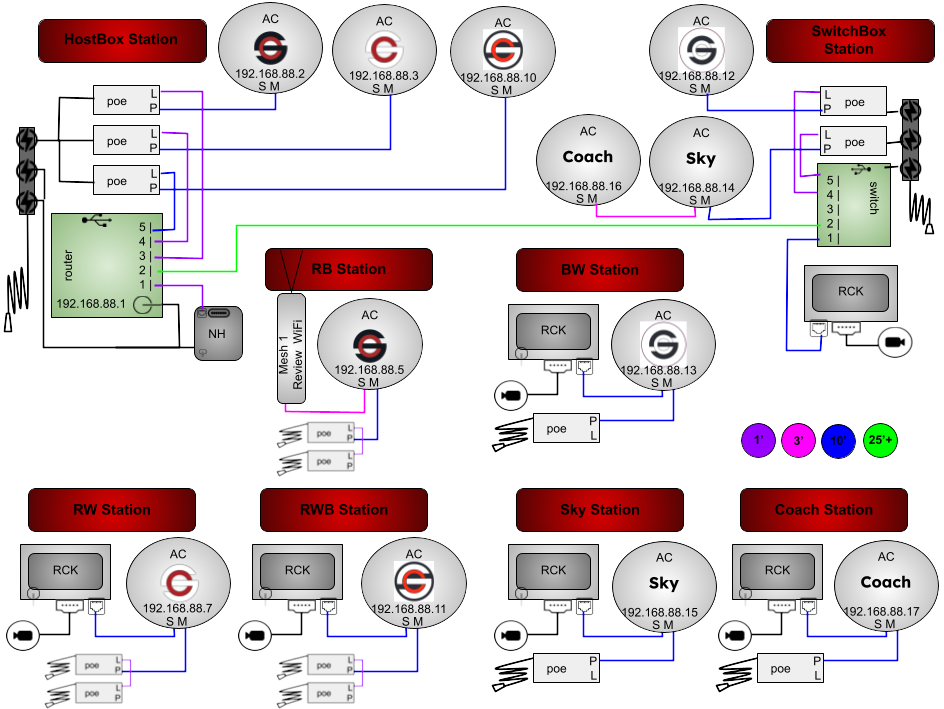

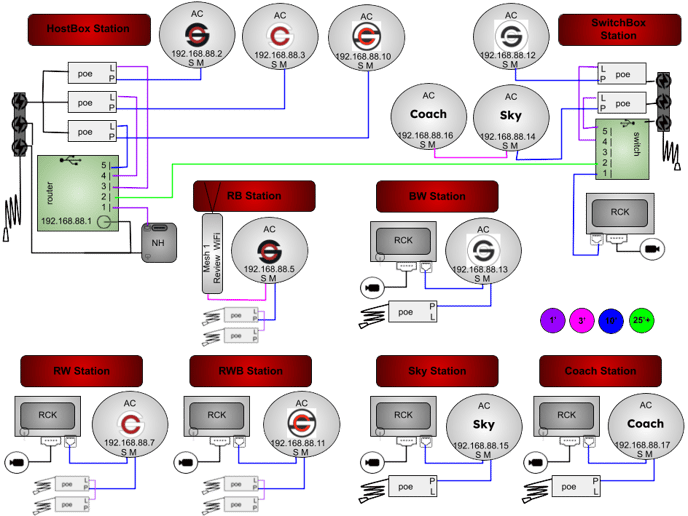

This is your model# ACMNHGR-3PB3PT1PBP-8P6RP-OR
Your kit style is a Platinum Plus6 Official's Replay, Gym

Shareables:

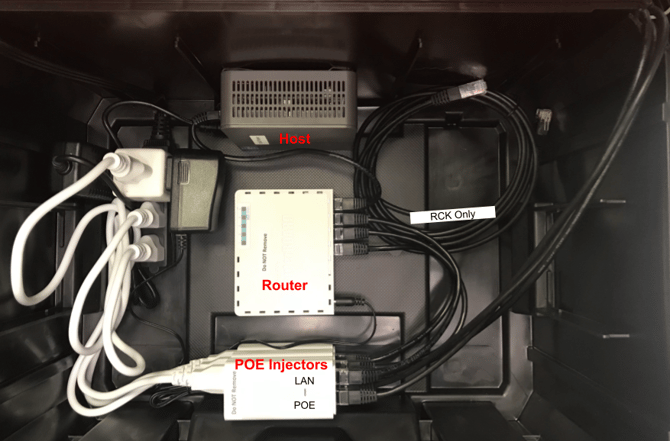

HOST BOX: 1 host, 1 router, 3 poe injectors, 1 RCK, 3 antennas

HostBox_labeled

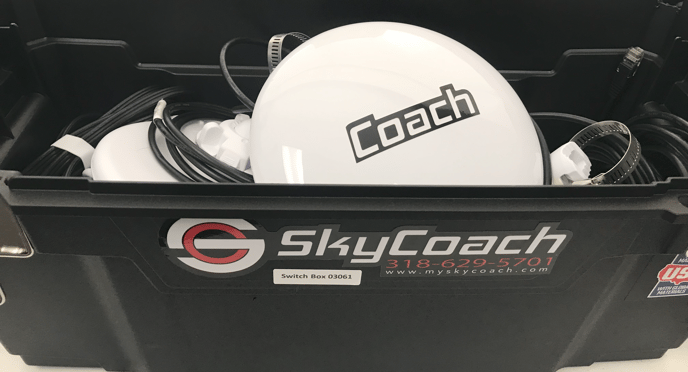

Switch Box: 3 bridge antennas, 1 switch, 2 poe injectors

SwitchBox

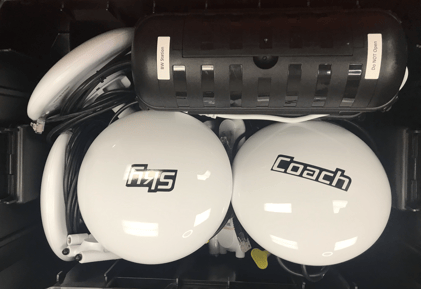

STATION BOX: 6 bridge antennas, 2 mesh access points, 3 powerbox, 3 powertubes, 6 RCKs

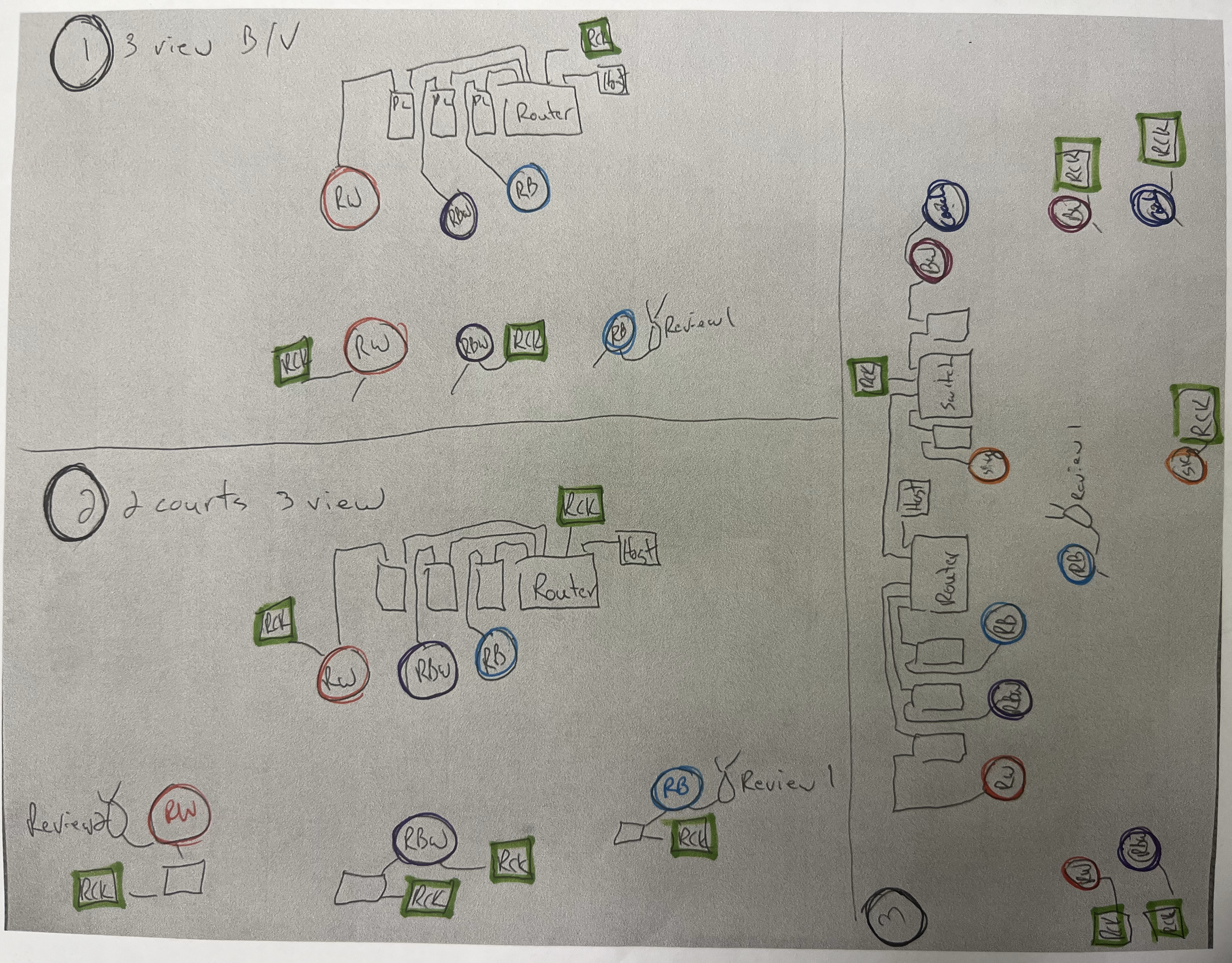

Scenario 1 - 3 Camera View and 1 Court

Diamond Plus Official's Replay, Gen

6AC1MNHGR-4P3RP-3WB-GOR

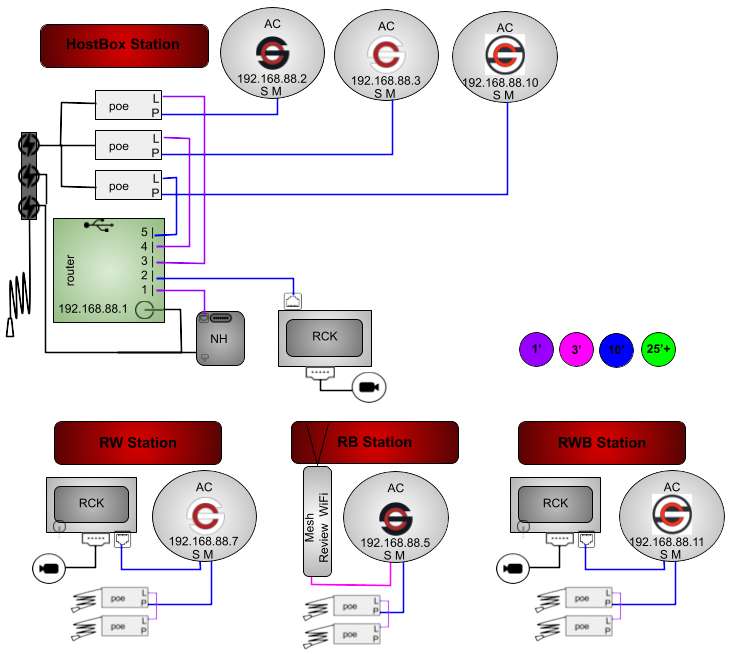

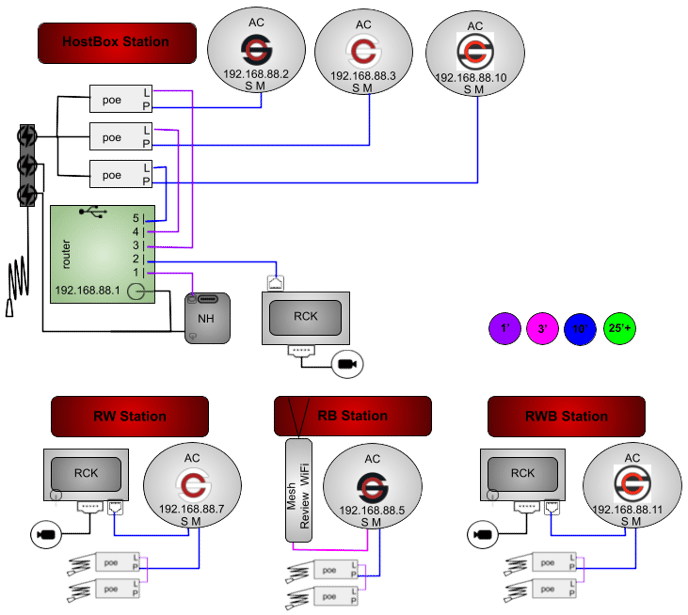

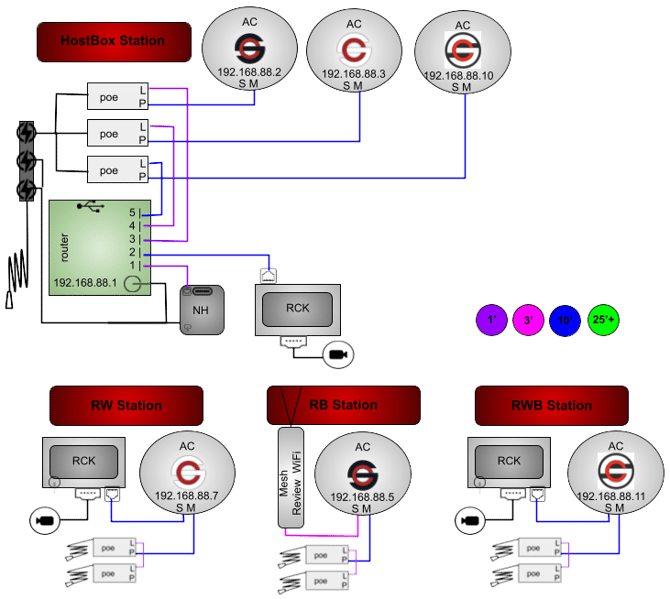

ACMNHGR-3PB-4P3RP-OR

Scenario 2 - 3 Camera View and 2 Courts

For the scenario of 2 games at the same time, just create 2 different events. Put 3 RCKs and 1 review iPad in Event A and 3 RCKs and 1 iPad in Event B. The 2 games can be run independently at the same time.

Diamond Plus 6 Official's Replay, Gen

6AC2MSNHGR-4P6RP-3WB-GOR

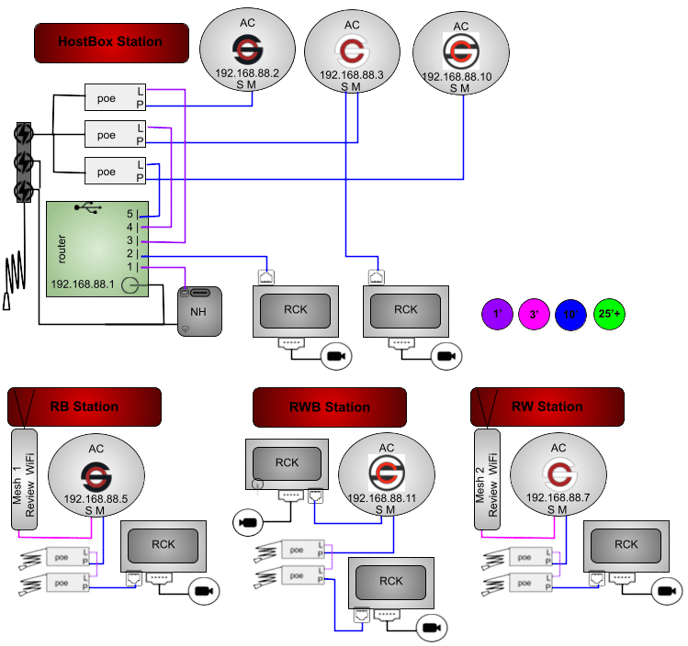

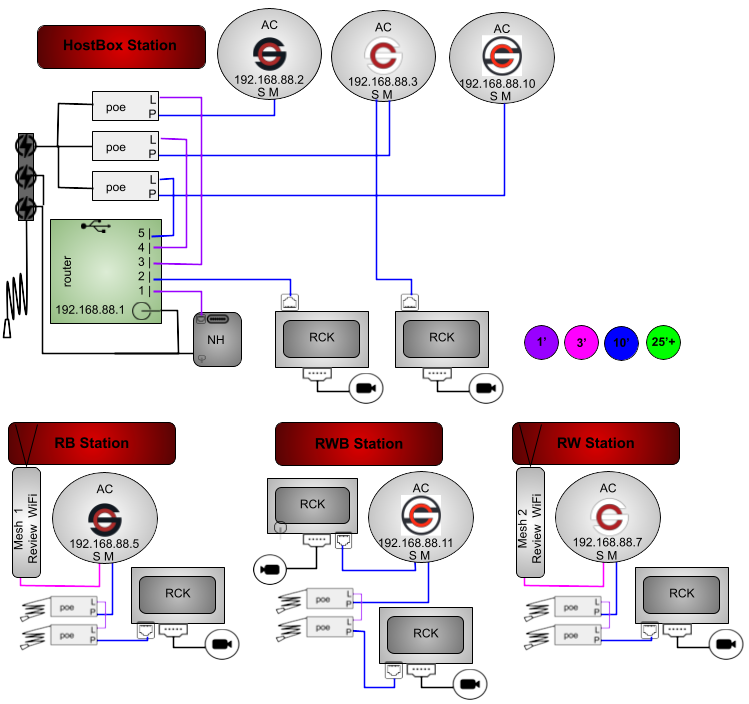

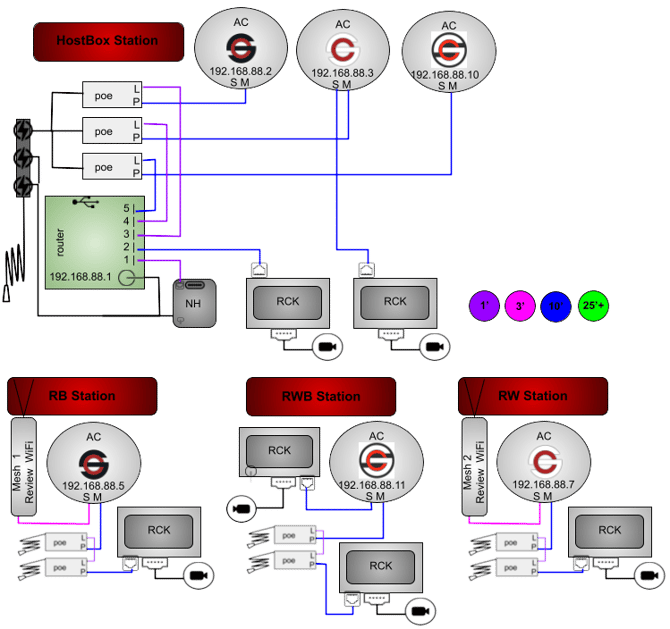

ACMNHGR-3PB-4P6RP-OR

Scenario 3 - 6 Camera View and 1 Court

Running 6 angles for a single basketball game may require the use of 2 iPads depending on how well the iPad handles the volume. One to control to control start and stop and another to download the clips for review. If you use 2 for that scenarios, you would turn off download while recording on the control iPad and have the other iPad open in the event to download the videos.
