Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
- Your Kit# found on the outside of your toolbox
- The username and password for your app found in your SkyCoach Training email
- The wifi access codes for your kit are found in your SkyCoach Training email
- This is your model# 1MMHGR-1P3RP-GOR
- Your kit style is a Nickel Plus 3 Official Replay Generic
Nickel Plus 3 Official Replay Generic
1MNHGR-1P3RP-GOR

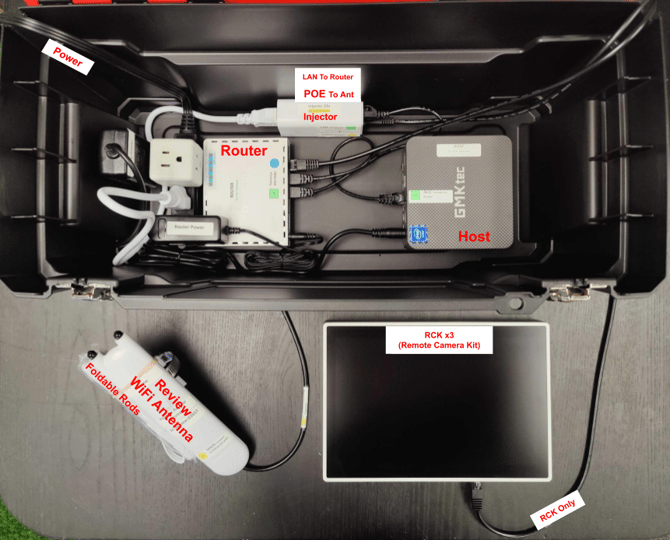

HOST BOX (brains)

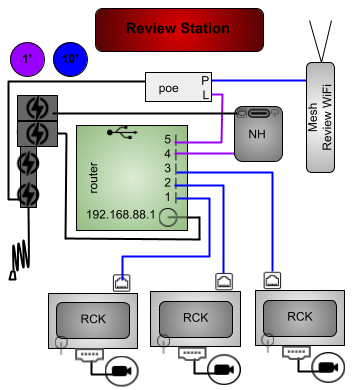

PRESS BOX STATION: 1 host box, 3 RCKs, 1 mesh access point
You will need 4 power outlets: one to power the host box and three to power the RCKs.
Attach the foldable rods to the top of the mesh antenna and place it near the iPad. The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the official's iPad and will ensure fastest download speeds when placed next to the iPad.
- 1 Mesh Review-WiFi antenna to connect to the official's device
- SC-Review-XXXXX for the score table
-
1 green gigabit router
-
1 Nuc host server
- 3 ethernet cables for your RCKs
-
Nickel Plus 3 Official Replay Generic
1MNHGR-1P3RP-GOR
RCK Pro (Remote Camera Kit)
Power the RCK.- Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
- Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
Once you get all 4 check marks on the RCK you can join the event.
ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
