      Silver Coach's Replay, Sideline Only / 2AC1MPHGR-2P1RP-1WT-CRS

      This kit has 2 stations and 1 remote camera kit. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.

      PAGE SHORTCUTS:

      PARTS:

      • 2 stations: PressBox, Sideline
      • Pi Host and Green Gigabit Router
      • 2 AC Bridge Antennas
      • 1 Mesh Sideline AP
      • 1 Remote Camera Kit
      • 1 Powertube

      HELPFUL LINKS:

      Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

      Please make note of the following:

      • Your Kit# found on the outside of your toolbox
      • The username and password for your app found in your SkyCoach Training email
      • The wifi access codes for your kit are found in your SkyCoach Training email
      • This is your model# 2AC1MPHGR-2P1RP-1WT-CRS
      • Your kit style is a Silver Coach's Replay Sideline Only

      TOP

      Silver Coach's Replay, Sideline Only

      2AC1MPHGR-2P1RP-1WT-CRS

      HOST BOX (brains)

      PRESS BOX STATION: 1 host box, 1 RCK, 1 bridge antenna

      You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. These items will stay with the filmer.

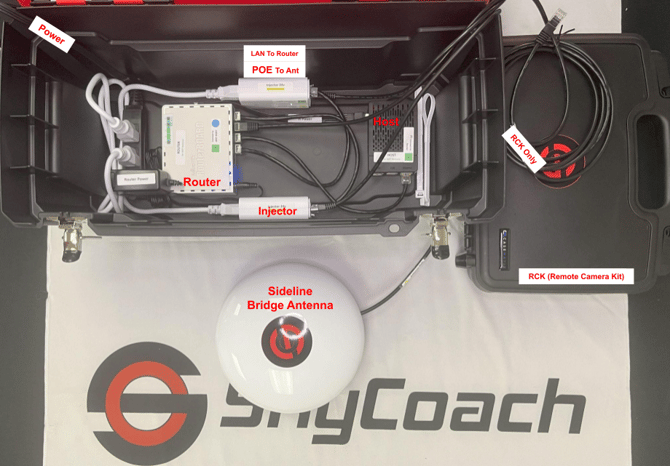

      HostBox RB PHGR -1R - labeled

      • 1 AC red/black stickered antenna to bridge to Sideline
      • 1 Mesh Sideline-WiFi antenna to connect to devices on the sideline
        • SC-Sideline-XXXXX
      • 1 ethernet cable for your RCK

      • 1 green gigabit router

      • 1 Pi host server

      TOP

      STATION BOX (field equipment)

      SIDELINE STATION: 1 bridge antenna, 1 mesh access point, 1 powertube

      You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 50 yard line.

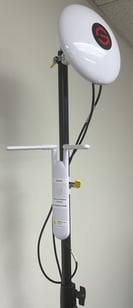

      SL station RB M on pole 2The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

       Attach the foldable rods to the top of the mesh antenna. The bunny ear antenna should be pointed at the field or stands with the ears folded down and separated by 90 degrees. The ios devices should stay within close proximity for the best results. This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

      Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

      * The skinny "rabbit ear" mesh antenna provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fastest download speeds when placed near the ios devices.

      SL station RB M -WT

      • 1 AC red/black stickered antenna to bridge to the HostBox
      • 1 mesh Sideline-WiFi antenna that connects to devices on the sideline
        • SC-Sideline-XXXXX
      • 1 powertube white

      TOP

      1 POWER SUPPLY type for this model:

      Powertube

      open-powertube

      • Powertube with 1 white POE injector
      • The cables crossover to exit

      • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

      • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

      TOP

      RCK Pro (Remote Camera Kit)

      1. camera_connected_RCKPro_labeledPower the RCK.
      2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
      3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
      Screenshot 2024-12-31 122303



      Once you get all 4 check marks on the RCK you can join the event.

      ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

      TOP

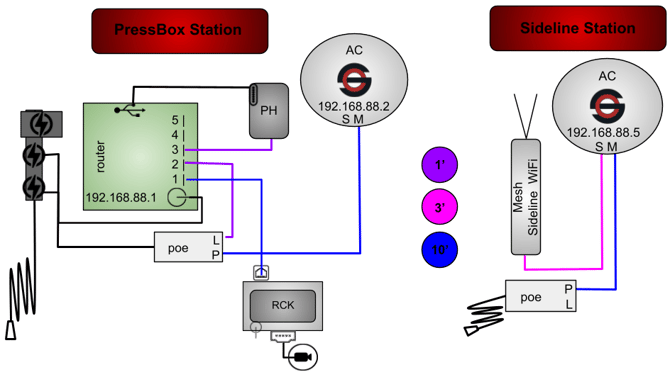

      Silver Coach's Replay, Sideline Only

      2AC1MPHGR-2P1RP-1WT-CRS

      ACMPHGR-2P1R-CRS (1)

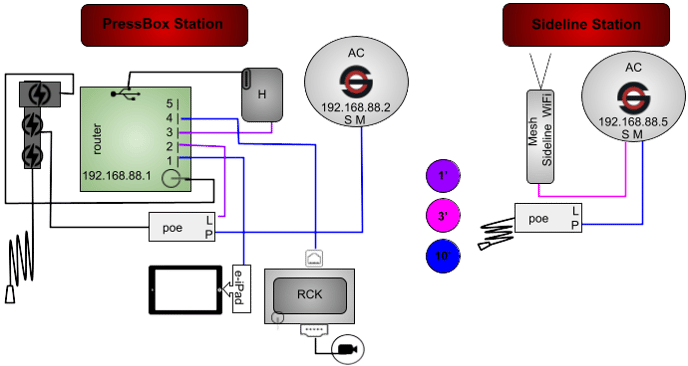

      Model Overview

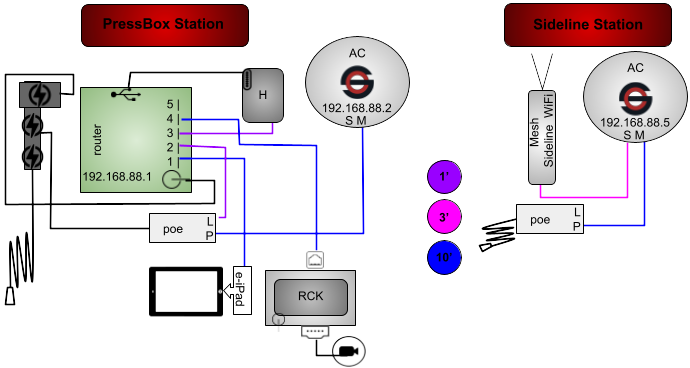

      Package Overview

      Kit Overview

      SilverCRS
