Diamond Coach Replay, Shared / 2M2U7BR6FSNH-4P2RP-2SBF2SBUF-CRSH

PAGE SHORTCUTS:

• Host Box, Station Box
• 3 Setup Parts

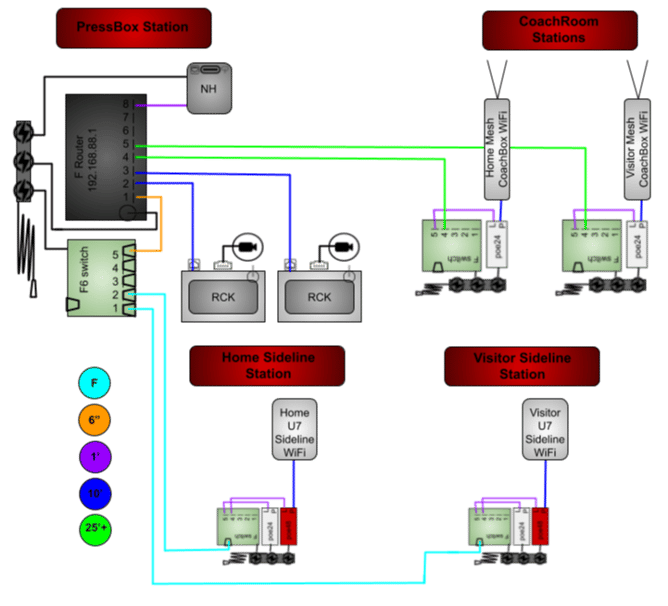

• Diagram
• Power Supply
• Training Link
• QR & Overview

PARTS:

• 4 Stations: PressBox, CoachRooms, Home Sideline, Visitor Sideline,
• 1 Nuc Host
• 1 Black Gigabit Router (8-Port)
• 1 Fiber 6-Port Switch
• 2 Mesh CoachBox APs
• 2 U7 Sideline APs
• 2 Remote Camera Kits
• 1 Switchbox Fiber
• 1 Switchbox Ultra Fiber

HELPFUL LINKS:

• Setup Instructions
• Diagram
• Pregame Checklist
• How to Tune Your Network
• Keys to Success



Please make note of the following:

• Your Kit# is found on the outside of your toolbox
• The username and password for your app are found in your SkyCoach Training email
• The wifi codes for your kit is found in your SkyCoach Training email
• This is your model#: 2M2U7BR6FSNH-4P2RP-2SBF2SBUF-CRSH
• Your kit style is a Diamond Coach Replay Shared

TOP



3 Parts To Set Up Your Kit



Diamond Coach Replay, Shared

 2M2U7BR6FSNH-4P2RP-2SBF2SBUF-CRSH



HOST BOX (brains)



PRESSBOX STATION: 1 host box, 2 RCK, 2 mesh access points

[Insert Pictures here]

TOP



COACHROOM STATIONS:

[Insert Pictures here]



STATION BOX (field equipment)

SIDELINE STATIONS: 1 U7 access point, 1 switchbox ultra fiber (repeat for home and visitor)

[Insert Pictures here]

You will need 1 power outlet for each sideline power supply: home and visitor switchbox ultra. Mount the antenna to one of the stands and place it at the 35 yard line. The stand should be extended high so the antennas are not obstructed by the players.

The rectangular U7 antenna is directional and should be pointed down the sideline/player's box towards the ios devices. This provides the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly to the network via an ethernet adapter and switch port. Your switchbox ultra provides 3 ethernet access points.



The POE 24v will connect to the main port on the round antenna, also labeled.

[insert pictures here]

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
• 2 U7 Sideline-WiFi antennas & 2 switchbox ultra fibers to connect to devices on the sideline
  • SCH-Sideline-XXXXX with switchbox ultra fiber for the home sideline iPads
  • SCV-Sideline-XXXXX with switchbox ultra fiber for the visitor sideline iPads

TOP

2 POWER SUPPLY types for this model:

Switchbox Fiber

• 1 white POE injector

  • LAN connects to switch
  • The red POE24 port on the injector uses a 10' ethernet to connect the main port on the round antenna
    • The LAN2 port on the round antenna then connects to the mesh-UMAD that produces the SC-Sideline-WiFi antenna with rectangular directional booster

• 1 fiber switch

  • The open switch ports can be left empty OR used to hardwire iPads to the network using an ethernet adapter
  • The fiber port contains a module for LC connectors
• The cables exit through designated slots

Switchbox Ultra Fiber

• • 1 w.POE 24v injector and 1 w.POE 48v injector

    • LAN connects to switch
    • The red POE24 port on the 24v injector uses a 10' ethernet to connect the main port on the round antenna
      • The LAN2 port on the round antenna then connects to the mesh-UMAD that produces the SC-Sideline-WiFi antenna with rectangular directional booster
    • The red POE48 port on the 48v injector uses a 10' ethernet cable *labeled with a 48v warning sticker to connect the main port on the U7 rectangular antenna


  • 1 fiber switch

    • The open switch ports can be left empty OR used to hardwire iPads to the network using an ethernet adapter
    • The fiber port contains a module for LC connectors
  • The cables exit through designated slots

TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)
