Platinum Coach Replay / 4AC(RB,RW)1M1U7PHGR-3P2RP-1WT1PBU-CR

This kit has 3 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.

PAGE SHORTCUTS:

PARTS:

HELPFUL LINKS:

Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in a large office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

Please make note of the following:

  • Your Kit# found on the outside of your toolbox
  • The username and password for your app found in your SkyCoach Training email
  • The wifi access codes for your kit are found in your SkyCoach Training email
  • This is your model# 4AC(RB,RW)1M1U7PHGR-3P2RP-1WT1PBU-CR
  • Your kit style is a Platinum Coach Replay

TOP

3 Parts To Set Up Your Kit

A. Set Up your Network

Click here to go to the network section.

B. Set Up Your Remote Camera Kit (RCK)

Click here to go to the RCK Setup Page. (4 steps)

C. Set Up Your iPad

Click here to go to the iPad Setup Page. (4 stages)

 Platinum Coach Replay / 4AC(RB,RW)1M1U7PHGR-3P2RP-1WT1PBU-CR



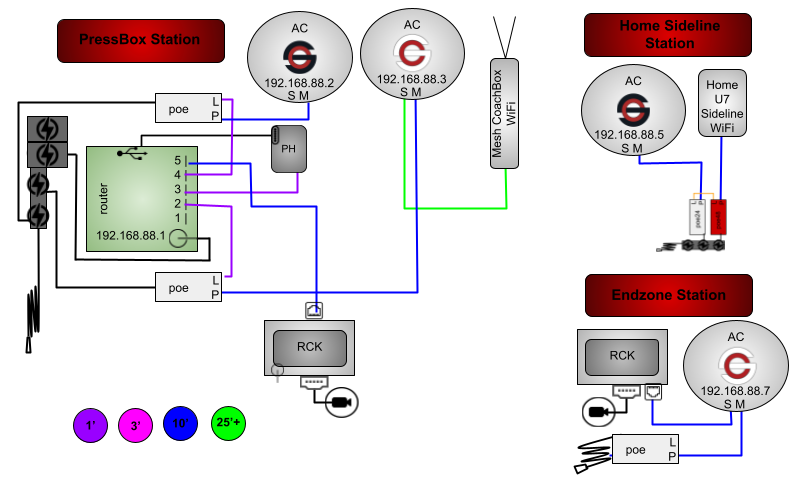

4AC(RB,RW)1M1U7PHGR-3P2RP-1WT1PBU-CR (fixed)

HOST BOX (brains)

PRESS BOX STATION: 1 host box, 1 RCK, 2 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 4 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your home round bridge antenna to the  mesh home coachbox access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The "skinny rabbit ear" mesh antenna provides the SCH-CoachBox-WiFi access for the home coachbox iPads and will ensure fastest download speeds when placed in the room.

[NEEDS NEW PHOTO WITH PI HOST, 1 MESH, AND ONLY RB AND RW ANTENNAS]

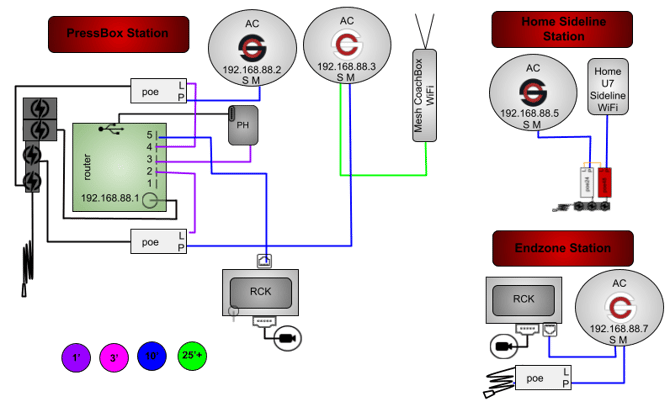

host box - rb, rw, rwb, coach, sch-cb, scv-cb, rck _labeled

  • 1 AC red/black stickered antenna to bridge to the Home Sideline
    • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
      • SCH-CoachBox-XXXXX for the home coach booth
  • 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline
    • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
      • SCV-CoachBox-XXXXX for the visitor coach booth
  • 1 AC red/white stickered antenna to bridge to the EndZone
    • 1 AC COACH stickered antenna to bridge to the second EndZone
  • 1 ethernet cable for your RCK

  • 1 green gigabit router

  • 1 Pi host server

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 bridge antenna, 1 powerbox ULTRA, 1 U7 sideline AP

[NEEDS NEW PHOTOS AND WORDS WITH A PBU AND A U7]

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube (repeat for each end zone)

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

EZ station RW, RP, WT - labeled

  • 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
  • 1 ethernet cable for your RCK
  • 1 powertube

TOP

2 POWER SUPPLY types for this model:

Powertube

open-powertube

  • Powertube with 1 white POE injector
  • The cables crossover to exit

  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

Powerbox ULTRA

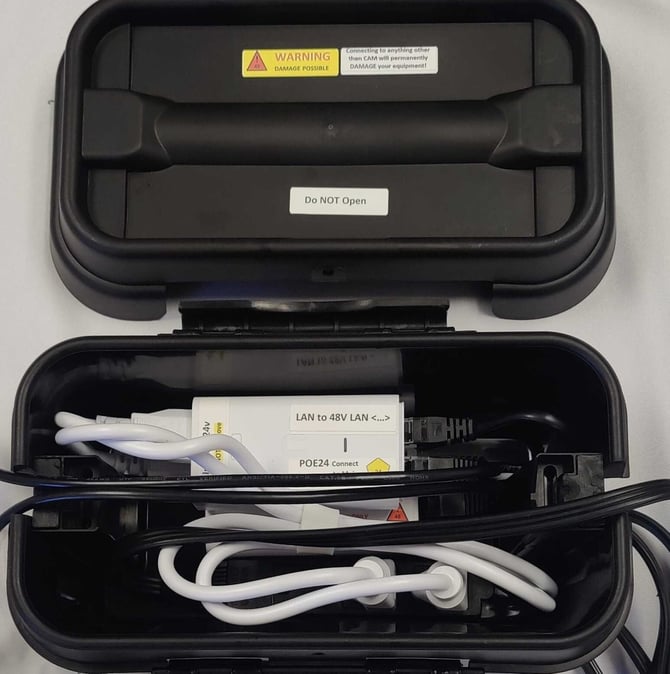

 Powerbox ULTRA (inside) cropped-1

  • 1 white 24V POE injector

    • The red POE24 port on the injector uses a 10' ethernet cable to connect to the main port on the round antenna
  • 1 white 48V POE injector
    • The red POE48 port on the injector uses an ethernet cable *labeled with a 48v warning sticker to connect to the IP camera
  • The LAN ports on the injectors connect to each other with a 6" ethernet
  • The cables crossover to exit

 WARNING: Connecting the POE 48v to anything other than the IP Camera will fry whatever you connect it to!!!
