3 Parts To Set Up Your Kit

Platinum Coach Replay

4AC(RB,RW)1M1U7PHGR-3P2RP-1WT1SBU-CR



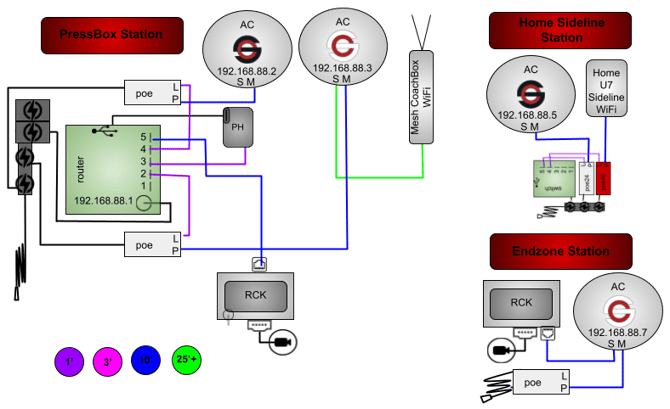

HOST BOX (brains)

PRESS BOX STATION: 1 host box, 1 RCK, 2 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 4 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your home round bridge antenna to the  mesh home coachbox access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The "skinny rabbit ear" mesh antenna provides the SCH-CoachBox-WiFi access for the home coachbox iPads and will ensure fastest download speeds when placed in the room.

[NEEDS NEW PHOTO WITH PI HOST, 1 MESH, AND ONLY RB AND RW ANTENNAS]

• 1 AC red/black stickered antenna to bridge to the Home Sideline
  • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
    • SCH-CoachBox-XXXXX for the home coach booth
• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline
  • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
    • SCV-CoachBox-XXXXX for the visitor coach booth
• 1 AC red/white stickered antenna to bridge to the EndZone
  • 1 AC COACH stickered antenna to bridge to the second EndZone
• 1 ethernet cable for your RCK

• 1 green gigabit router

• 1 Pi host server

TOP

STATION BOX (field equipment)

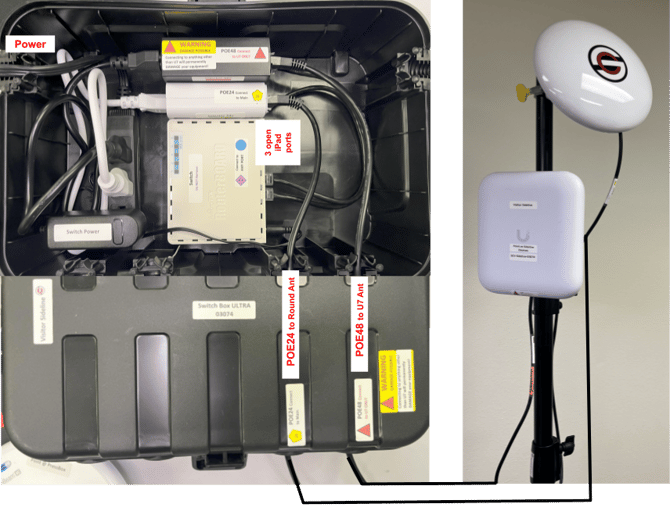

SIDELINE STATIONS: 1 bridge antenna, 1 powerbox ULTRA, 1 U7 sideline AP

You will need 1 power outlet for each sideline power supply: home and visitor switchbox ultra. Mount the 2 antennas to one of the stands and place it at the 35 yard line. The stand should be extended high so the antennas are not obstructed by the players.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions. Be sure to adjust the angle on the round antenna to point up at the matching antenna.

The rectangular U7 antenna is directional and should be pointed down the sideline/player's box towards the ios devices. This provides the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly to the network via an ethernet adapter and switch port. Your switchbox ultra provides 3 ethernet access points.

The POE 24v will connect to the main port on the round antenna, also labeled.

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
• 2 U7 Sideline-WiFi antennas & 2 switchbox ultra fibers to connect to devices on the sideline
  • SCH-Sideline-XXXXX with switchbox ultra fiber for the home sideline iPads
  • SCV-Sideline-XXXXX with switchbox ultra fiber for the visitor sideline iPads

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube (repeat for each end zone)

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
• 1 ethernet cable for your RCK
• 1 powertube

TOP

2 POWER SUPPLY types for this model:

Powertube

• Powertube with 1 white POE injector
• The cables crossover to exit

• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

• The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

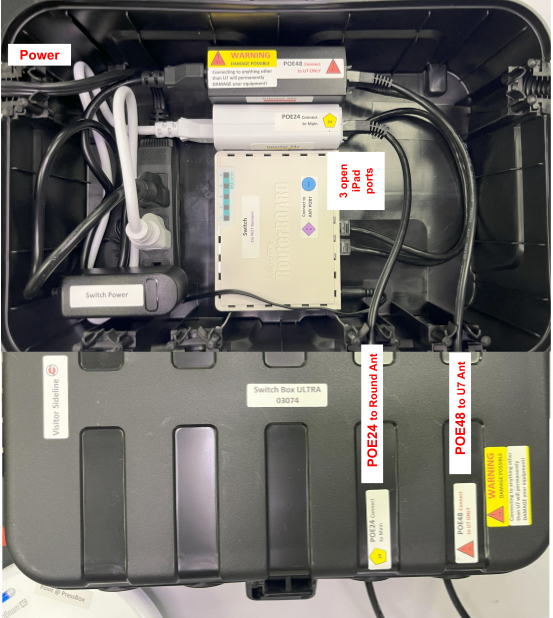

Switchbox Ultra (for sideline)

• Switchbox ultra with 1 white POE 24v injector and 1 black POE 48v injector

• LAN ports connect to switch
• The cables exit through designated slots
• The red POE24 port on the injector uses a 10' ethernet cable to connect the Main port on the round antenna
• The red POE48 port on the injector uses a 10' ethernet cable to connect the Main port on the U7 SC-Sideline-WiFi rectangular antenna
• The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter

TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)
