This kit has 3 stations and 3 remote camera kits. The press box equipment is located in the HostBox and the camera stations are located in the StationBox. The HostBox will stay with the coaches.
PAGE SHORTCUTS:
- Host Box, Station Box
- PressBox Station, Camera Station, EndZone Station
- Power Supply
- RCK (Remote Camera Kit)
- Diagram
- Training Link
- QR & Overview
PARTS:
- 3 stations: PressBox, Camera, EndZone
- Pi Host and Green Gigabit Router
- 4 AC Bridge Antennas
- 1 Mesh CoachBox AP
- 3 Remote Camera Kits
- 2 powertube white
HELPFUL LINKS:
- Setup Instructions
- Diagram
- Training Playlist
- Pregame Checklist
- How to Tune Your Network
- Keys to Success
Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.
Please make note of the following:
- Your Kit# is found on the outside of your toolbox
- The username and password for your app is found in your SkyCoach Training email
- The wifi access codes for your kit are found in your SkyCoach Training email
- This is your model# 4AC1MPHGR-3P3RP-2WT-CRP
- Your kit style is a Platinum Plus Coach's Replay, PressBox Only
Platinum Plus Coach's Replay, PressBox Only
4AC1MPHGR-3P3RP-2WT-CRP

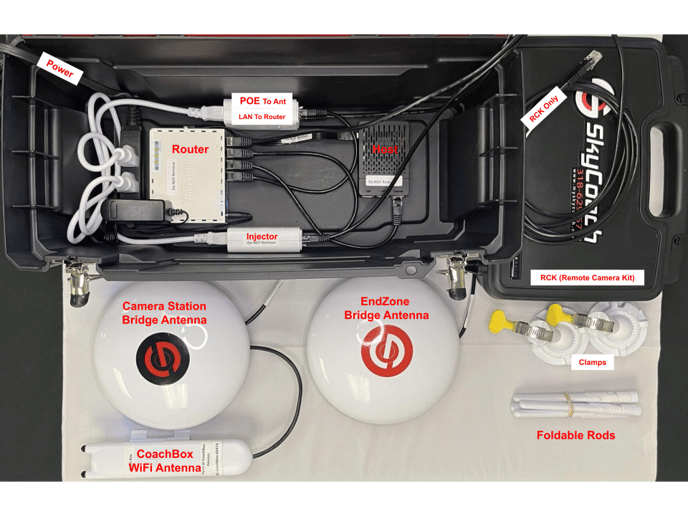

HOST BOX (brains)
PRESS BOX STATION: 1 host box, 2 bridge antennas, 1 mesh access point
You will need 1 power outlet: one to power the host box. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. These items will stay with the filmer.
Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.
* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room when placed in the room with the coaches.
- 1 AC red/white stickered antenna to bridge to the EndZone
- 1 AC red/black stickered antenna to bridge to the Camera Staation
- 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box for coaches
- SC-CoachBox-XXXXX
- 1 green gigabit router
- 1 Pi host server
STATION BOX (field equipment)
END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube
You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label.
You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.
* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.
- 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
- 1 ethernet cable for your RCK
- 1 powertube

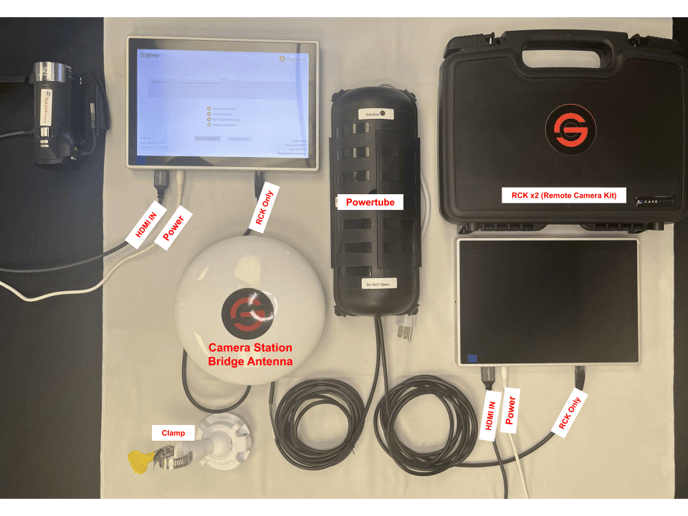

CAMERA STATION: 1 bridge antenna, 2 RCKs, 1 powertube
You will need 3 power outlets: one for the powertube and two to power the RCKs. The round antenna will point at the matching press box antenna as indicated by the label.
The red/black round bridge antenna will mount to one of the stands or your camera stand. Be sure the antenna has a clear and straight line of sight with no obstructions and especially clear of any window sills or camera equipment.
- 1 AC red/black stickered antenna to bridge to pressbox
- 2 ethernet cable sfor your RCKs
- 1 powertube
1 POWER SUPPLY for this model:
Powertube
- Powertube with 1 white POE injector
- The cables crossover to exit
-
The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
- The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
RCK Pro (Remote Camera Kit)
Power the RCK.- Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
- Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.
Once you get all 4 check marks on the RCK you can join the event.
ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

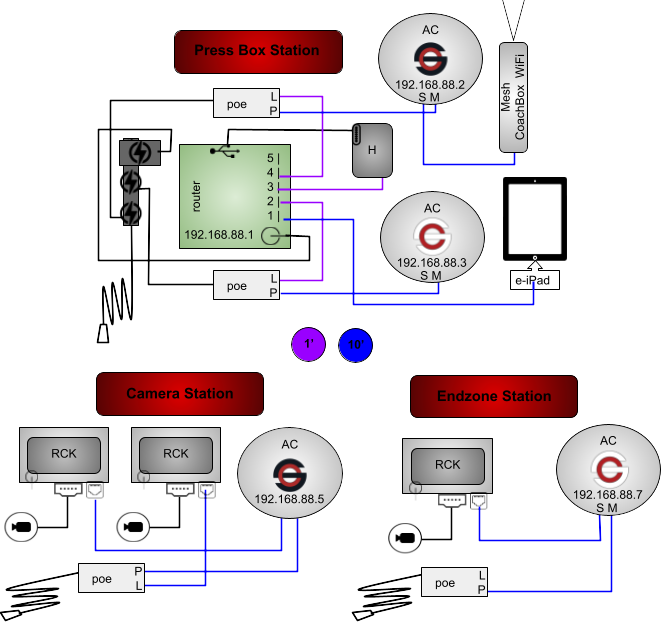

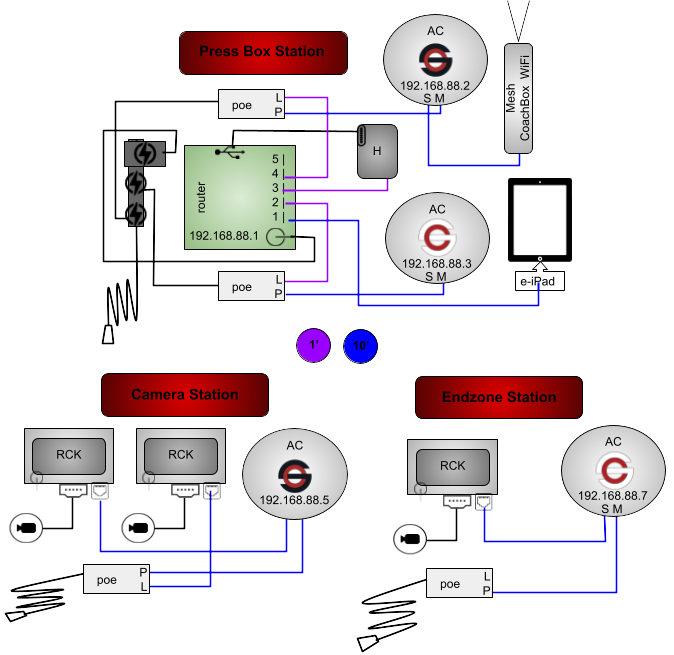

Platinum Plus Coach's Replay, PressBox Only
(with CoachBox bridge)
4AC1MPHGR-3P3RP-2WT-CRP
* The above configuration is used for games when the filmers and press box coaches are on the OPPOSITE sides of the field. The PressBox station will stay with the coaches.
Looks like this is an original diagram where coaches keep host box and send camera station goes with the filmer. Ask Keith if we will use this model again.
