Platinum Plus Official's Replay, Gen / 4AC1MPHGR-3P3RP-2WT-GOR

This kit has 3 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the station equipment is located in the StationBox.

PAGE SHORTCUTS:

• Host Box, Station Box
• PressBox Station, RB Station, RW Station
• Power Supply
• RCK (Remote Camera Kit)

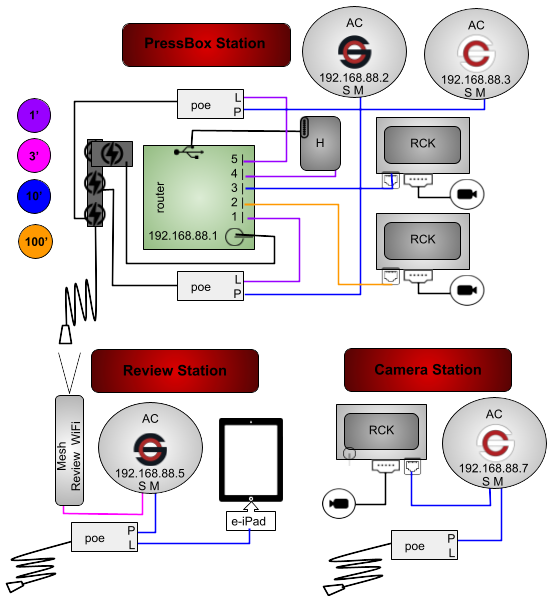

• Diagram
• Training Link
• QR & Overview

PARTS:

• 3 stations: PressBox Station, Review Station, Camera Station
• Pi Host and Green Gigabit Router
• 4 AC Bridge Antennas
• 1 Mesh Review AP for officials
• 3 Remote Camera Kits
• 2 powertubes white

HELPFUL LINKS:

• Setup Instructions, User Guide   [review and combine the 2 files into most recent]
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 4AC1MPHGR-3P3RP-2WT-GOR
• Your kit style is a Platinum Plus Official's Replay Gen

TOP

Platinum Plus Official's Replay, Gen

4AC1MPHGR-3P3RP-2WT-GOR

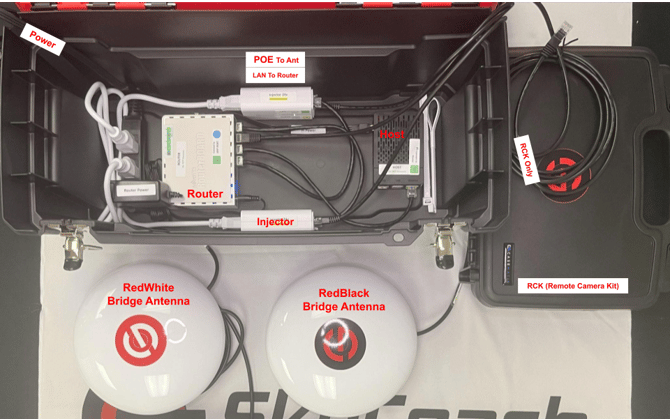

HOST BOX (brains)

PRESS BOX STATION: 1 host box, 2 RCKs, 2 bridge antennas

You will need 3 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at their counterpart as indicated by their labels. The host box and RCKs will stay with the filmer.

You can use a long ethernet cable to run from the LAN2 port on either round bridge antenna to the skinny mesh review access point. Attach the foldable rods to the top of the mesh antenna and place it at the score table.

* The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the officials and will ensure fastest download speeds when placed near the review iPad.

• 1 AC red/black stickered antenna to bridge to matching antenna
• 1 AC red/white stickered antenna to bridge to matching antenna
• 2 ethernet cables for your RCKs

• 1 green gigabit router

• 1 Pi host server

TOP

STATION BOX (field equipment)

REVIEW STATION: 1 bridge antenna, 1 mesh access point, 1 powertube

You will need 1 power outlet for the powertube.

Mount the round antenna to one of the stands and place it at the review table. The round bridge antenna will point at the matching host box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the officials and will ensure fastest download speeds when placed on the score table near the review iPad.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to request direct connection.

• 1 AC red/black stickered antenna to bridge to the host box
• 1 Mesh Review-WiFi antenna to connect to official's device
  • SC-Review-XXXXX for the score table
• 1 white powertube

CAMERA STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the basketball goals.

• 1 AC red/white stickered antenna to bridge to the host box

• 1 ethernet cable for your RCK

• 1 white powertube

TOP

1 POWER SUPPLY type for this model:

Powertube

• Powertube with 1 white POE injector
• The cables crossover to exit

• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

• The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

TOP

RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP

Platinum Plus Official's Replay, Gen

4AC1MPHGR-3P3RP-2WT-GOR

TOP
