Platinum Official's Replay, Gen / 4AC1MPHGRBS-3P2R-2BT-GOR

This kit has 3 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the station equipment is located in the Stationbox.



PAGE SHORTCUTS:

• Host Box, Station Box
• Review Station, RB Station, RW Station
• Power Supply
• RCK (Remote Camera Kit)

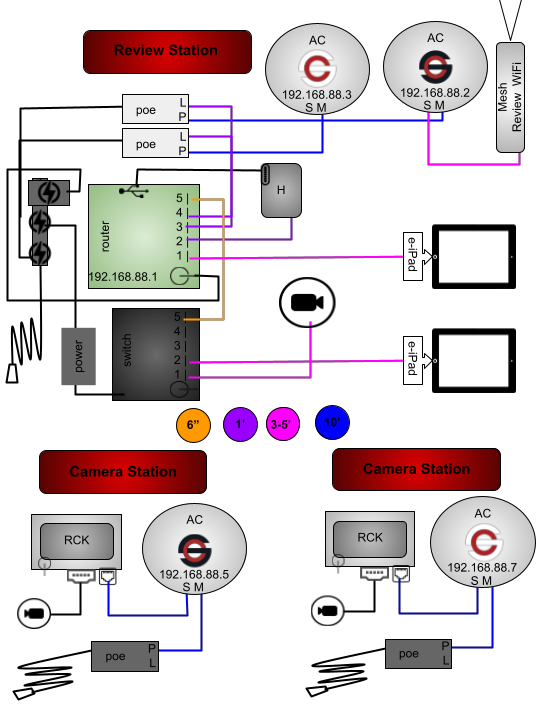

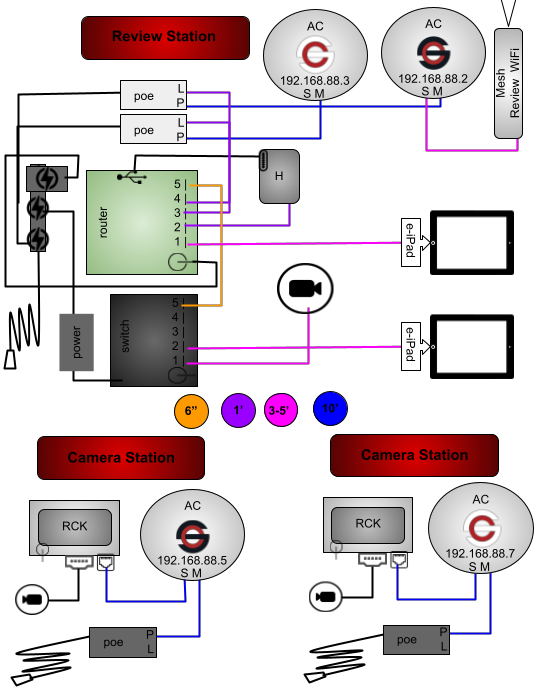

• Diagram
• Training Link
• QR & Overview

PARTS:

• 3 stations: Review Station, 2 Camera Stations
• Pi Host, Green Gigabit Router and Black Switch
• 4 AC Bridge Antennas
• 1 Mesh Review AP for officials
• 2 Remote Camera Kits
• 2 powertubes black

HELPFUL LINKS:

• Setup Instructions, User Guide,

  User Guide

  [review and combine the 2 files into most recent]
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success



Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 4AC1MPHGRYS-3P2R-2BT-GOR
• Your kit style is a Platinum Official's Replay Gen

TOP



Platinum Official's Replay, Gen

4AC1MPHGRBS-3P2R-2BT-GOR

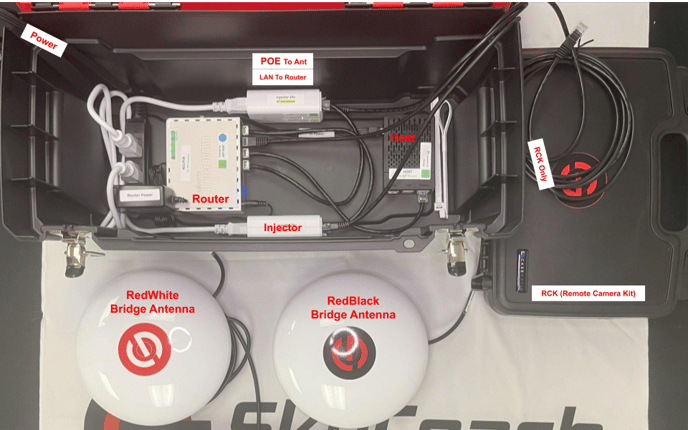

HOST BOX (brains)



REVIEW STATION: 1 host box, 2 RCKs, 2 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

You can use a long ethernet cable to run from the LAN2 port on either round bridge antenna to the skinny mesh review access point. Attach the foldable rods to the top of the mesh antenna and place it at the score table.

* The "skinny rabbit ear" mesh antenna provides the SC-Review-WiFi access for the officials and will ensure fastest download speeds when placed near the review iPad.

[need pic with rev-wifi]

• 1 AC red/black stickered antenna to bridge to matching antenna
• 1 AC red/white stickered antenna to bridge to matching antenna
• 1 Mesh Review-WiFi antenna to connect to official's device
  • SC-Review-XXXXX for the score table
• 1 ethernet cables for your RCK

• 1 green gigabit router & 1 black switch

• 1 Pi host server

TOP



STATION BOX (field equipment)



CAMERA STATIONS: 1 bridge antenna, 1 RCK, 1 powertube (repeat for red/black and red/white)

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching host box antenna as indicated by the label.

*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the basketball goals.

• 1 AC red/black stickered antenna to bridge to the host box
• 1 AC red/white stickered antenna to bridge to the host box

• 1 ethernet cable for your RCK

• 1 black powertube

TOP



1 POWER SUPPLY type for this model:



Black Powertube [need pic with b.poe]

• Powertube with 1 black POE injector
• The cables crossover to exit

• The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

• The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network

TOP



RCK V1 (Remote Camera Kit)   [need pic with V1]

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP
