Platinum Coach's Replay/ 4AC1M1MPHGR-3P2R-2WT-CR

PAGE SHORTCUTS:

• Host Box, Station Box
• Power Supply
• RCK (Remote Camera Kit)
• Diagram
• Training Link
• QR & Overview

PARTS:

• 3 stations: PressBox EndZone
• Pi Host and Green Gigabit Router
• 4 AC Bridge Antennas: RW, BW
• 1 Mesh CoachBox AP
• 2 Remote Camera Kits
• 2 powertube

HELPFUL LINKS:   [CHECK setup instructions]

• Setup Instructions
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success



Please make note of the following:

• Your Kit# is found on the outside of your toolbox
• The username and password for your app is found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 4AC1M1MPHGR-3P2RP-2WT-CR
• Your kit style is a Platinum Coach Replay, PressBox Only

TOP



Platinum Coach Replay, PressBox Only

4AC1MPHGR-3P2RP-2WT-CRP (with bridge)



HOST BOX (brains)

PRESS BOX STATION: 1 host box, 1 RCK, 2 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCKs will stay with the filmer.

Use a long ethernet cable to run from the POE24 port on your injector to the mesh CoachBox access point (the skinny "bunny ear" antenna). Attach the foldable rods to the top of the mesh antenna.

* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room with the coaches.

• 1 AC red/white stickered antenna to bridge to the EndZone
  • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
    (this bunny will move to the coachbox station when coaches are across the field)
    • SC-CoachBox-XXXXX
• 1 ethernet cable for your RCK
• 1 green gigabit router
• 1 Pi host server

TOP



STATION BOX (field equipment)



END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

* Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox
  • 1 ethernet cable for your RCK
• 1 powertube

TOP



1 POWER SUPPLY for this model:



Powertube

• 1 white POE injector
  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

TOP



RCK Pro (Remote Camera Kit)

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.

TOP

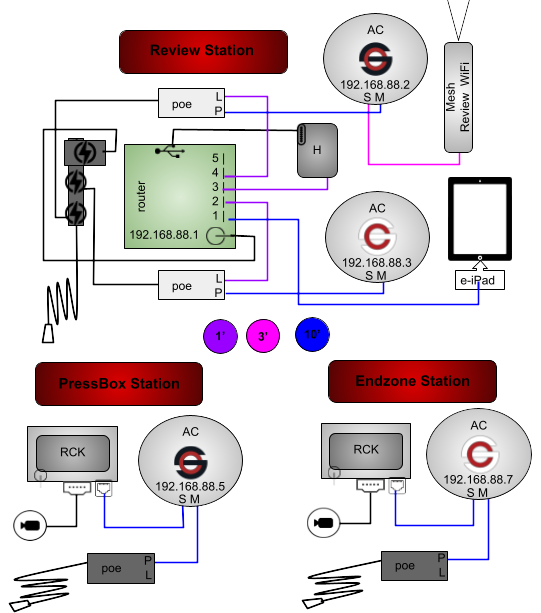

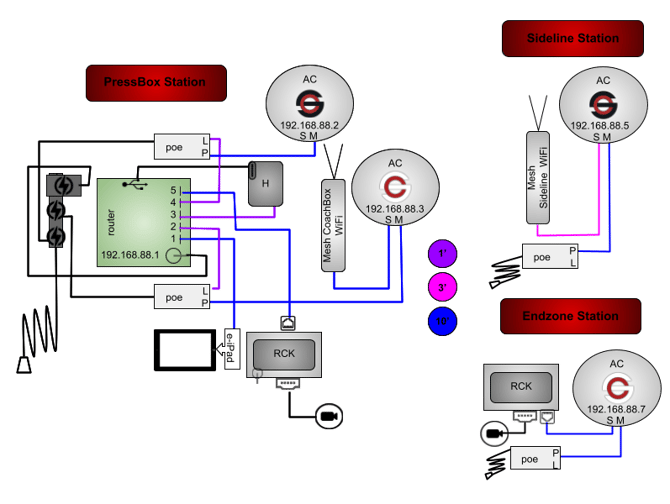

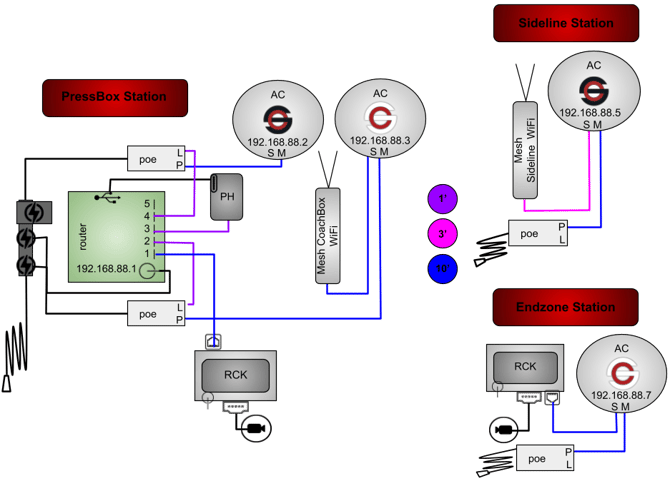

Platinum Coach's Replay

4AC1M1MPHGR-3P2RP-2WT-CR

* The above configuration is used for games when the filmers and press box coaches are on OPPOSITE sides of the field.
