3 Parts To Set Up Your Kit



 Diamond Coach Replay Shared

 6AC(RB,RW,RWB)2M2U7NHGR-4P2RP-1WT2SB2SBUPE-CRSH

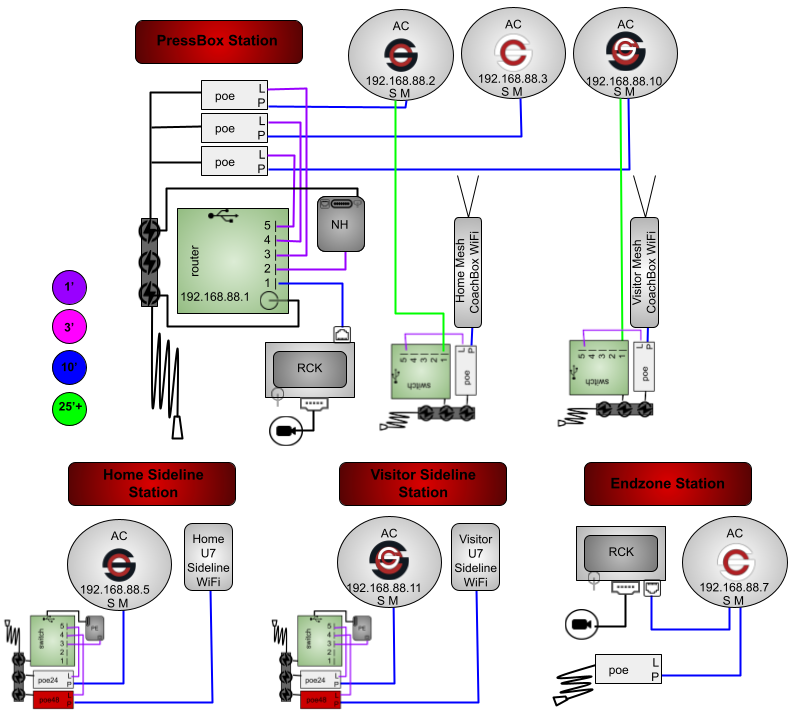

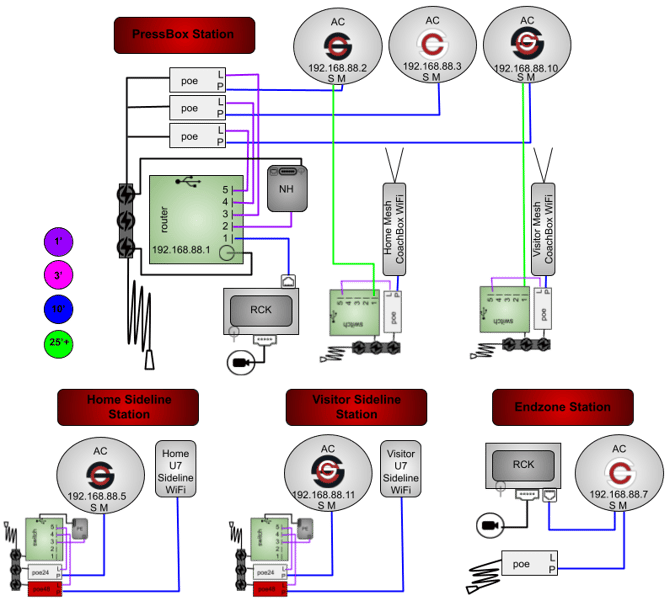

HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 3 bridge antennas, 2 mesh access points, 2 switchboxes

You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your home/visitor round bridge antenna to the respective home/visitor coach room and connect to switchbox PORT1 containing the coachbox access point.

• 1 AC red/black stickered antenna to bridge to the Home Sideline Station
  • connect to home coach room switchbox

• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station
  • connect to visitor coach room switchbox

• 1 AC red/white stickered antenna to bridge to the EndZone Station
• 1 ethernet cable for your RCK

• 1 green gigabit router

• 1 Nuc host server

Home/Visitor switchboxes connect to the PressBox Station

There are two switchboxes with your pressbox equipment, one for home coachbox and one for visitor coachbox. These will be powered in your respective home and visitor coach rooms.

Use a long ethernet cable (pictured on the cable winder in the top left corner of the photos) to run from the LAN2 port on your Home/Visitor round bridge antenna to PORT 1 on your Home/Visitor CoachBox switch, as pictured below.

* The LAN2 port on your Home/Visitor bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fast download speeds when placed in the coach rooms.



• 1 mesh CoachBox-WiFi antenna to connect to devices in the home coach room
  • SCH-CoachBox-XXXXX with switchbox for the home coach booth
• 1 mesh CoachBox-WiFi antenna to connect to devices in the visitor coach room
  • SCV-CoachBox-XXXXX with switchbox for the visitor coach booth
• 2 switchboxes

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 U7 access point, 1 Switchbox Ultra PE (repeat for home and visitor)

[Insert Pictures here]

You will need 1 power outlet for each sideline power supply: home and visitor switchbox ultra. Mount the antenna to one of the stands and place it at the 35 yard line. The stand should be extended high so the antennas are not obstructed by the players.

The rectangular U7 antenna is directional and should be pointed down the sideline/player's box towards the ios devices. This provides the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly to the network via an ethernet adapter and switch port. Your switchbox ultra provides 3 ethernet access points.

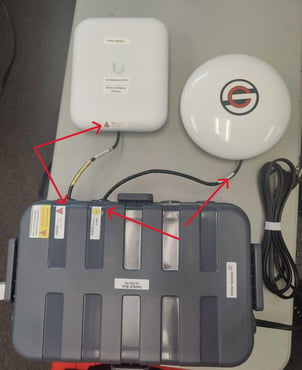

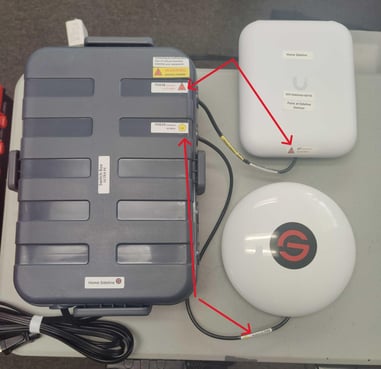

The POE 24v will connect to the main port on the round antenna, also labeled.

[insert pictures here]

• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
• 2 U7 Sideline-WiFi antennas & 2 switchbox ultra fibers to connect to devices on the sideline
  • SCH-Sideline-XXXXX with switchbox ultra fiber for the home sideline iPads
  • SCV-Sideline-XXXXX with switchbox ultra fiber for the visitor sideline iPads

TOP

3 POWER SUPPLY types for this model:

Powertube

• 1 white POE injector
  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

Switchbox

• 1 white POE injector

  • LAN connects to switch
  • The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the Mesh SC-CoachBox-WiFi bunny antenna
• 1 green switch
  • PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box
  • The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
• The cables exit through designated slots

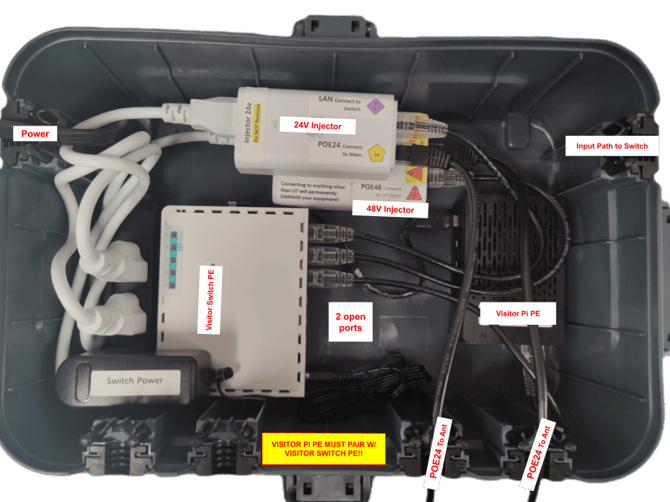

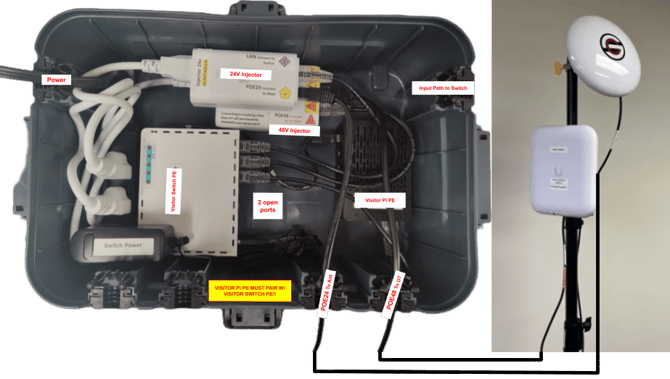

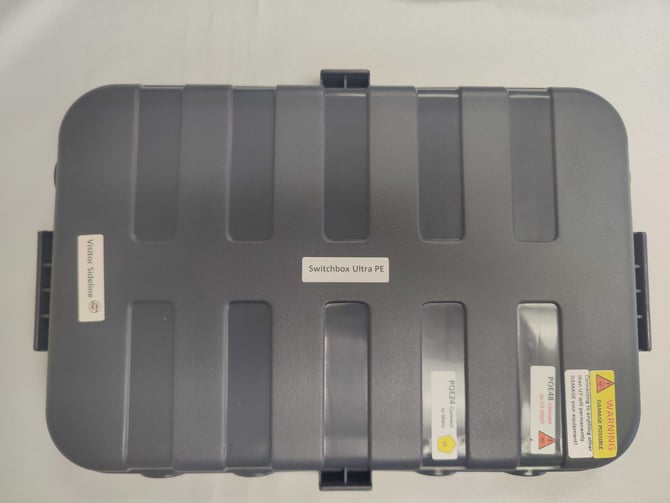

Switchbox Ultra PE (1x 24v, 1x 48v, switch, Pi PE)

Home or Visitor Sideline (connects to LAN2 on round ant)
**VERY IMPORTANT** Switch and Pi  PE must BOTH be Home or Visitor, DO NOT pair a Home Pi PE with a Visitor Switch PE or vice versa

TOP

You have completed Part A (Setting Up Network)
