Diamond Coach Replay Shared / 6AC(RB,RW,RWB)2M2U7NHGR-4P2RP-1WT2SBUPE-CRSH

PAGE SHORTCUTS:

• Host Box, Station Box
• 3 Setup Parts

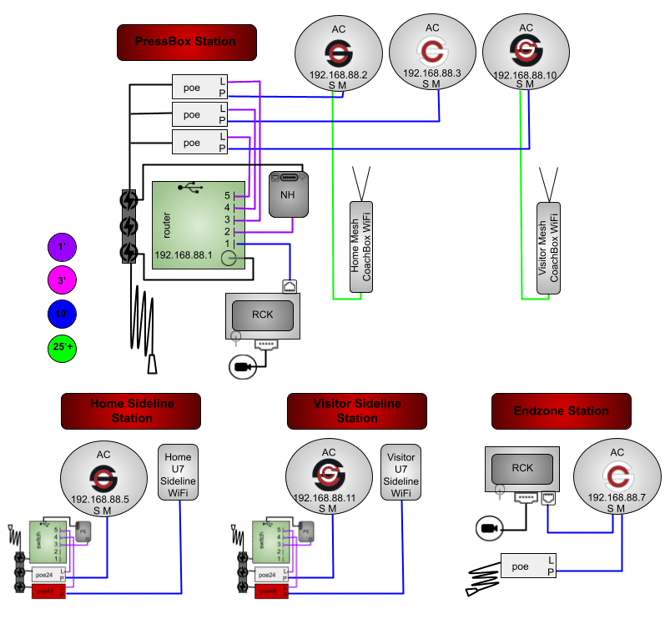

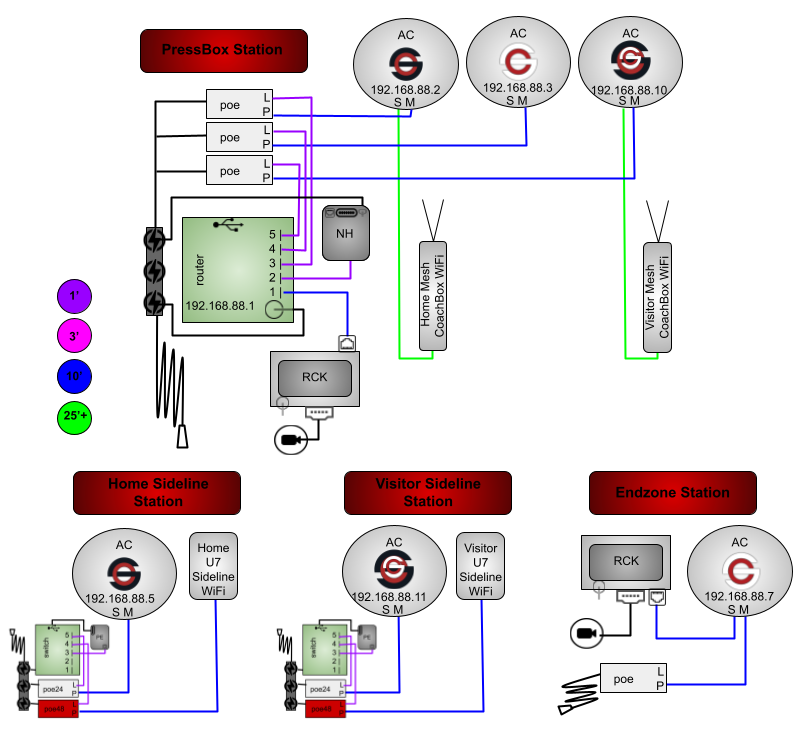

• Diagram
• Power Supply
• Training Link
• QR & Overview

PARTS:

• 4 Stations: PressBox, CoachRooms, Home Sideline, Visitor Sideline, EndZone
• 1 Nuc Host
• 1 Green Gigabit Router
• 2 Mesh CoachBox APs
• 2 U7 Sideline APs
• 2 Remote Camera Kits
• 1 powertube
• 2 Switchbox Ultra PE

HELPFUL LINKS:

• Setup Instructions
• Diagram
• Pregame Checklist
• How to Tune Your Network
• Keys to Success



Please make note of the following:

• Your Kit# is found on the outside of your toolbox
• The username and password for your app are found in your SkyCoach Training email
• The wifi codes for your kit is found in your SkyCoach Training email
• This is your model#: 6AC(RB,RW,RWB)2M2U7NHGR-4P2RP-1WT2SBUPE-CRSH
• Your kit style is a Diamond Coach Replay Shared

TOP



3 Parts To Set Up Your Kit



Diamond Coach Replay Shared

6AC(RB,RW,RWB)2M2U7NHGR-4P2RP-1WT2SBUPE-CRSH

HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 3 bridge antennas, 2 mesh access points

You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your home/visitor round bridge antenna to the respective mesh home/visitor coachbox access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The "skinny rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the home/visitor coachbox iPads and will ensure fastest download speeds when placed in the room.

• 1 green gigabit router
  • 1 Pi host server
  • 1 ethernet cable for your RCK
  • 3 ethernet cables connected to LAN port on each injector
• 1 AC red/black stickered antenna to bridge to the Home Sideline Station, connected from the POE24 port of injector to the Main port of antenna
  • 1 Mesh CoachBox-WiFi antennas to connect to devices in the press box
  • This is connected to the LAN2 port of the red/black round antenna

    • SCH-CoachBox-XXXXX for the home coach booth
• 1 AC red/white/black stickered antenna to bridge to the Visitor Sideline Station, connected from the POE24 port of injector to the Main port of antenna
  • 1 Mesh CoachBox-WiFi antennas to connect to devices in the press box
  • This is connected to the LAN2 port of the red/white/black round antenna

    • SCV-CoachBox-XXXXX for the visitor coach booth

• 1 AC red/white stickered antenna to bridge to the EndZone Station, connected from the POE24 port of injector to the Main port of antenna

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 U7 access point, 1 Switchbox Ultra PE (repeat for home and visitor)

Pictures of the home station (RB) and the visitor station (RWB) are below. The arrows in the pictures show which ethernet cable powers each antenna without damaging equipment.

You will need 1 power outlet for each sideline power supply: home and visitor switchbox ultra PE. Mount the antenna to one of the stands and place it at the 35 yard line. The stand should be extended high so the antennas are not obstructed by the players.

The rectangular U7 antenna is directional and should be pointed down the sideline/player's box towards the ios devices. This provides the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly to the network via an ethernet adapter and switch port. Your switchbox ultra provides 3 ethernet access points.

The POE 24v will connect to the main port on the round antenna, also labeled.



• 1 AC red/black stickered antenna for home sideline to bridge to the pressbox
• 1 AC red/white/black stickered antenna for visitor sideline to bridge to the pressbox
• 2 U7 Sideline-WiFi antennas & 2 switchbox ultra PEs to connect to devices on the sideline
  • SCH-Sideline-XXXXX with switchbox ultra PE for the home sideline iPads
  • SCV-Sideline-XXXXX with switchbox ultra PE for the visitor sideline iPads

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

• 1 powertube
  • 1 AC red/white stickered antenna in the end zone to bridge to the pressbox, connected from the POE24 port of the powertube injector to the Main port of the antenna
    • 1 ethernet cable for your RCK, connected to LAN2 port of the red/white round antenna

TOP

2 POWER SUPPLY types for this model:

Powertube

• 1 white POE injector
  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna
  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

Switchbox Ultra PE (1x 24v, 1x 48v, switch, Pi PE)

Home or Visitor Sideline (connects to LAN2 on round ant)
**VERY IMPORTANT** Switch and Pi  PE must BOTH be Home or Visitor, DO NOT pair a Home Pi PE with a Visitor Switch PE or vice versa

TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)
