Diamond Coach Replay / 6AC(RB,RW,SKY)1M1M51U7PHGR-4P2RP-2WT1PBU

This kit has 4 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.

PAGE SHORTCUTS:

PARTS:

HELPFUL LINKS:

Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

Please make note of the following:

  • Your Kit# is found on the outside of your toolbox
  • The username and password for your app are found in your SkyCoach Training email
  • The wifi access codes for your kit are found in your SkyCoach Training email
  • This is your model#: 6AC(RB,RW,SKY)1M1M51U7PHGR-4P2RP-2WT1PBU
  • Your kit style is a Diamond Coach Replay

TOP

3 Parts To Set Up Your Kit

A. Set Up your Network

Click here to go to the network section.

B. Set Up Your Remote Camera Kit (RCK)

Click here to go to the RCK Setup Page. (4 steps)

C. Set Up Your iPad

Click here to go to the iPad Setup Page. (4 stages)

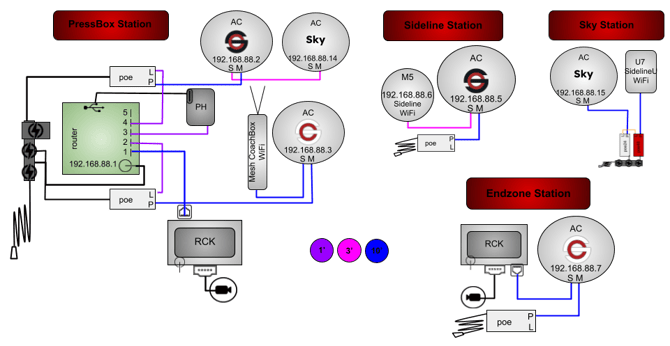

Diamond Coach Replay

6AC(RB,RW,SKY)1M1M51U7PHGR-4P2RP-2WT1PBU

HOST BOX (brains)

PRESS BOX STATION:

TOP

STATION BOX (field equipment)

SIDELINE STATIONS: 1 bridge antenna, 1 M5 access point, 1 powertube

You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

Screenshot 2024-12-30 174605-1The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The round antenna with no logo should be pointed down the sideline towards the ios devices. This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

IMG_3741_sidelineACM5

  • 1 AC red/black stickered antenna to bridge to pressbox and power the
  • 1 M5 Sideline-WiFi antenna that connects to devices on the sideline
    • SC-Sideline-XXXXX

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK,  1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

EZ station RW, RP, WT - labeled

  • 1 AC red/white stickered antenna in the end zone to bridge to the pressbox

  • 1 ethernet cable for your RCK

  • 1 powertube

TOP

SKY STATION: 1 bridge antenna, 1 powerbox ULTRA, 1 U7 sideline AP

You will need 1 power outlet for each sideline power supply. Mount the 2 antennas to one of the stands and place it at the 35 yard line. The stand should be extended high so the antennas are not obstructed by the players.

u7 sideline station on pole - IMG_3546The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions. Be sure to adjust the angle on the round antenna to point up at the matching antenna.

The rectangular U7 antenna is directional and should be pointed down the sideline/player's box towards the ios devices. This provides the SCH- and SCV-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly to the network via an ethernet adapter and powerbox port.

WARNING: Connecting the POE 48v to anything other than the U7 WiFi antenna will permanently damage the device!!!

Please proceed with extreme caution in the event you ever change the ethernet. We have labeled our ethernets to aid in care of the equipment.

The POE 24v will connect to the main port on the round antenna, also labeled.

powerbox ultra inside diagram

  • 1 AC SKY stickered antenna for home sideline to bridge to the pressbox
  • 1 U7 Sideline-WiFi antennas & powerbox ultra to connect to devices on the sideline
    • SCH-Sideline-XXXXX with powerbox ultra for the home sideline iPads

TOP

2 POWER SUPPLY types for this model:

Powertube

open-powertube

  • Powertube with 1 white POE injector

    • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

    • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
  • The cables crossover to exit



Powerbox ULTRA

 Powerbox ULTRA (inside) cropped-1

  • 1 white 24V POE injector

    • The red POE24 port on the injector uses a 10' ethernet cable to connect to the main port on the round antenna
  • 1 white 48V POE injector
    • The red POE48 port on the injector uses an ethernet cable *labeled with a 48v warning sticker to connect to the IP camera
  • The LAN ports on the injectors connect to each other with a 6" ethernet
  • The cables crossover to exit

 WARNING: Connecting the POE 48v to anything other than the IP Camera will fry whatever you connect it to!!!


TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)
