Diamond Coach Replay / 6AC1M1MDPHGR-4P2R-3WT-CR

PAGE SHORTCUTS:

• Host Box, Station Box
• Power Supply
• RCK (Remote Camera Kit)
• Diagram 1 (without bridge) & Diagram 2 (with bridge)
• Training Link
• QR & Overview

PARTS:

• 4 Stations: PressBox, Sideline, EndZone, CoachBox
• Pi Host and Green Gigabit Router
• 6 AC Bridge Antennas: RB, RW, BW
• 1 Mesh CoachBox AP
• 1 Mesh-UMAD Sideline AP
• 2 Remote Camera Kits
• 3 Powertubes

HELPFUL LINKS:

• Setup Instructions, User Guide  Setup Instructions   [review and combine the 2 files into most recent]
• Diagram
• Training Playlist
• Pregame Checklist
• How to Tune Your Network
• Keys to Success

Please make note of the following:

• Your Kit# found on the outside of your toolbox
• The username and password for your app found in your SkyCoach Training email
• The wifi access codes for your kit are found in your SkyCoach Training email
• This is your model# 6AC1M1MDPHGR-4P2R-3WT-CR
• Your kit style is a Diamond Coach Replay

TOP

Diamond Coach Replay

6AC1M1MDPHGR-4P2R-3WT-CR

HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 3 bridge antennas, 1 mesh access point

You will need 2 power outlets: one to power the host box and one to power the RCK. The 3 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Scenario 1 (without bridge): Filmers and pressbox coaches are in the same building -

Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the coach room for the coachbox-wifi "bunny"

Scenario 2 (with bridge): Filmers and pressbox coaches are on opposite sides of the field in different buildings -

Piggy back the main port on the black/white round bridge antenna to the red/white LAN2 port and move the coachbox-wifi "bunny" to the black white station

• 1 green gigabit router
  • 1 AC red/black stickered antenna to bridge to the Sideline Station

• • 1 AC red/white stickered antenna to bridge to the EndZone Station
    • Scenario 1 (without bridge): connect to the LAN2 port on the red/white round bridge antenna 1 Mesh CoachBox-WiFi antenna, SC-CoachBox-XXXXX for the home coach booth
    • Scenario 2 (with bridge): connect the main port on the black/white round bridge antenna to the LAN2 port on the red/white round bridge antenna
  • 1 ethernet cable for your RCK

  • 1 Pi host server

TOP

STATION BOX (field equipment)

SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 powertube

You will need 1 power outlet for the sideline power supply. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

The round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the directional booster and should be pointed down the sideline towards the ios devices. These provide the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please contact SkyCoach support if you would like to discuss hardwiring iPad access on the sideline.

• 1 AC red/black stickered antenna to bridge to pressbox and power the
  • 1 Mesh-UMAD Sideline-WiFi antenna that connects to devices on the sideline
    • SC-Sideline-XXXXX for sideline iPads
• 1 Powertube

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK, 1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK, both pictured below. The antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with no obstructions and avoiding the field goal post.

• 1 AC red/white stickered antenna in the end zone to bridge to the pressbox

  • 1 ethernet cable for your RCK

• 1 powertube

TOP

COACHBOX STATION: 1 bridge antenna, 1 mesh access point, 1 powertube

You will only use the coachbox station when the filmers and pressbox coaches are on opposite sides of the field, scenario 2 (with bridge). The filmer will keep the host box and RCK while the coaches will use the coachbox station. This scenario will use the coachbox bridge.

1. IN THE HOST BOX: Remove the ethernet from the SC-CoachBox-WiFi "bunny ear" antenna and connect it to the main port on the black/white round bridge antenna labeled "PressBox, Point at CoachBox". See the host box picture in the host box section of this page
2. IN THE COACHBOX STATION: Attach the SC-CoachBox-WiFi bunny to the secondary LAN2 port on the black/white round station antenna labeled "CoachBox, Point at PressBox". See the picture below

* The "skinny rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds.

• 1 AC black/white stickered antenna in the coach box to bridge to the pressbox
  • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
    • SC-CoachBox-XXXXX
    • this WiFi bunny will move to the press box station when coaches are on the same side of field as the filmers
      • remove the BW antenna in the host box and replace with the coachbox-wifi "bunny"
• 1 powertube

TOP

Platinum Coach Replay

4AC1M1MDPHGR-3P2R-2WT-CR

(without CoachBox bridge)

* The above configuration is used for games when the filmers and press box coaches are on the SAME side of the field.

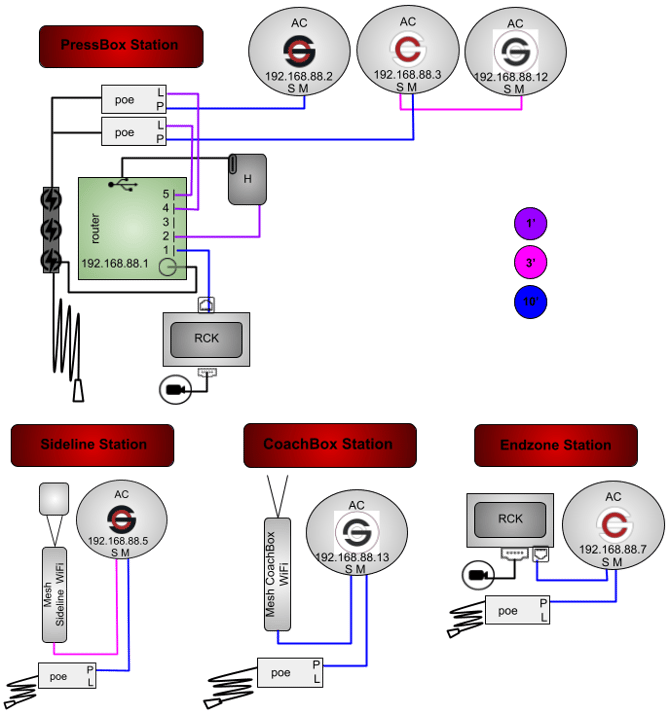

Diamond Coach Replay

6AC1M1MDPHGR-4P2R-3WT-CR

(with CoachBox bridge)

* The above configuration is used for games when the filmers and press box coaches are on OPPOSITE sides of the field.

POWER SUPPLY for this model:

Powertube

• 1 white POE injector
  • The red POE24 port on the injector uses a 10' ethernet cable to connect to the main port on the antenna
  • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
• The cables crossover to exit

TOP

RCK V1 (Remote Camera Kit) [replace photo]

1. Power the RCK.
2. Connect the HDMI from camera to HDMI-IN port on the RCK to capture the camera feed.
3. Connect the ethernet labeled "RCK Only" to put the camera feed on the SkyCoach network.

Once you get all 4 check marks on the RCK you can join the event.

ONE person will clip the plays for the entire SkyCoach system by hitting the start circle and stop square. This person can clip plays from any ONE RCK or from a remote control iPad.
