Platinum Coach Replay / 4AC(RB,RW)1M1MDNHGR-3P2RP-2WT1SB-CR

This kit has 3 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.


PAGE SHORTCUTS:

PARTS:

HELPFUL LINKS:

Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers and your coaches. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

Please make note of the following:

  • Your Kit# found on the outside of your toolbox
  • The username and password for your app found in your SkyCoach Training email
  • The wifi access codes for your kit are found in your SkyCoach Training email
  • This is your model# 4AC1M1MDNHGR-3P2RP-2WT1SB-CR
  • Your kit style is a Platinum Coach's Replay

3 Parts To Set Up Your Kit

A. Set Up your Network

Click here to go to the network section.

B. Set Up Your Remote Camera Kit (RCK)

Click here to go to the RCK Setup Page. (4 steps)

C. Set Up Your iPad

Click here to go to the iPad Setup Page. (4 stages)

TOP

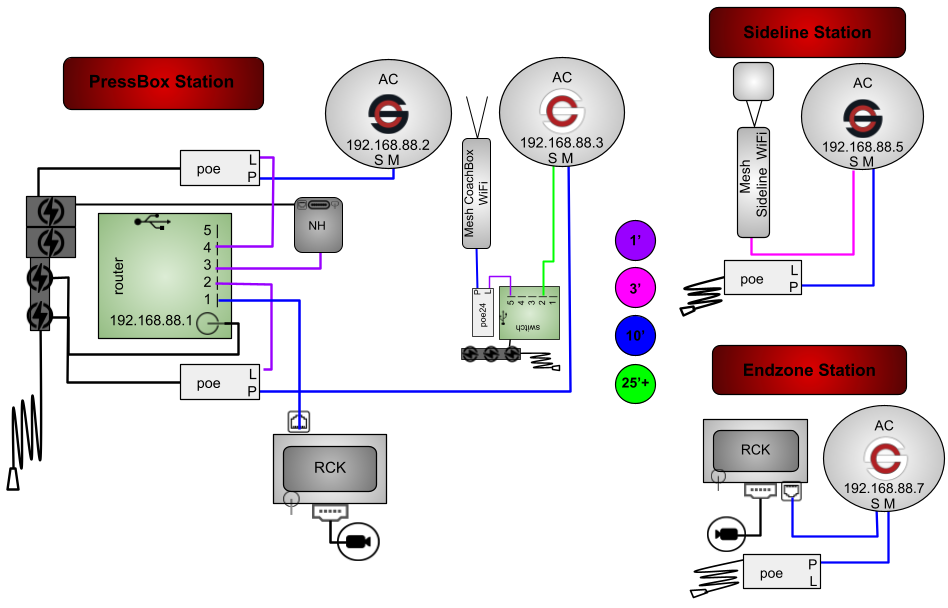

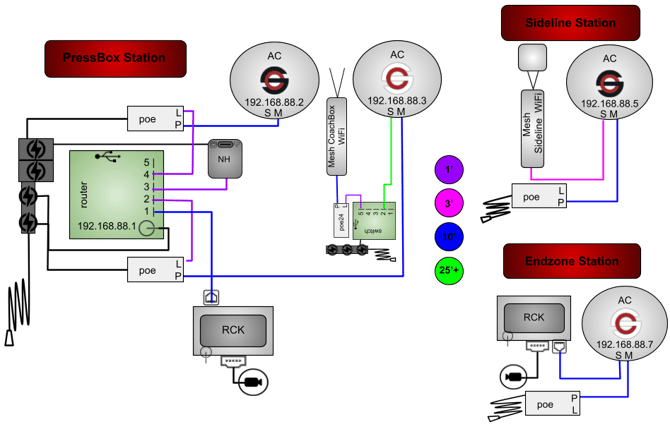

Platinum Coach Replay

4AC(RB,RW)1M1MDNHGR-3P2RP-2WT1SB-CR

ACMMDNHGRGS-3P2R-CR

HOST BOX (brains)

PRESSBOX STATION: 1 host box, 1 RCK, 2 bridge antennas, 1 mesh access point, 1 switchbox

You will need 2 power outlets: one to power the host box and one to power the RCK. The 2 round antennas will mount to one of your stands and point at the field as indicated by their labels. The host box and RCK will stay with the filmer.

Use a long ethernet cable to run from the LAN2 port on your red/white round bridge antenna to the mesh access point (the "skinny" antenna in the photo). Attach the foldable rods to the top of the mesh antenna and place it in the room with the coaches.

* The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room.

host box - RB RW NHGR - 1R 2poe - labeled

  • 1 green gigabit router
    • 1 Nuc host server
    • 1 ethernet cable for your RCK
    • 2 ethernet cables connected to LAN port on each injector
  • 1 AC red/black stickered antenna to bridge to the Sideline Station, connected from the POE24 port of injector to the Main port of antenna
  • 1 AC red/white stickered antenna to bridge to the EndZone Station, connected from the POE24 port of injector to the Main port of antenna
    • 1 switchbox, connected to the LAN2 port of the red/white round antenna
      • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
      • This is connected to the POE24 port of the switchbox injector
        • SC-CoachBox-XXXXX with switchbox for the home coach booth

Coach room switchbox is connected to the PressBox Station

There is one switchbox for the home coachbox. It will be powered in the coach room.

Use a long ethernet cable (pictured on the cable winder in the top left corner of the photos) to run from the LAN2 port on your red/white round bridge antenna to PORT 1 on your CoachBox switch, as pictured below.

* The LAN2 port on your red/white bridge antenna (the round antenna in the photo) is the port on the right when looking at the back of the antenna.

Attach the foldable rods to the top of the mesh WiFi antenna and place the switchbox and "skinny rabbit ear" antenna in the room with the coaches.

IMG_0644        Switchbox port 1 -labeled

*The skinny "rabbit ear" mesh antenna should be in the room with the coaches. This provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fast download speeds when placed in the coach room.

TOP

STATION BOX (field equipment)

SIDELINE STATION: 1 bridge antenna, 1 mesh-UMAD access point, 1 powertube

You will need 1 power outlet for the sideline powertube. Mount the 2 antennas to one of the stands and place it at the 35 yard line.

sidelineStationOnStandThe round bridge antenna will point at the matching press box antenna as indicated by the label. Be sure the antenna has a clear and straight line of sight with no obstructions.

The skinny mesh antenna requires the booster and should be pointed down the sideline towards the ios devices.  This provides the SC-Sideline-WiFi access for the sideline iPads and will ensure fast download speeds.

Any iPad can connect to the SkyCoach network via the provided access point ("WiFi") or connect directly via an ethernet adapter and switch port. Please talk to a SkyCoach team member to discuss direct connection on the sideline via powerbox+ power supply.

SL station RB MD -WT

  • 1 powertube
    • 1 AC red/black stickered antenna to bridge to pressbox and power the WiFi antenna, connected from the POE24 port of the powertube injector to the Main port of antenna
      • 1 Mesh-UMAD Sideline-WiFi antenna that connects to devices on the sideline
      • This is connected to the LAN2 port of the red/black round antenna
        • SC-Sideline-XXXXX

TOP

END ZONE STATION: 1 bridge antenna, 1 RCK,  1 powertube

You will need 2 power outlets: one for the powertube and one to power the RCK. The round antenna will point at the matching press box antenna as indicated by the label.

You can mount the red/white round bridge antenna to the leg of your end zone tripod or camera stand. Be creative or even switch the ethernet cable for a longer one to get the best position for your antenna.

*Be sure the antenna has a clear and straight line of sight with absolutely no obstructions and especially avoiding the field goal post.

EZ station RW, RP, WT - labeled

  • 1 powertube
    • 1 AC red/white stickered antenna in the end zone to bridge to the pressbox, connected from the POE24 port of the powertube injector to the Main port of the antenna

      • 1 ethernet cable for your RCK connected to LAN2 port of the red/white round antenna

TOP

2 POWER SUPPLY types for this model:

Powertube

open-powertube

  • Powertube with 1 white POE injector

    • The red POE24 port on the injector uses a 10' ethernet cable to connect to the Main port on the round antenna

    • The LAN port on the injector can be left empty OR connect a device (like RCK or iPad) to the network
  • The cables crossover to exit

Switchbox (for coach room)

switchbox power supply open labeled-2

  • Switchbox with 1 white POE injector

    • LAN connects to switch
    • The red POE24 port on the injector uses a 10' ethernet to connect the Main port on the Mesh SC-CoachBox-WiFi bunny antenna
    • PORT 1 on the switch uses a 100' ethernet to connect the LAN2 port on the round bridge antenna in the Host Box
    • The open switch ports can be left empty OR used to hardwire iPads to the network using an etherent adapter
  • The cables exit through designated slots

TOP

You have completed Part A (Setting Up Network)

Proceed to Part B (Setup RCK)

Proceed to Part C (Setup iPad)
