      Silver Plus Coach's Replay / 2AC1M1MPHGR-2P2RP-1WT-CR

      This kit has 2 stations and 2 remote camera kits. The press box equipment is located in the HostBox and the field equipment is located in the StationBox.

      original url said PlatPlus-2p-CRP >> we already have a page for this

      so let's make this page match the title: Silver Plus 3 Coach's Replay / 2AC1M1MPHGR-2P3RP-1WT-CR >> we do not have a page for that yet. I will change it to 2RP cause 3 does not make sense

      PAGE SHORTCUTS:

      PARTS:

      HELPFUL LINKS:   [CHECK setup instructions]

      Please schedule a training session with our specialist using THIS LINK. Have your SkyCoach equipment, cameras, and iPads available in an office/classroom setting. Invite your setup staff/helpers. Our trainer will walk you through setting up the equipment and running a game. Performance and pro tips will also be shared at this time.

      Please make note of the following:

      • Your Kit# is found on the outside of your toolbox
      • The username and password for your app is found in your SkyCoach Training email
      • The wifi access codes for your kit are found in your SkyCoach Training email
      • This is your model# 2AC1M1MPHGR-2P2RP-1WT-CR
      • Your kit style is a Silver Plus Coach's Replay

      TOP

      Silver Plus Coach's Replay

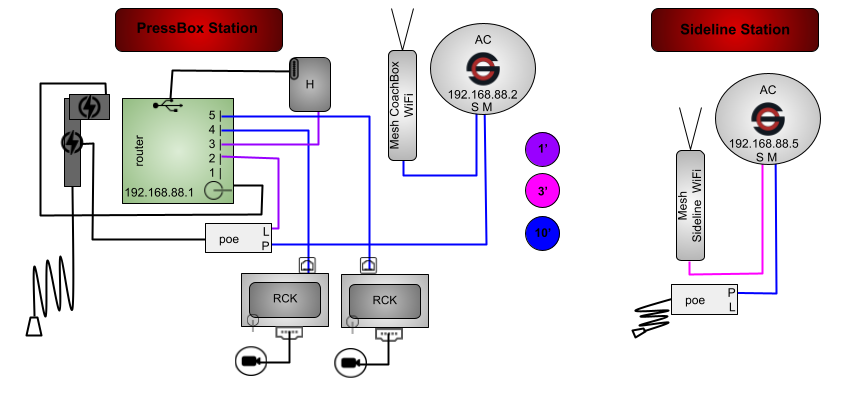

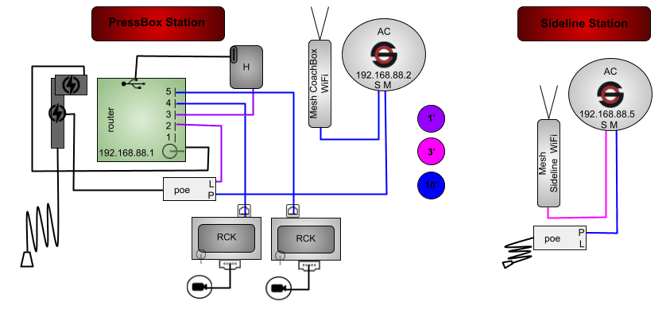

      2AC1M1MPHGR-2P2RP-1WT-CR

      HOST BOX (brains)

      PRESS BOX STATION: 1 host box, 2 RCKs, 1 bridge antenna, 1 mesh access point

      You will need 3 power outlets: one to power the host box and two to power the RCKs. The round antenna will mount to one of your stands and point at the field as indicated by its labels. The host box and RCKs will stay with the filmer.

      Use a long ethernet cable to run from the POE24 port on your injector to the mesh CoachBox access point (the skinny "bunny ear" antenna). Attach the foldable rods to the top of the mesh antenna.

      * The skinny "rabbit ear" mesh antenna provides the SC-CoachBox-WiFi access for the coachbox iPads and will ensure fastest download speeds when placed in the room with the coaches.

      [retake pic with parts and label]

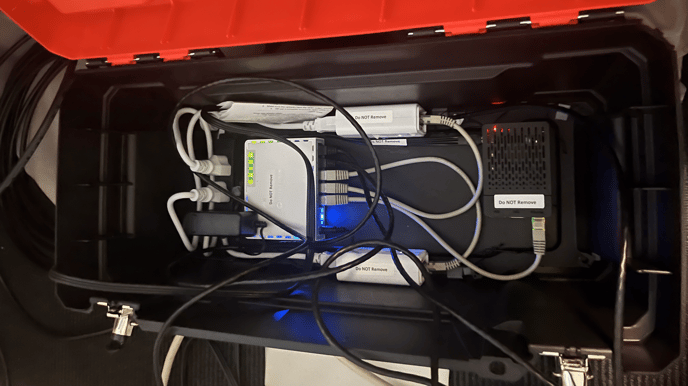

      IMG_0916-1

      • 1 AC red/black stickered antenna to bridge to the Sideline
      • 1 Mesh CoachBox-WiFi antenna to connect to devices in the press box
        • SC-CoachBox-XXXXX
      • 1 ethernet cable for your RCK
      • 1 green gigabit router
      • 1 Pi host server

      TOP

      STATION BOX (field equipment)

      SIDELINE STATION: 1 bridge antenna, 1 mesh access point, 1 powertube





      Shareables:

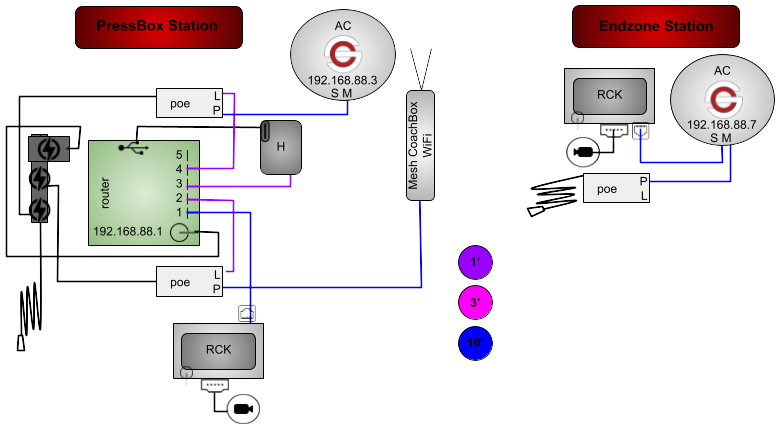

      ACMPHGR-2P3RP-CRP

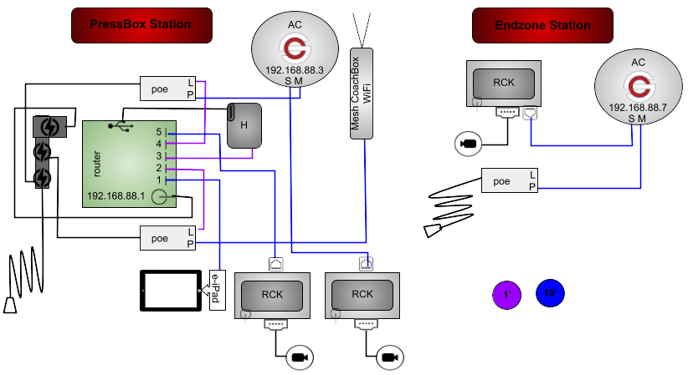

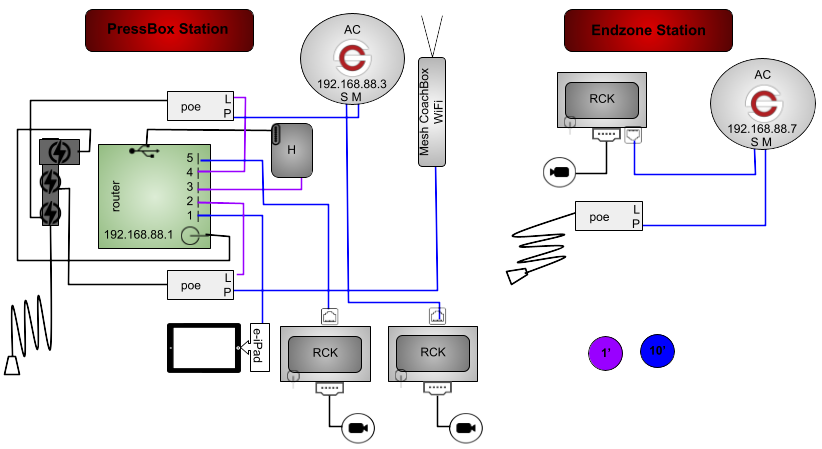

      ACMPHGR-2P3R-CRP



      Untitled drawing (2)
